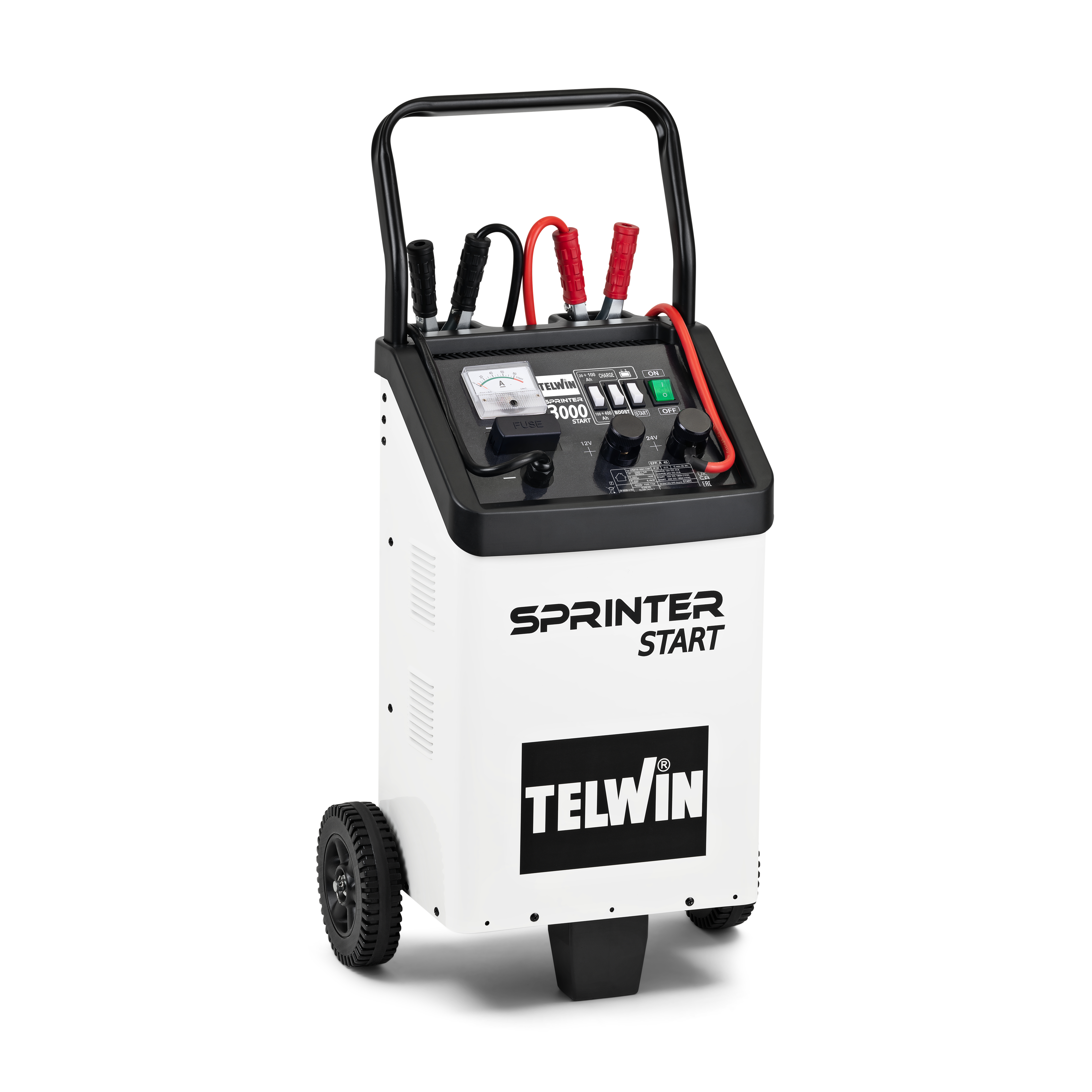

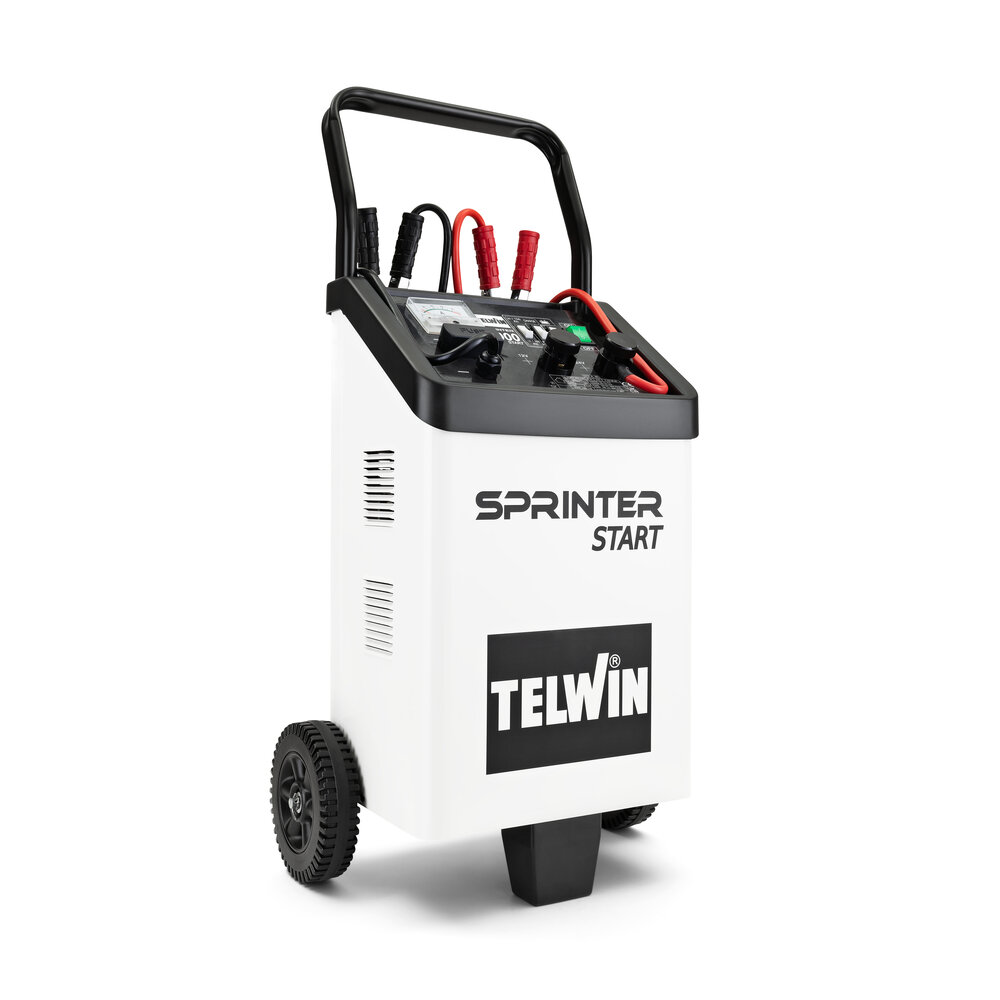

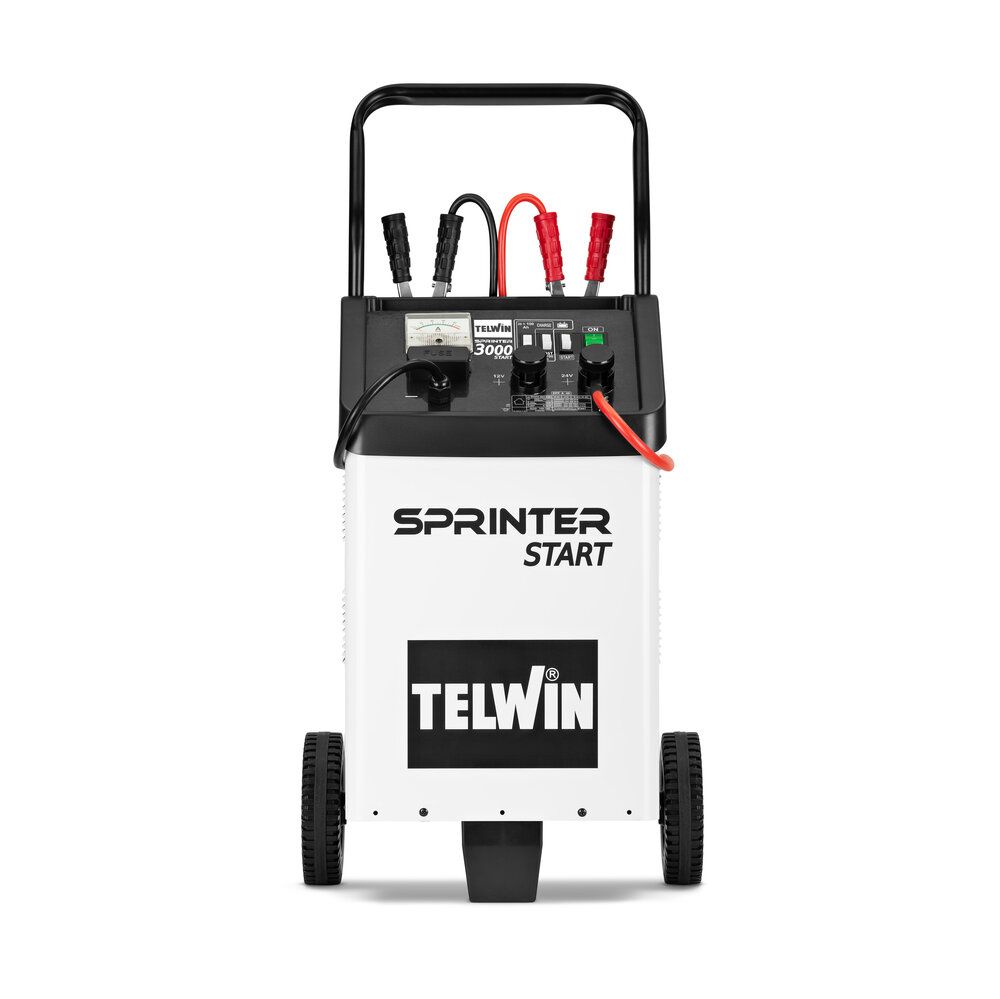

SPRINTER 3000 START

SPRINTER 3000 START

Download PDF Request Info

Battery charger and starter: WET/EFB 12/24V battery charger and rapid ignition of all types of vehicles, vans, etc. (300A max).
Normal charge, boost, rapid ignition selection.
Display of charging and ignition current.
Protection against overcharging and pole inversion.

Battery charger and starter: WET/EFB 12/24V battery charger and rapid ignition of all types of vehicles, vans, etc. (300A max).
Normal charge, boost, rapid ignition selection.
Display of charging and ignition current.
Protection against overcharging and pole inversion.

Battery charger and starter for charging WET/EFB batteries with 12V/24V voltage and starting all kinds of cars, vans and light trucks.
Features:

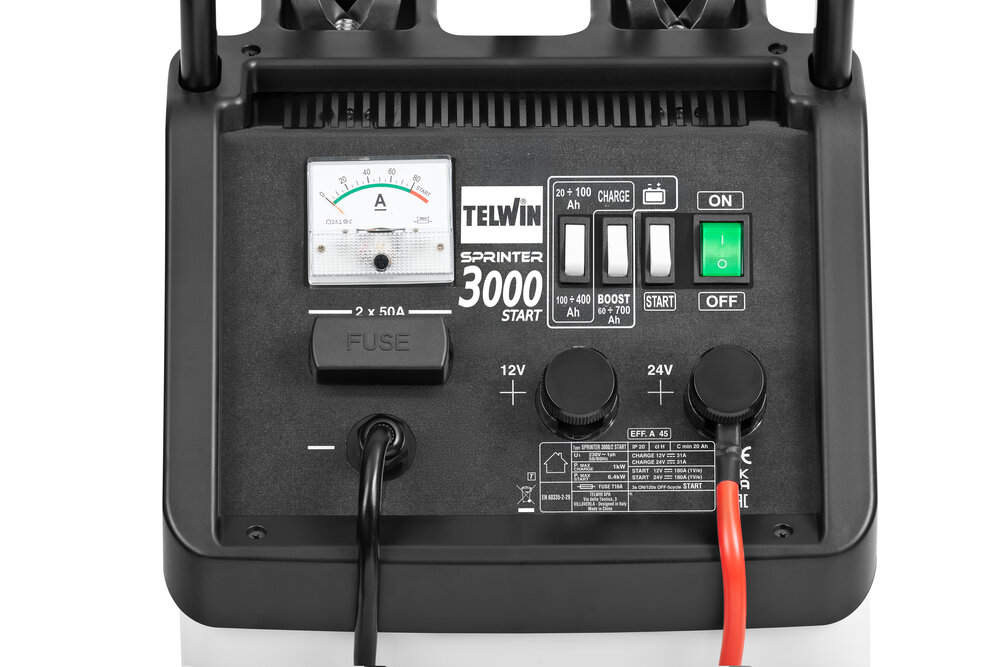

Choice of normal charge, quick charge (BOOST), quick start;
Display of charging and starting current;
Protection against overloads and polarity reversal.

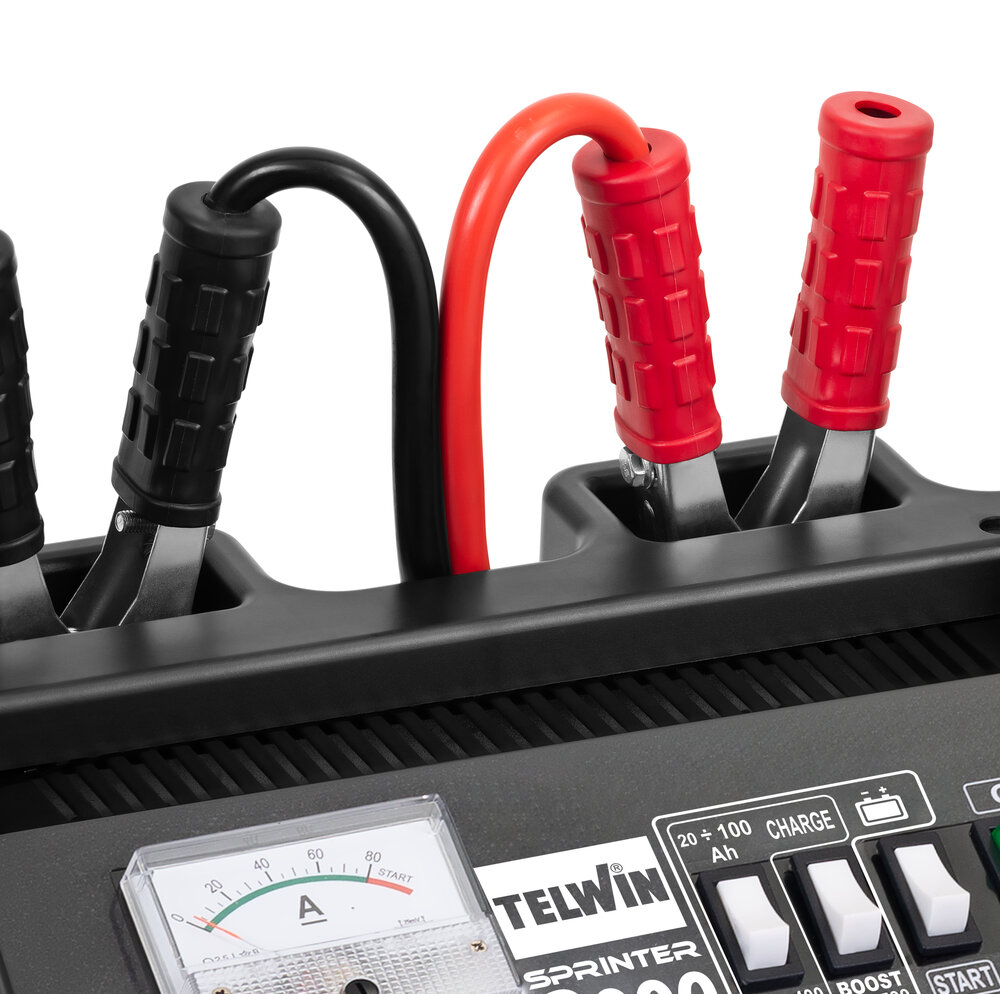

Equipped with cables with clamps.

CODE

829490

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CHARGE POWER

1 kW

START POWER

6,4 kW

CHARGING VOLTAGE

12 / 24 V

EFFECTIVE CHARGING CURRENT

45 A

RATED CHARGE CURR. EN60335-2-29

31 A

START CURRENT 1V/C EN60335-2-29

180 A

MAX STARTING CURRENT

300 A

MIN. RATED REFERENCE CAPACITY

20 Ah

MAX RATED REFERENCE CAPACITY

700 Ah

ADJUSTMENT POSITIONS

3

DIMENSIONS

26,1 x 39,5 x 80,8 cm

WEIGHT

15 kg

Catalog Image

Instruction Manual

Spare Parts List

Certificate

BATTERY CHARGERS FUSES

FUSES 50A 20 PCS

Battery charger and starter for charging WET/EFB batteries with 12V/24V voltage and starting all kinds of cars, vans and light trucks.
Features:

Choice of normal charge, quick charge (BOOST), quick start;
Display of charging and starting current;
Protection against overloads and polarity reversal.

Equipped with cables with clamps.

CODE

829490

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CHARGING ABSORBED POWER

1 kW

STARTING ABSORBED POWER

6,4 kW

CHARGE AND STARTING VOLTAG.

12 / 24 V

EFFECTIVE CHARGING CURRENT

45 A

RATED CHAR.CUR.EN60335-2-29

31 A

START CUR.1V/C EN60335-2-29

180 A

MAX STARTING CURRENT

300 A

MIN.RATED REFERENCE CAPAC.

20 Ah

MAX.RATED REFERENCE CAPAC.

700 Ah

ADJUSTMENT POSITIONS

3

DIMENSIONS (LxWxH)

26,1 x 39,5 x 80,8 cm

WEIGHT

15 kg

Catalog Image

Instruction Manual

Spare Parts List

Certificate

BATTERY CHARGERS FUSES

FUSES 50A 20 PCS
