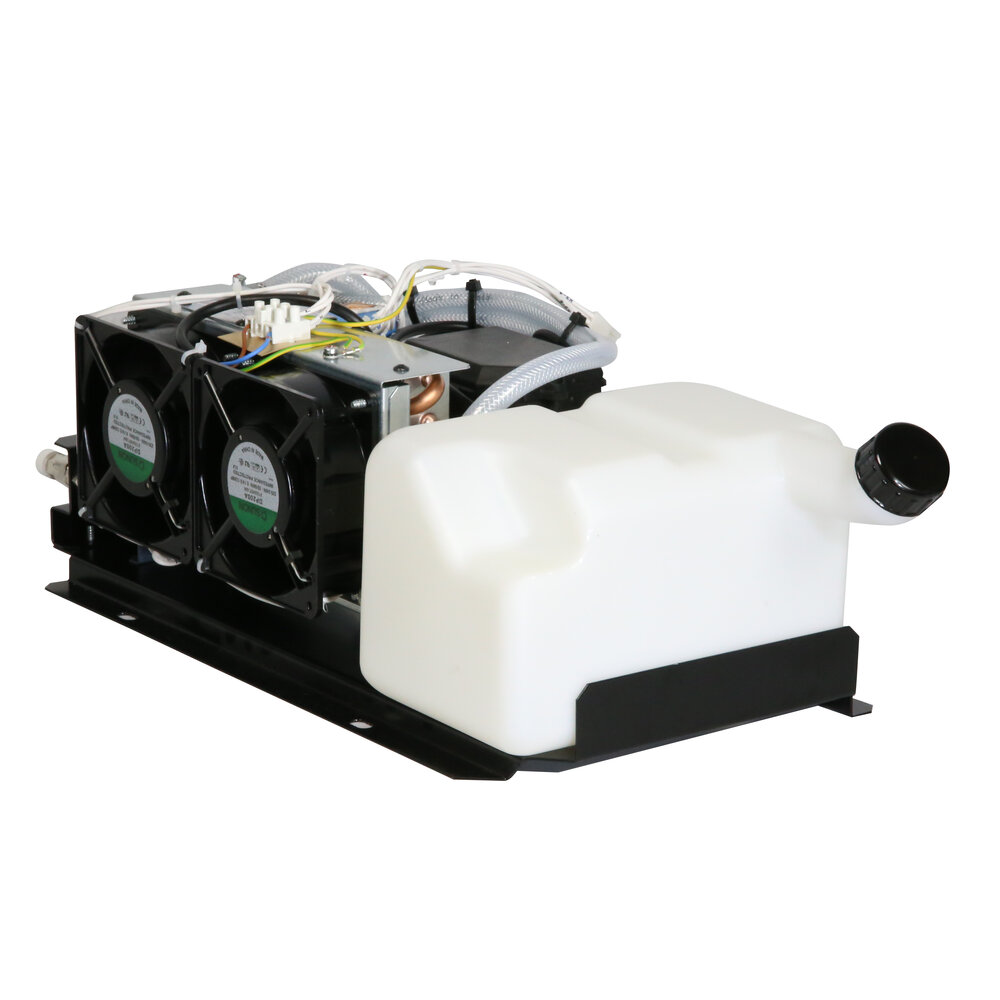

GRA 5505 EXTRA POWER WATER COOLING UNIT

GRA 5505 EXTRA POWER WATER COOLING UNIT

Download PDF Request Info

“Extra Power” liquid cooling unit with 0.75kW power and 4L capacity.
Dimensions 585x235x185 mm, weight 9 kg

“Extra Power” liquid cooling unit with 0.75kW power and 4L capacity.
Dimensions 585x235x185 mm, weight 9 kg

Cooling unit used for welding torches with 0.75W cooling power and 4-litre capacity. EXTRA POWER: guarantees a useful head for hydraulic circuits up to 30 metres. Used for "closed circuit" liquid cooling. Use is suggested with specific liquid for cooling systems to avoid pump blockages and possible obstructions of the hydraulic circuit.

CODE

804258

MAINS FREQUENCY

50 / 60 Hz

SINGLE PHASE MAINS VOLTAGE

230 V

MAX. CURRENT

1 A

ABSORBED POWER

180 W

TANK CAPACITY

4 l

MAX PRESSURE

3 bar

COOLING CAPACITY (1L/MIN)

0,75

COOLING LIQUID

Water

PROTECTION DEGREE

IP23

DIMENSIONS

595 x 250 x 195 mm

WEIGHT

9,20 kg

Catalog Image

Instruction Manual

Spare Parts List

Cooling unit used for welding torches with 0.75W cooling power and 4-litre capacity. EXTRA POWER: guarantees a useful head for hydraulic circuits up to 30 metres. Used for "closed circuit" liquid cooling. Use is suggested with specific liquid for cooling systems to avoid pump blockages and possible obstructions of the hydraulic circuit.

CODE

804258

T04110

50 / 60 Hz

T04111

230 V

MAX CURRENT

1 A

T04112

180 W

T04113

4 l

T04076

3 bar

T04114

0,75

T04115

Water

T04116

IP23

DIMENSIONS

595 x 250 x 195 mm

WEIGHT

9,20 kg
