GRA 450 WATER COOLING UNIT | Telwin

Home Accessories and Consumables G.R.A. (Water Cooling Systems) GRA 450 WATER COOLING UNIT

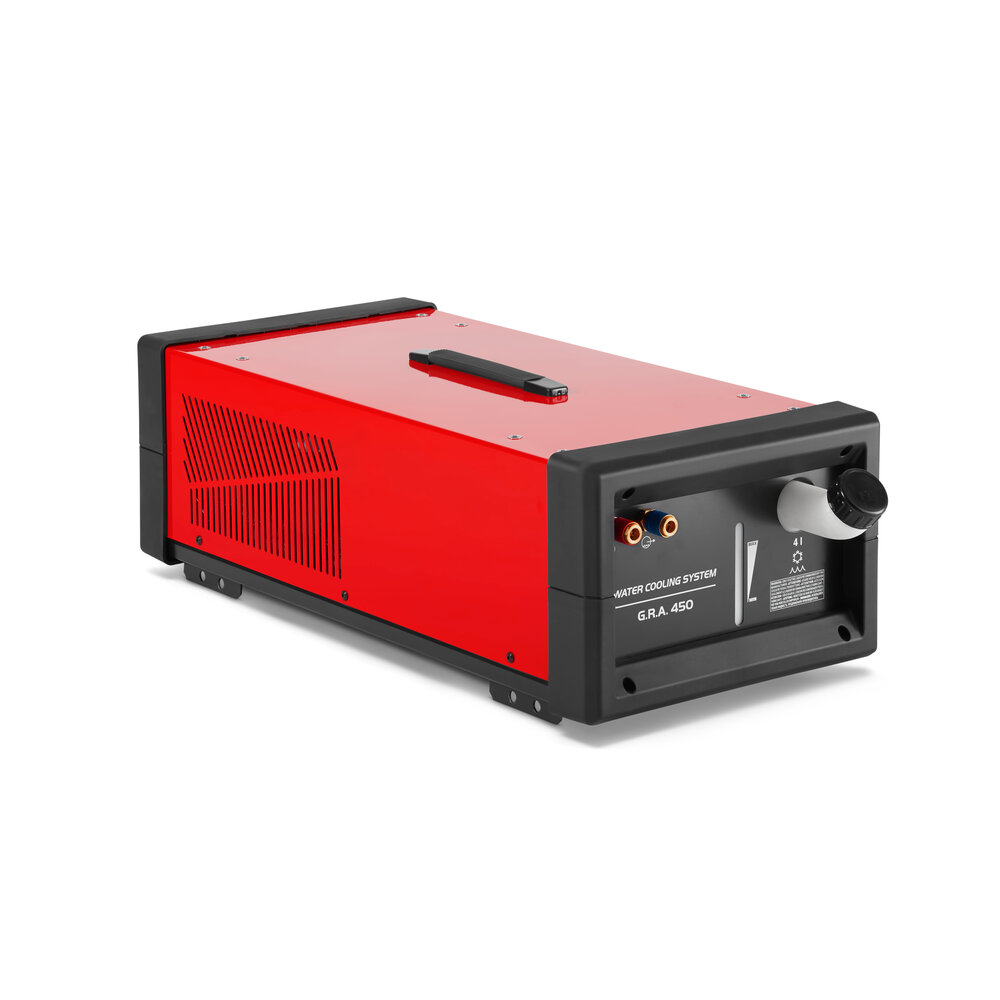

GRA 450 WATER COOLING UNIT

GRA 450 WATER COOLING UNIT

Download PDF Request Info

Liquid cooling unit with 0.6kW power and 4L capacity.
Dimensions 730x305x215 mm, weight 16,22 kg.

Liquid cooling unit with 0.6kW power and 4L capacity.
Dimensions 730x305x215 mm, weight 16,22 kg.

Cooling unit used for welding torches with 0.6kW cooling power and 4-litre capacity. Used for "closed circuit" liquid cooling. Use is suggested with specific liquid for cooling systems to avoid pump blockages and possible obstructions of the hydraulic circuit.

CODE

804270

MAINS FREQUENCY

50 / 60 Hz

SINGLE PHASE MAINS VOLTAGE

230 V

MAX. CURRENT

1 A

ABSORBED POWER

180 W

TANK CAPACITY

4 l

MAX PRESSURE

3 bar

COOLING CAPACITY (1L/MIN)

0,60

COOLING LIQUID

Water

PROTECTION DEGREE

IP21

DIMENSIONS

730 x 305 x 215 mm

WEIGHT

16,2 kg

Catalog Image

Instruction Manual

Spare Parts List

Cooling unit used for welding torches with 0.6kW cooling power and 4-litre capacity. Used for "closed circuit" liquid cooling. Use is suggested with specific liquid for cooling systems to avoid pump blockages and possible obstructions of the hydraulic circuit.

CODE

804270

T04110

50 / 60 Hz

T04111

230 V

MAX CURRENT

1 A

T04112

180 W

T04113

4 l

T04076

3 bar

T04114

0,60

T04115

Water

T04116

IP21

DIMENSIONS

730 x 305 x 215 mm

WEIGHT

16,2 kg
