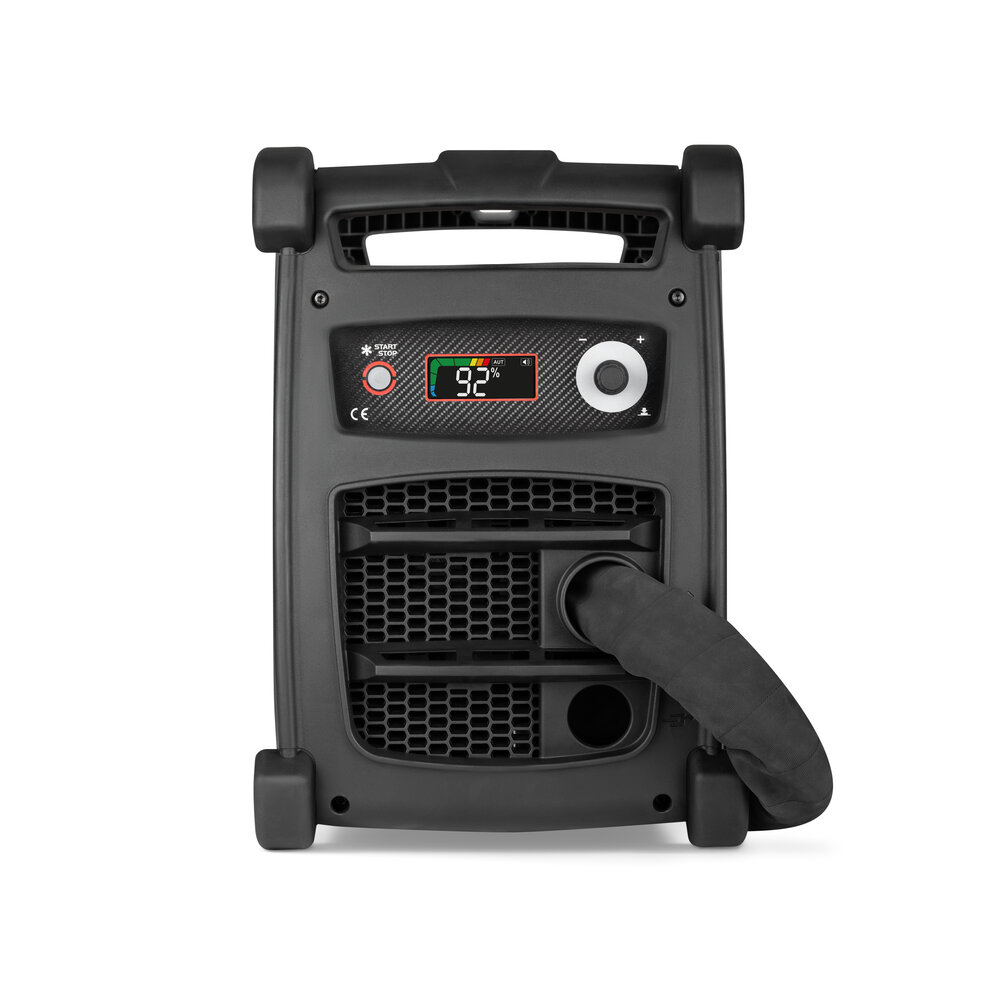

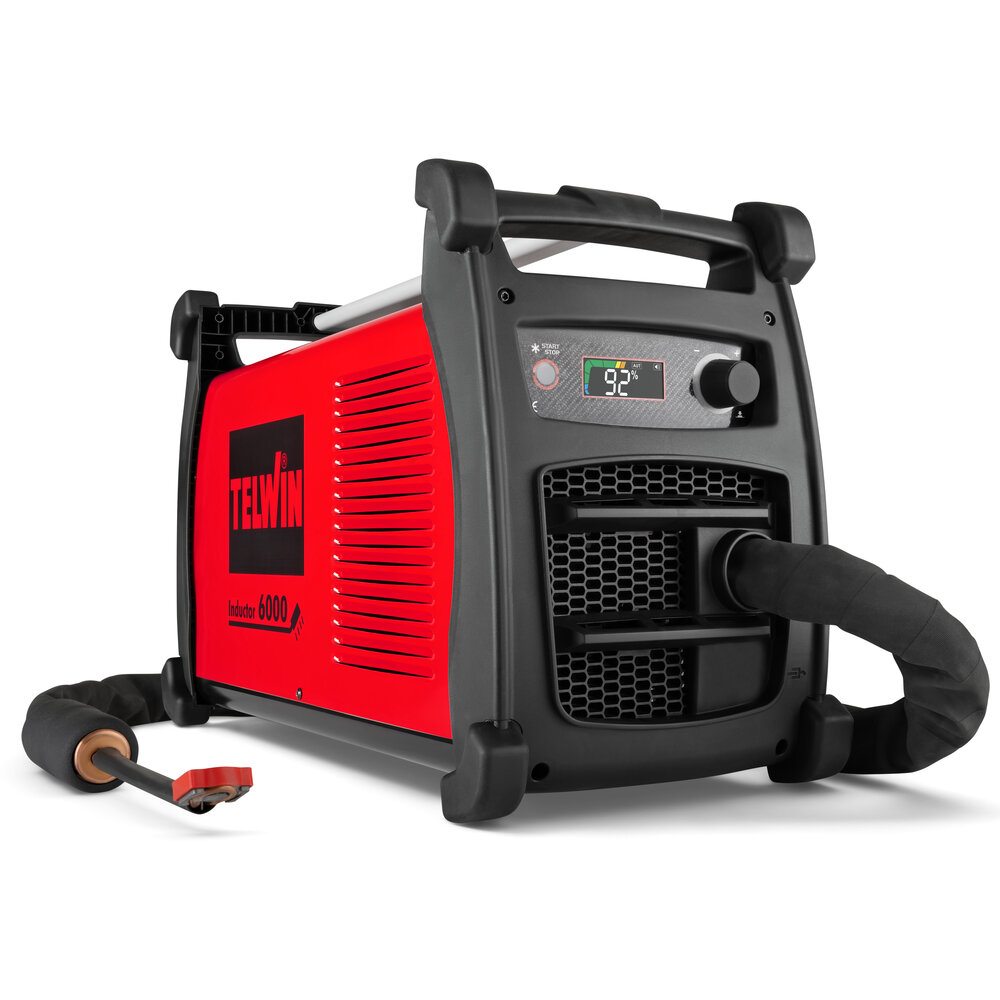

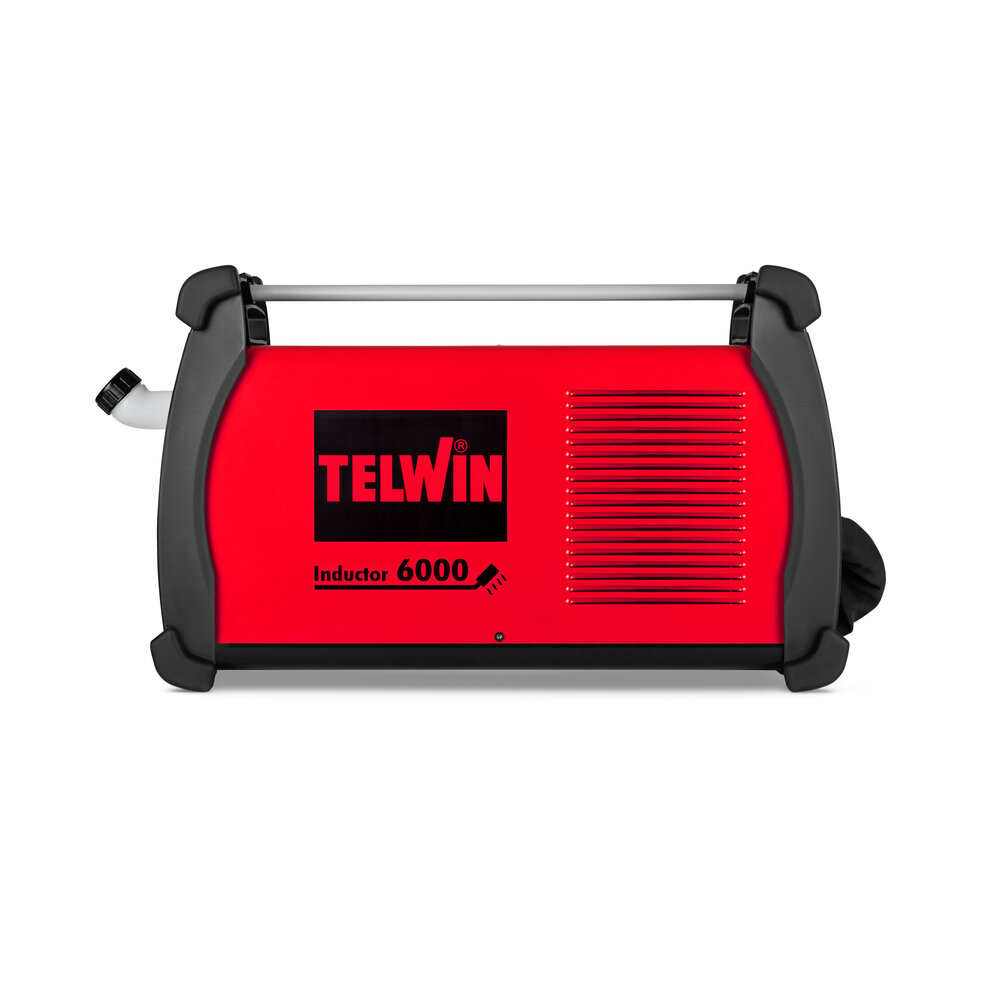

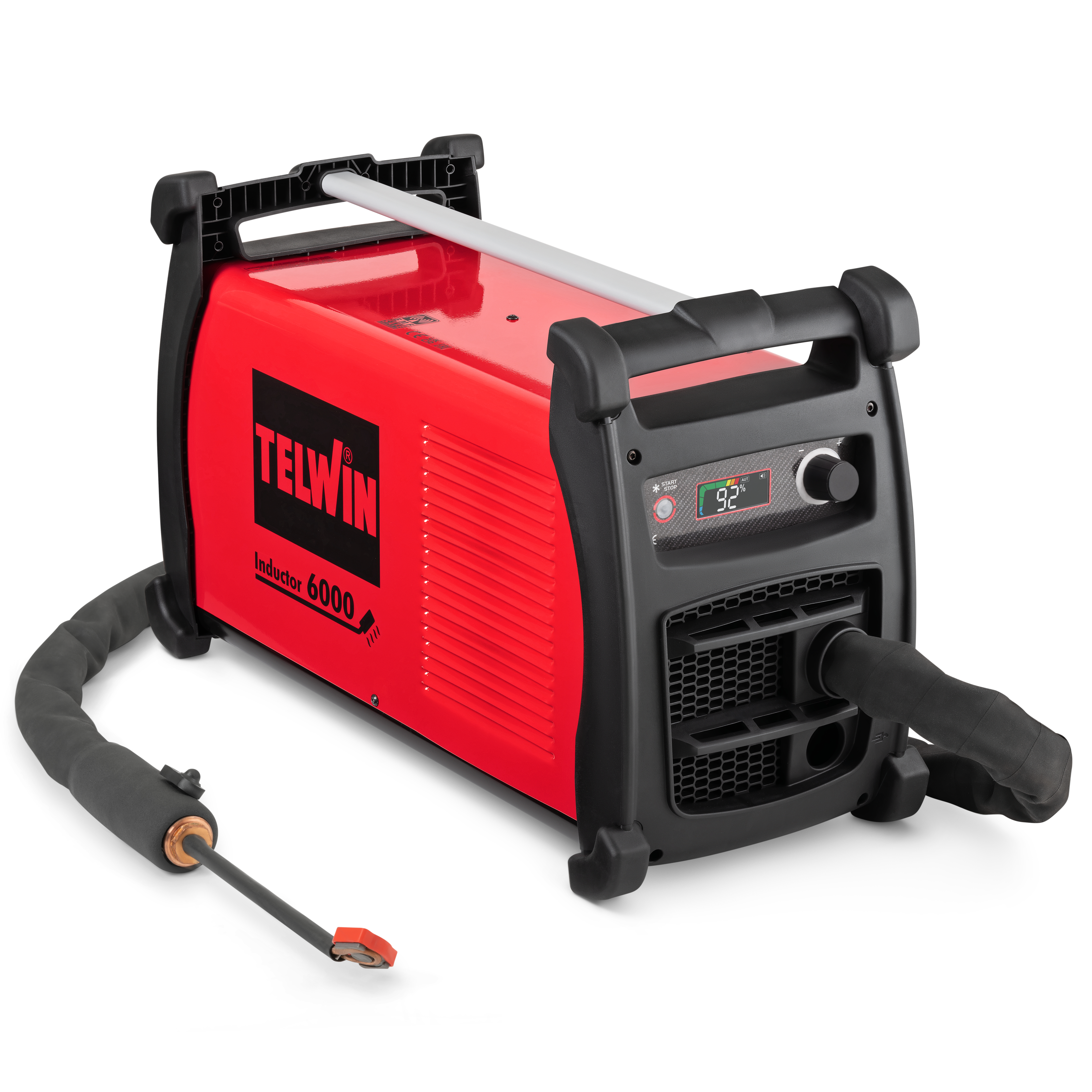

INDUCTOR 6000 AQUA

INDUCTOR 6000 AQUA

Download PDF Request Info

Portable induction heater for fast release of bolts, nuts, gears, joints and screws. With color LCD display and water cooling system.
With adjustable heating power. Heat is transferred to the part to release in a localised and precise manner.
Compact and easily portable.

Portable induction heater for fast release of bolts, nuts, gears, joints and screws. With color LCD display and water cooling system.
With adjustable heating power. Heat is transferred to the part to release in a localised and precise manner.
Compact and easily portable.

Portable induction heater that allows for quick unlocking of bolts, nuts, gears, joints, and screws. It is particularly useful for applications in bodywork, auto repair shops, agriculture, maintenance, metalworking, etc. By adjusting the power, it transfers heat quickly to the part to be unlocked in a localized and precise manner. Equipped with a color LCD display for viewing the operation and set parameters. Water-cooled for continuous use over time.
Features:

automatic and manual power adjustment;
water lock button for tool change;
compact and easily portable.

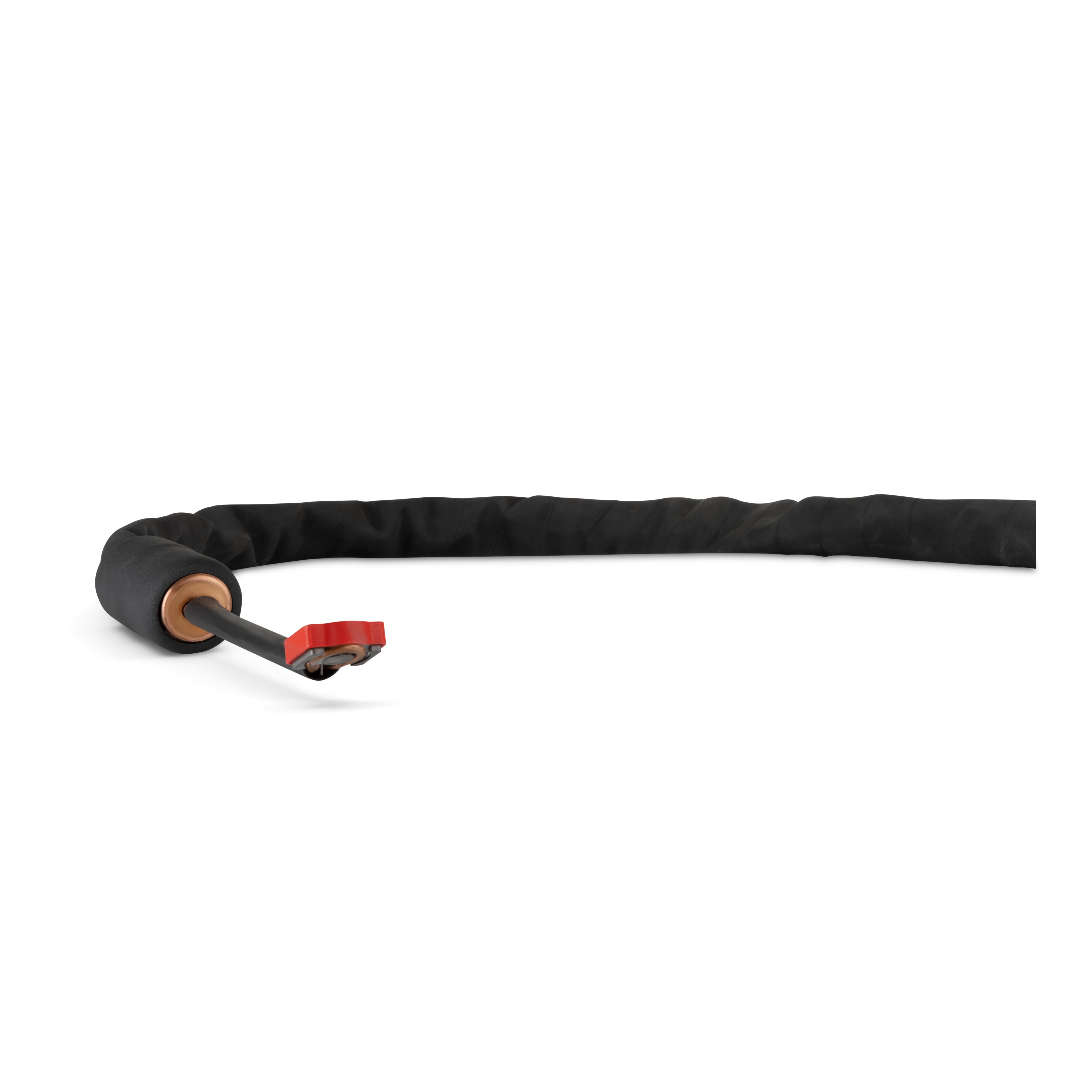

Supplied with an M12 induction tool with a 2m cable.

CODE

835014

SINGLE PHASE MAINS VOLTAGE

200 - 240 V

MAINS FREQUENCY

50 / 60 Hz

MAX ABSORBED POWER

3,8 kW

HEATING FREQUENCY

35 - 100 kHz

MAX HEATING POWER

3,3 kW

PROTECTION DEGREE

IP23

TANK CAPACITY

2 l

DIMENSIONS

78 x 26 x 37,8 cm

WEIGHT

13,10 kg

Catalog Image

Instruction Manual

Spare Parts List

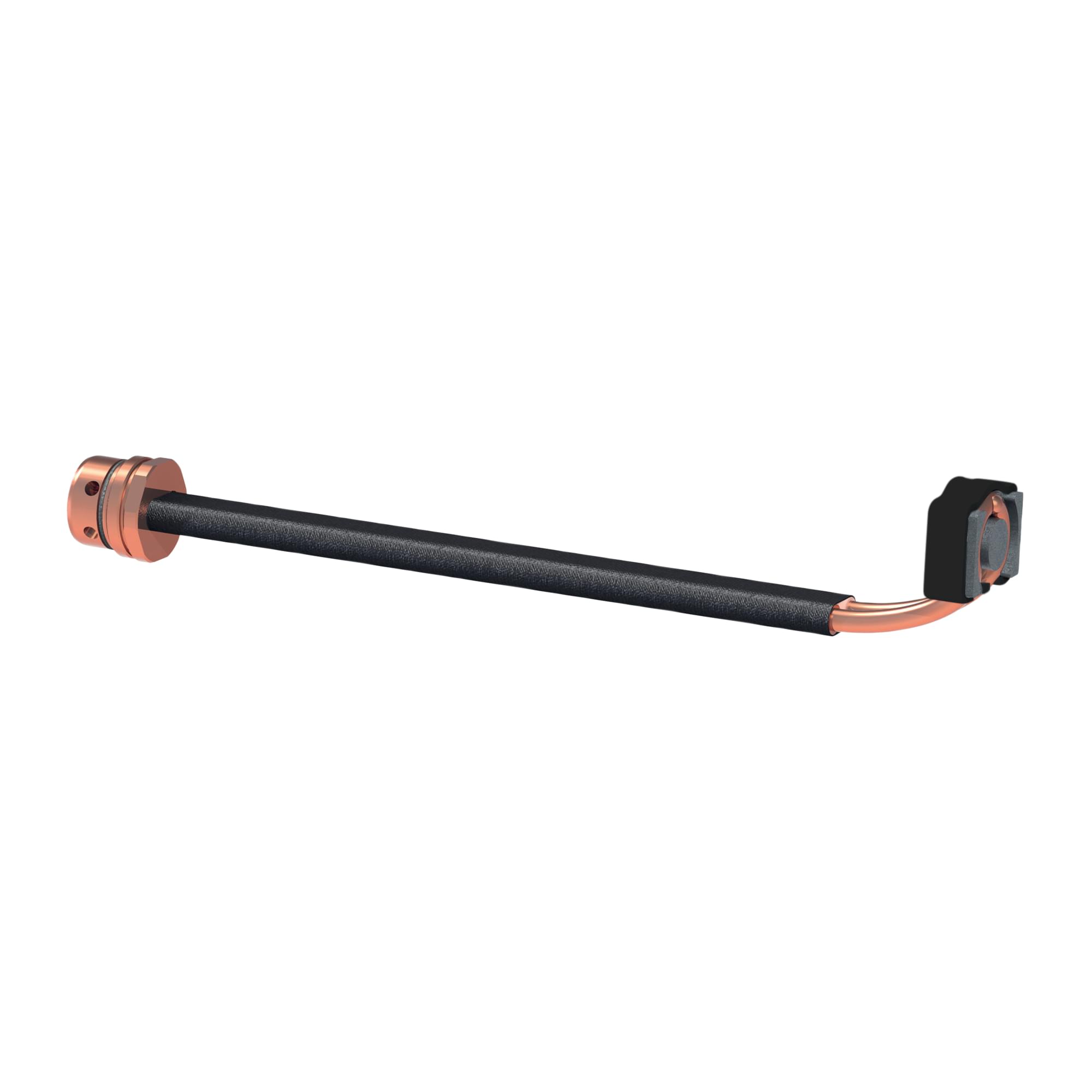

D20/F1 INDUCTOR HEAD ASSEMBLY

TROLLEYS AND ACCESSORIES

TROLLEY - COSMOPOLITAN

Portable induction heater that allows for quick unlocking of bolts, nuts, gears, joints, and screws. It is particularly useful for applications in bodywork, auto repair shops, agriculture, maintenance, metalworking, etc. By adjusting the power, it transfers heat quickly to the part to be unlocked in a localized and precise manner. Equipped with a color LCD display for viewing the operation and set parameters. Water-cooled for continuous use over time.
Features:

automatic and manual power adjustment;
water lock button for tool change;
compact and easily portable.

Supplied with an M12 induction tool with a 2m cable.

CODE

835014

SINGLEPHASE MAINS VOLTAGE

200 - 240 V

MAINS FREQUENCY

50 / 60 Hz

MAX ABSORBED POWER

3,8 kW

HEATING FREQUENCY

35 - 100 kHz

MAX HEATING POWER

3,3 kW

PROTECTION DEGREE

IP23

T0066701

2 l

DIMENSIONS (LxWxH)

78 x 26 x 37,8 cm

WEIGHT

13,10 kg

Catalog Image

Instruction Manual

Spare Parts List

D20/F1 INDUCTOR HEAD ASSEMBLY

TROLLEYS AND ACCESSORIES

TROLLEY - COSMOPOLITAN

803079

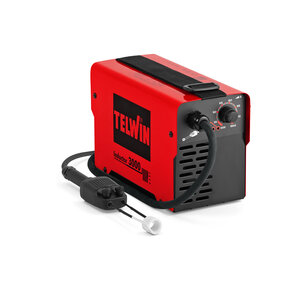

INDUCTOR 3000
