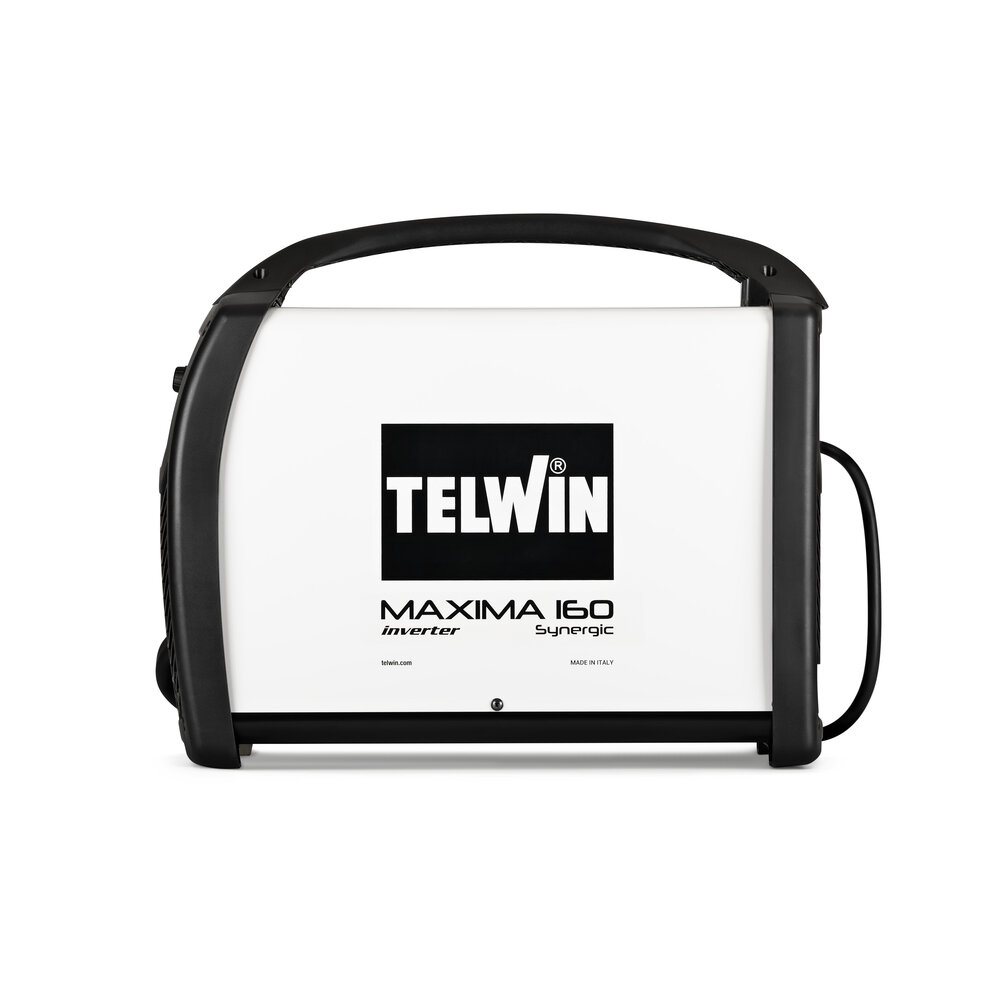

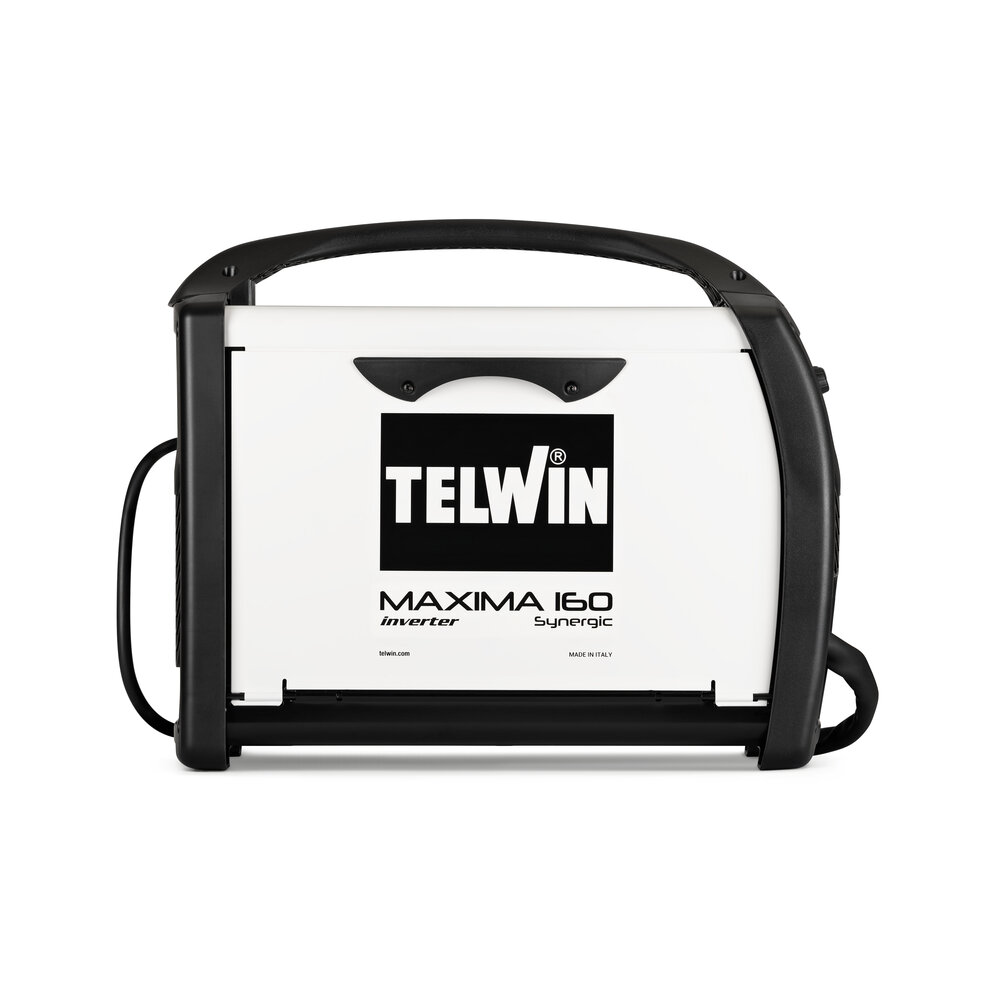

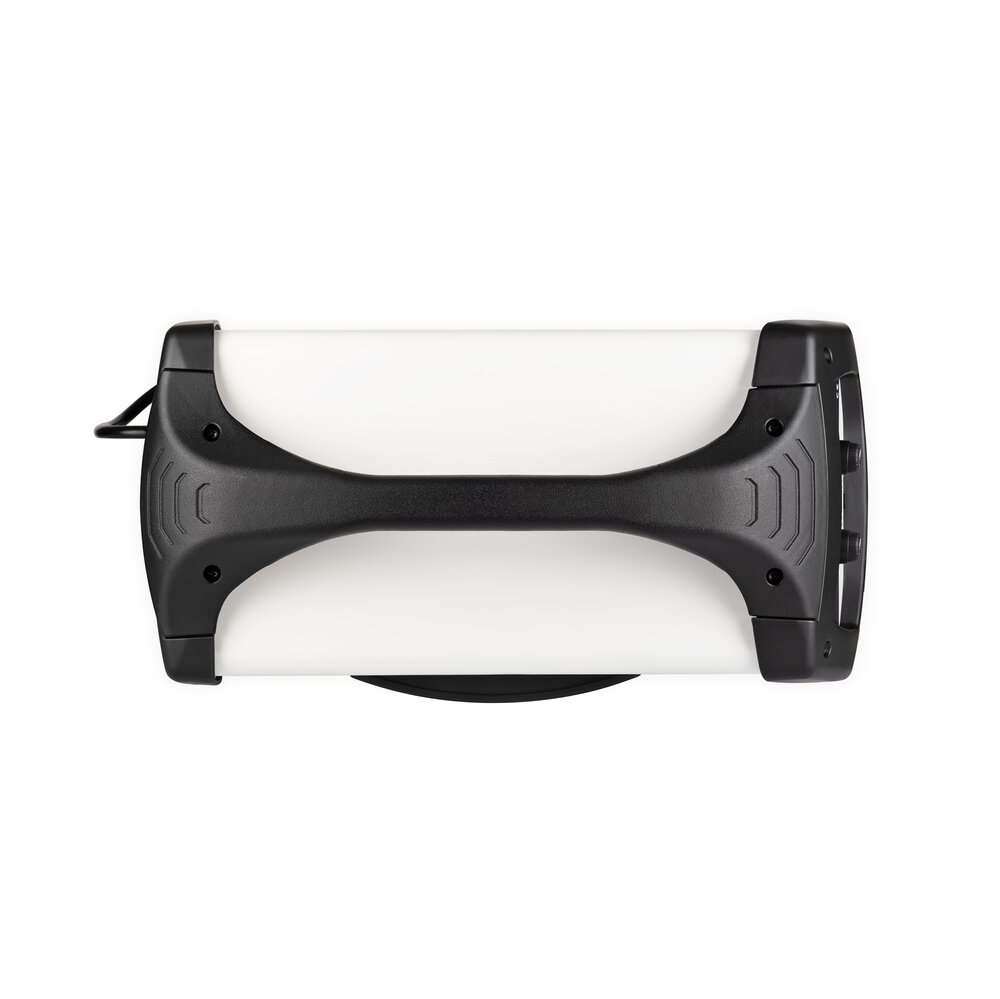

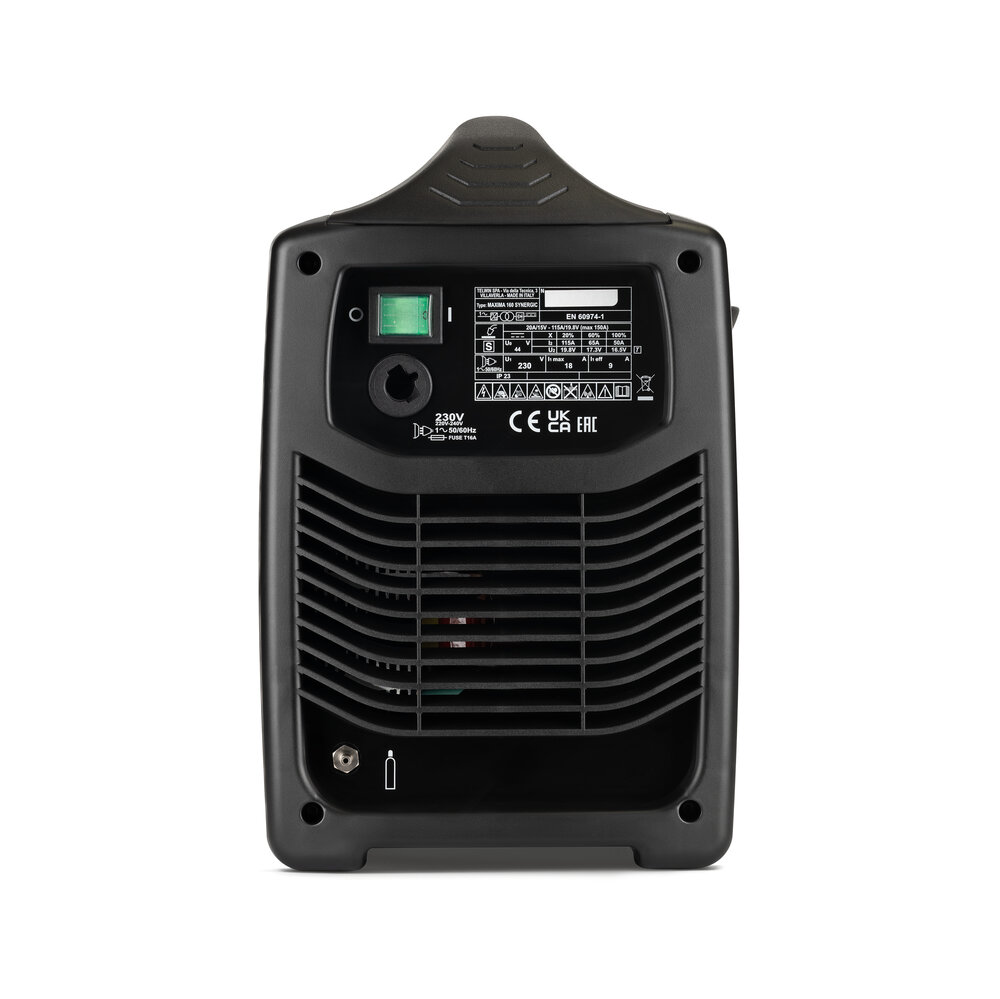

MAXIMA 160 SYNERGIC

Download PDF Request Info

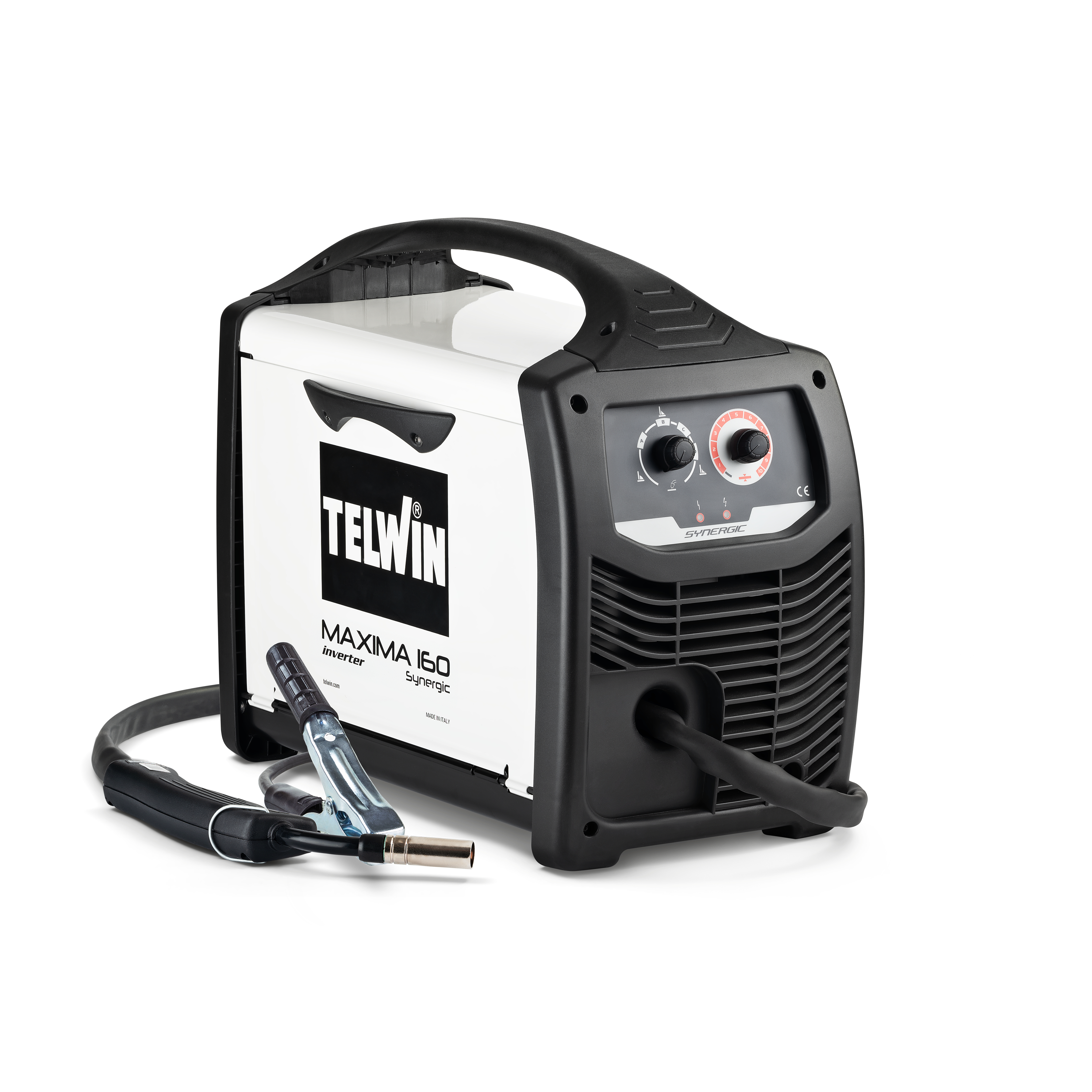

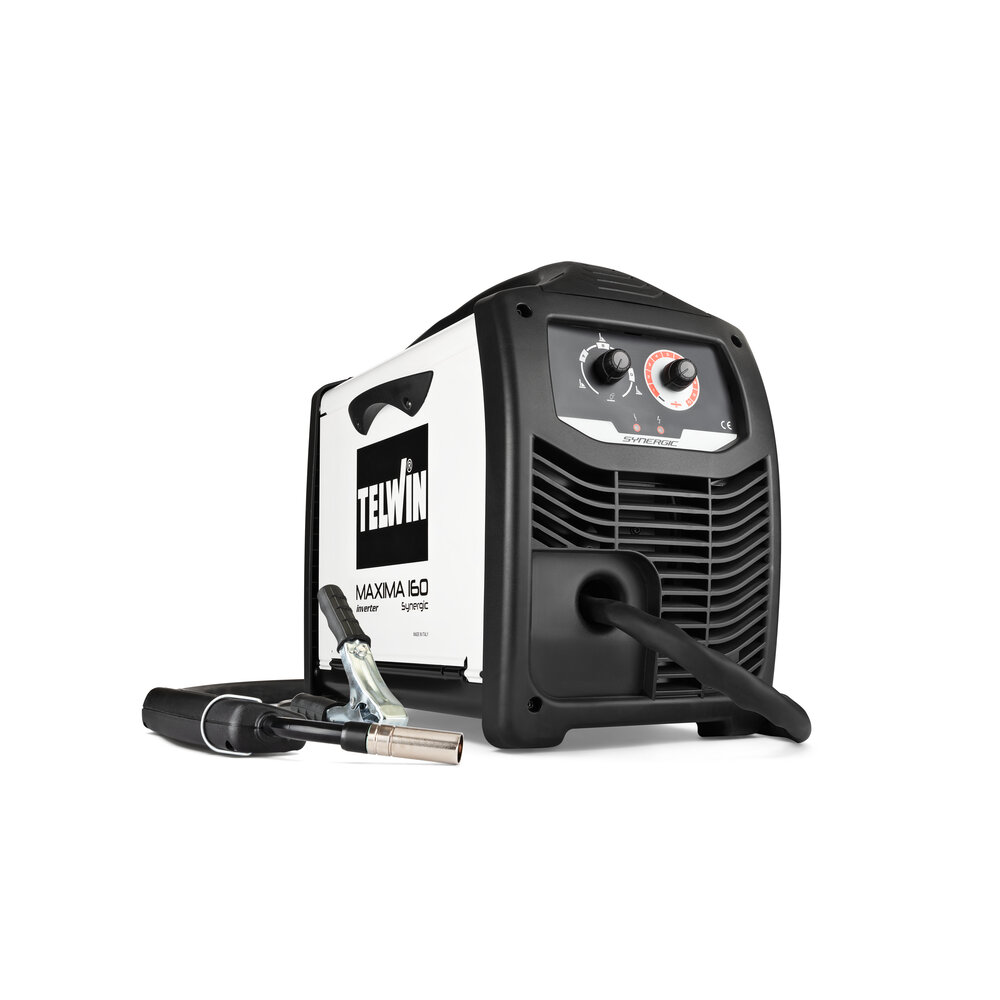

  • CORE WIRE, MIG-MAG/BRAZING inverter welding machine, 150A. Supplied with MIG-MAG torch, earth cable and earth clamp.

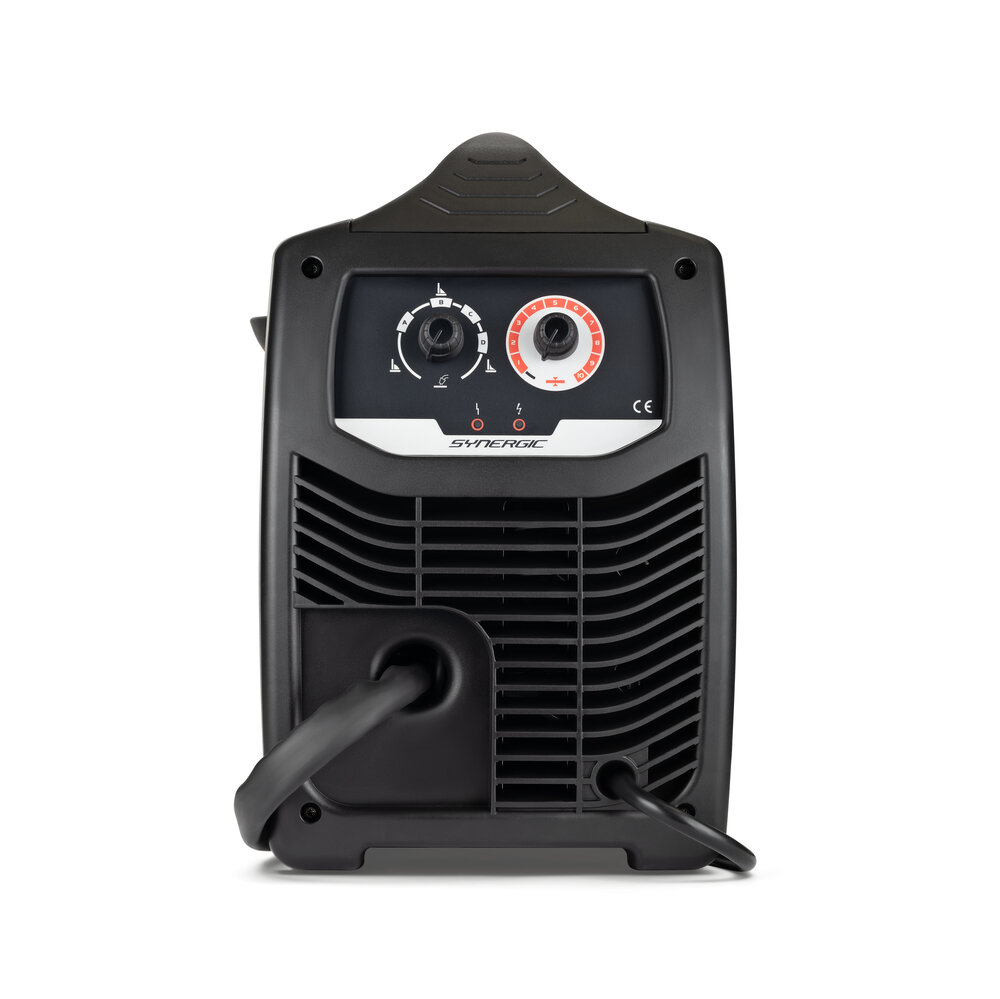

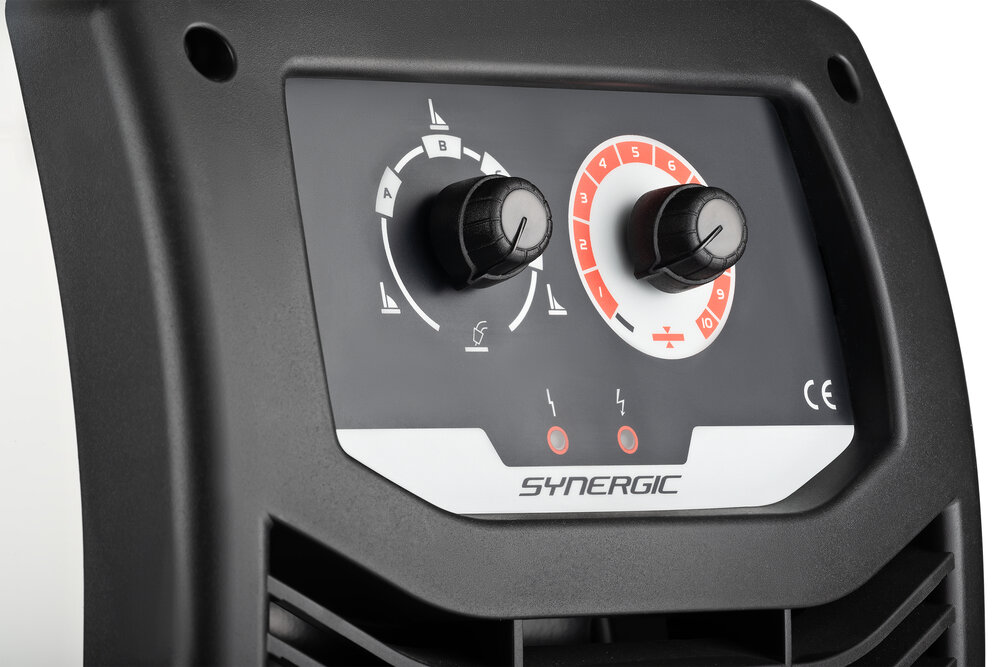

  • SYNERGIC adjustment of the parameters: intuitive panel with 2 settings (shape of seam and thickness).
  • Set up for use with Ø 100 and 200 mm reels.
  • Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%).
  • Set up for NO GAS (Flux) welding, transformable in MIG-MAG (use with GAS) with optional kit.
  • Light and compact. Easy to transport.
  • Contained consumption thanks to inverter technology.
  • CORE WIRE, MIG-MAG/BRAZING inverter welding machine, 150A. Supplied with MIG-MAG torch, earth cable and earth clamp.
  • SYNERGIC adjustment of the parameters: intuitive panel with 2 settings (shape of seam and thickness).
  • Set up for use with Ø 100 and 200 mm reels.
  • Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%).
  • Set up for NO GAS (Flux) welding, transformable in MIG-MAG (use with GAS) with optional kit.
  • Light and compact. Easy to transport.
  • Contained consumption thanks to inverter technology.
Microprocessor controlled MIG-MAG/FLUX/BRAZING inverter wire welding machine. It allows great versatility in the use of various types of materials (steel, stainless steel, aluminium) and in all possible applications, from maintenance to installation works.
The SYNERGIC adjustment of the welding parameters makes the products easy to use and grants excellent results, always, also for the less experienced operator.
Light and compact, it can be easily carried in any intervention place, both inside and outside.
Features:

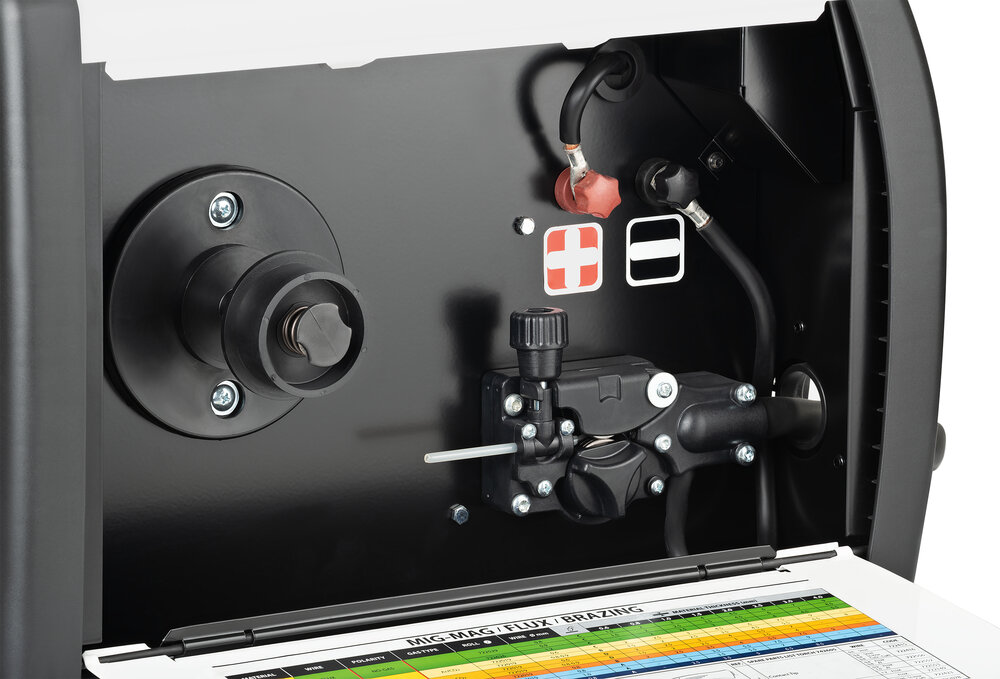

  • Polarity reversal for GAS MIG-MAG/BRAZING welding
  • Thermostatic, overvoltage, undervoltage, motorgenerator (+/- 15%) protections.
Fit for NO GAS/Flux welding, it can be transformed into MIG-MAG with the optional kit.
Complete with MIG-MAG torch, work clamp and cable.

CODE

816085

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

MAX NO LOAD VOLTAGE

44 V

CURRENT RANGE

20 - 150 A

MAX CURRENT

115 @ 20% A

CURRENT 35% DC

85 A

DC CURRENT

65 A

MAX ABSORBED CURRENT

18 A

ABSORBED CURRENT AT 60%

9 A

MAX ABSORBED POWER

2,6 kW

ABSORBED POWER AT 60%

1,2 kW

EFFICIENCY

86 %

POWER FACTOR

0,7

STEEL WELDING WIRE DIAMETER

0,6 - 0,8 mm

INOX WELDING WIRE DIAMETER

0,8 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1 mm

FLUX CORED WELDING WIRE DIAM.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 mm

PROTECTION DEGREE

IP23

DIMENSIONS

45 X 23,5 X 37 cm

WEIGHT

9,29 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Microprocessor controlled MIG-MAG/FLUX/BRAZING inverter wire welding machine. It allows great versatility in the use of various types of materials (steel, stainless steel, aluminium) and in all possible applications, from maintenance to installation works.
The SYNERGIC adjustment of the welding parameters makes the products easy to use and grants excellent results, always, also for the less experienced operator.
Light and compact, it can be easily carried in any intervention place, both inside and outside.
Features:
  • Polarity reversal for GAS MIG-MAG/BRAZING welding
  • Thermostatic, overvoltage, undervoltage, motorgenerator (+/- 15%) protections.
Fit for NO GAS/Flux welding, it can be transformed into MIG-MAG with the optional kit.
Complete with MIG-MAG torch, work clamp and cable.

CODE

816085

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

MAX NO LOAD VOLTAGE IN DC

44 V

CURRENT RANGE IN DC

20 - 150 A

MAX CURRENT DC EN60974-1

115 @ 20% A

CURRENT 35% DC

85 A

DC CURRENT AT 60%

65 A

MAX ABSORBED CURRENT

18 A

ABSORBED CURRENT AT 60%

9 A

MAX ABSORBED POWER

2,6 kW

ABSORBED POWER AT 60%

1,2 kW

EFFICIENCY

86 %

POWER FACTOR(cosphi) (cosphi)

0,7

STEEL WELDING WIRE DIAMET.

0,6 - 0,8 mm

INOX WELDI.WIRE DIAMETER

0,8 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1 mm

FLUX CORED WELDI.WIRE DIA.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

45 X 23,5 X 37 cm

WEIGHT

9,29 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

CABLE 16 MMQ 1,8 M

124502

TW160 MIG TORCH 2M

742402

COLORADO 150B WORK CLAMP 150A

GAS REGULATORS

QUICK GAS CONNECTOR

804208
GASBOTTLE CONNECTION KIT

CONNECTION KIT FOR THROWAWAY BOTTLE

802032

CONNECTION KIT FOR REFILLABLE BOTTLE

802708
MIG/MAG WELDING KITS

STEEL WELDING KIT FOR THROWAWAY BOTTLE

802147

STEEL WELDING KIT FOR REFILLABLE BOTTLE

802148

STAINLESS STEEL WELDING KIT D. 0,8 MM

802037

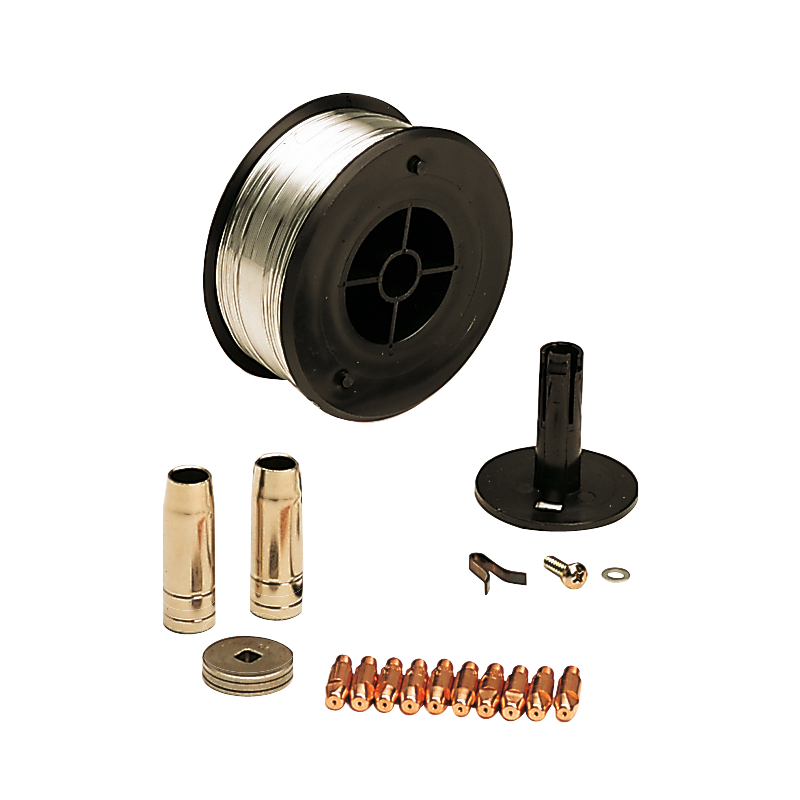

ALUMINIUM WELDING KIT D. 0,8 MM

802036
TROLLEYS AND ACCESSORIES

TROLLEY - ARCTIC

803059

TROLLEY - AMERICA

803084
