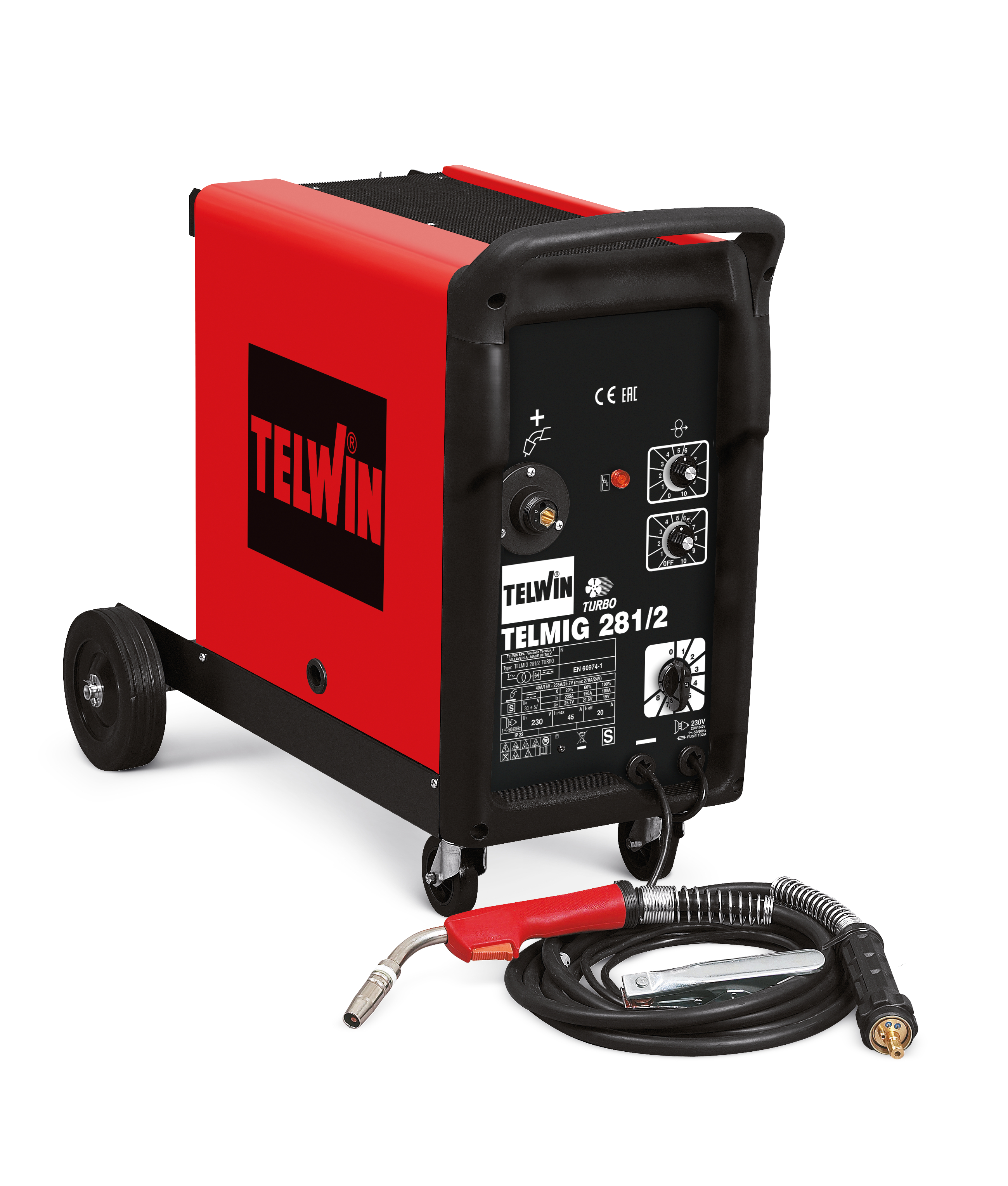

TELMIG 281/2

TELMIG 281/2

Download PDF Request Info

MIG-MAG, 270A wire welding machine. With welding accessories.
Designed for continuous and spot welding with electronic adjustment of spot welding time.
Optional kit available for tempering sheet metal and nailing.

MIG-MAG, 270A wire welding machine. With welding accessories.
Designed for continuous and spot welding with electronic adjustment of spot welding time.
Optional kit available for tempering sheet metal and nailing.

MIG-MAG welding machine. Designed for continuous and spot welding with electronic regulation of spotwelding time.
Flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels and aluminium.
With optional kit this model allows also sheet tempering.
Complete with MIG-MAG welding accessories.

CODE

820099

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

40 - 270 A

MAX CURRENT

235 @ 20 % A

CURRENT 35% DC

178 A

DC CURRENT

150 A

MAX NO LOAD VOLTAGE

34 V

MAX ABSORBED POWER

9,5 kW

ABSORBED POWER AT 60%

5 kW

POWER FACTOR

0,9

ADJUSTMENT POSITIONS

8

STEEL WELDING WIRE DIAMETER

0,6 - 1,2 mm

INOX WELDING WIRE DIAMETER

0,8 - 1 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1 mm

PROTECTION DEGREE

IP22

DIMENSIONS

80 x 45 x 65,5 cm

WEIGHT

55 kg

Catalog Image

Instruction Manual

Spare Parts List

Certificate

MT25 MIG TORCH 3M

GAS REGULATOR REFILLABLE BOTTLE

TOLEDO 300 WORK CLAMP

CABLE 25 MMQ 2 M

SPACER

ARGON GAS BOTTLE IT ADAPTOR

MIG/MAG WELDING KITS

STAINLESS STEEL WELDING KIT D. 0,8 MM

ALUMINIUM WELDING KIT D. 0,8-1 MM

NAIL WELDING KIT

PLATE TEMPERING KIT

MIG TORCHES

MT25 MIG TORCH 4M

MIG-MAG welding machine. Designed for continuous and spot welding with electronic regulation of spotwelding time.
Flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels and aluminium.
With optional kit this model allows also sheet tempering.
Complete with MIG-MAG welding accessories.

CODE

820099

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

40 - 270 A

MAX CURRENT DC EN60974-1

235 @ 20 % A

CURRENT 35% DC

178 A

DC CURRENT AT 60%

150 A

MAX NO LOAD VOLTAGE IN DC

34 V

MAX ABSORBED POWER

9,5 kW

ABSORBED POWER AT 60%

5 kW

POWER FACTOR(cosphi) (cosphi)

0,9

ADJUSTMENT POSITIONS

8

STEEL WELDING WIRE DIAMET.

0,6 - 1,2 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1 mm

PROTECTION DEGREE

IP22

DIMENSIONS (LxWxH)

80 x 45 x 65,5 cm

WEIGHT

55 kg

Catalog Image

Instruction Manual

Spare Parts List

Certificate

MT25 MIG TORCH 3M

742183

GAS REGULATOR REFILLABLE BOTTLE

722341

TOLEDO 300 WORK CLAMP

CABLE 25 MMQ 2 M

123466

SPACER

ARGON GAS BOTTLE IT ADAPTOR

432036

MIG/MAG WELDING KITS

STAINLESS STEEL WELDING KIT D. 0,8 MM

802037

ALUMINIUM WELDING KIT D. 0,8-1 MM

802115

NAIL WELDING KIT

802034

PLATE TEMPERING KIT

802035

MIG TORCHES

MT25 MIG TORCH 4M

742184

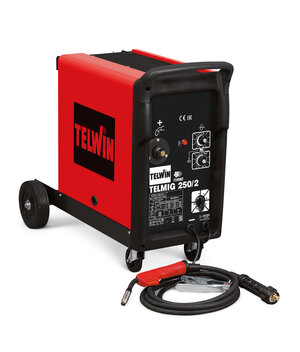

TELMIG 250/2
