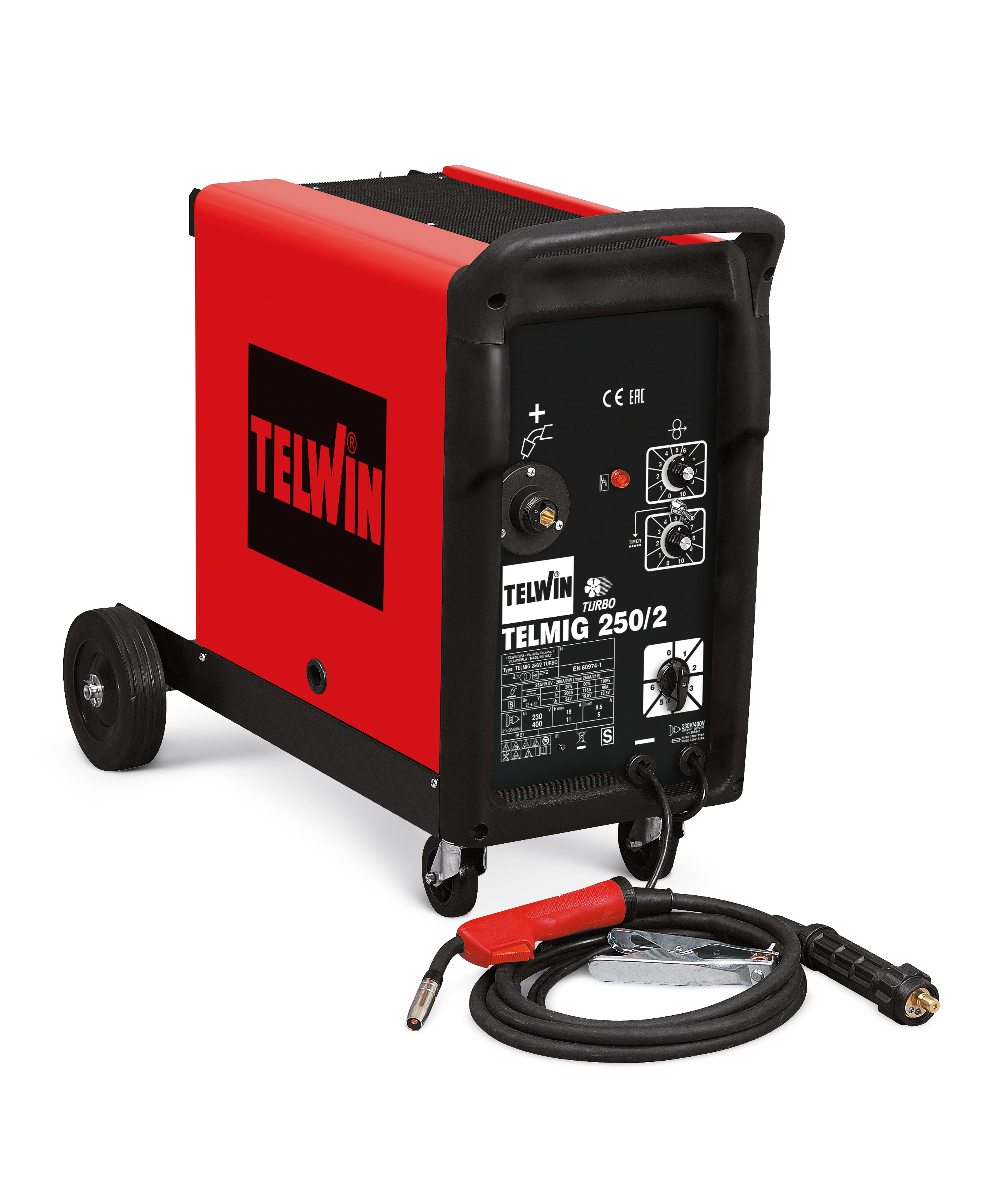

TELMIG 250/2

TELMIG 250/2

Download PDF Request Info

MIG-MAG, 260A wire welding machine. 3ph 230/400V power supply. With welding accessories.
Designed for continuous and spot welding with electronic adjustment of spot welding time.
Optional kit available for tempering sheet metal and nailing.

MIG-MAG, 260A wire welding machine. 3ph 230/400V power supply. With welding accessories.
Designed for continuous and spot welding with electronic adjustment of spot welding time.
Optional kit available for tempering sheet metal and nailing.

MIG-MAG welding machine. Designed for continuous and spot welding with electronic regulation of spotwelding time.
Flexibility of use with a wide range of materials such as steel, stainless steel, highstrength steels and aluminium.
Complete with MIGMAG welding accessories.

CODE

821061

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

35 - 260 A

MAX CURRENT

200 @ 20 % A

CURRENT 35% DC

152 A

DC CURRENT

115 A

MAX NO LOAD VOLTAGE

33 V

MAX ABSORBED POWER

7 kW

ABSORBED POWER AT 60%

3 kW

POWER FACTOR

0,9

ADJUSTMENT POSITIONS

6

STEEL WELDING WIRE DIAMETER

0,6 - 1 mm

INOX WELDING WIRE DIAMETER

0,8 - 1 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1 mm

PROTECTION DEGREE

IP21

DIMENSIONS

80 x 45 x 65,5 cm

WEIGHT

50 kg

Catalog Image

Instruction Manual

Spare Parts List

Certificate

CABLE 25 MMQ 2 M

SPACER

ARGON GAS BOTTLE IT ADAPTOR

TOLEDO 250 WORK CLAMP 250A

GAS REGULATOR REFILLABLE BOTTLE

MT15 MIG TORCH 3M (RED)

MIG/MAG WELDING KITS

STAINLESS STEEL WELDING KIT D. 0,8 MM

ALUMINIUM WELDING KIT D. 0,8-1 MM

NAIL WELDING KIT

PLATE TEMPERING KIT

MIG TORCHES

MT15 MIG TORCH 4M

MIG-MAG welding machine. Designed for continuous and spot welding with electronic regulation of spotwelding time.
Flexibility of use with a wide range of materials such as steel, stainless steel, highstrength steels and aluminium.
Complete with MIGMAG welding accessories.

CODE

821061

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

35 - 260 A

MAX CURRENT DC EN60974-1

200 @ 20 % A

CURRENT 35% DC

152 A

DC CURRENT AT 60%

115 A

MAX NO LOAD VOLTAGE IN DC

33 V

MAX ABSORBED POWER

7 kW

ABSORBED POWER AT 60%

3 kW

POWER FACTOR(cosphi) (cosphi)

0,9

ADJUSTMENT POSITIONS

6

STEEL WELDING WIRE DIAMET.

0,6 - 1 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1 mm

PROTECTION DEGREE

IP21

DIMENSIONS (LxWxH)

80 x 45 x 65,5 cm

WEIGHT

50 kg

Catalog Image

Instruction Manual

Spare Parts List

Certificate

CABLE 25 MMQ 2 M

123466

SPACER

ARGON GAS BOTTLE IT ADAPTOR

432036

TOLEDO 250 WORK CLAMP 250A

GAS REGULATOR REFILLABLE BOTTLE

722341

MT15 MIG TORCH 3M (RED)

742180

MIG/MAG WELDING KITS

STAINLESS STEEL WELDING KIT D. 0,8 MM

802037

ALUMINIUM WELDING KIT D. 0,8-1 MM

802115

NAIL WELDING KIT

802034

PLATE TEMPERING KIT

802035

MIG TORCHES

MT15 MIG TORCH 4M

742181

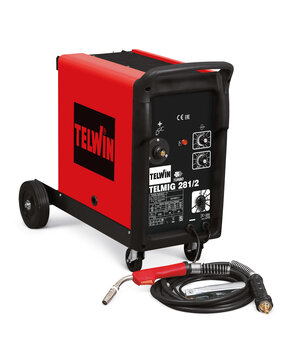

TELMIG 281/2
