ELECTROMIG 450 SYNERGIC AQUA

New

ELECTROMIG 450 SYNERGIC AQUA

Download PDF Request Info

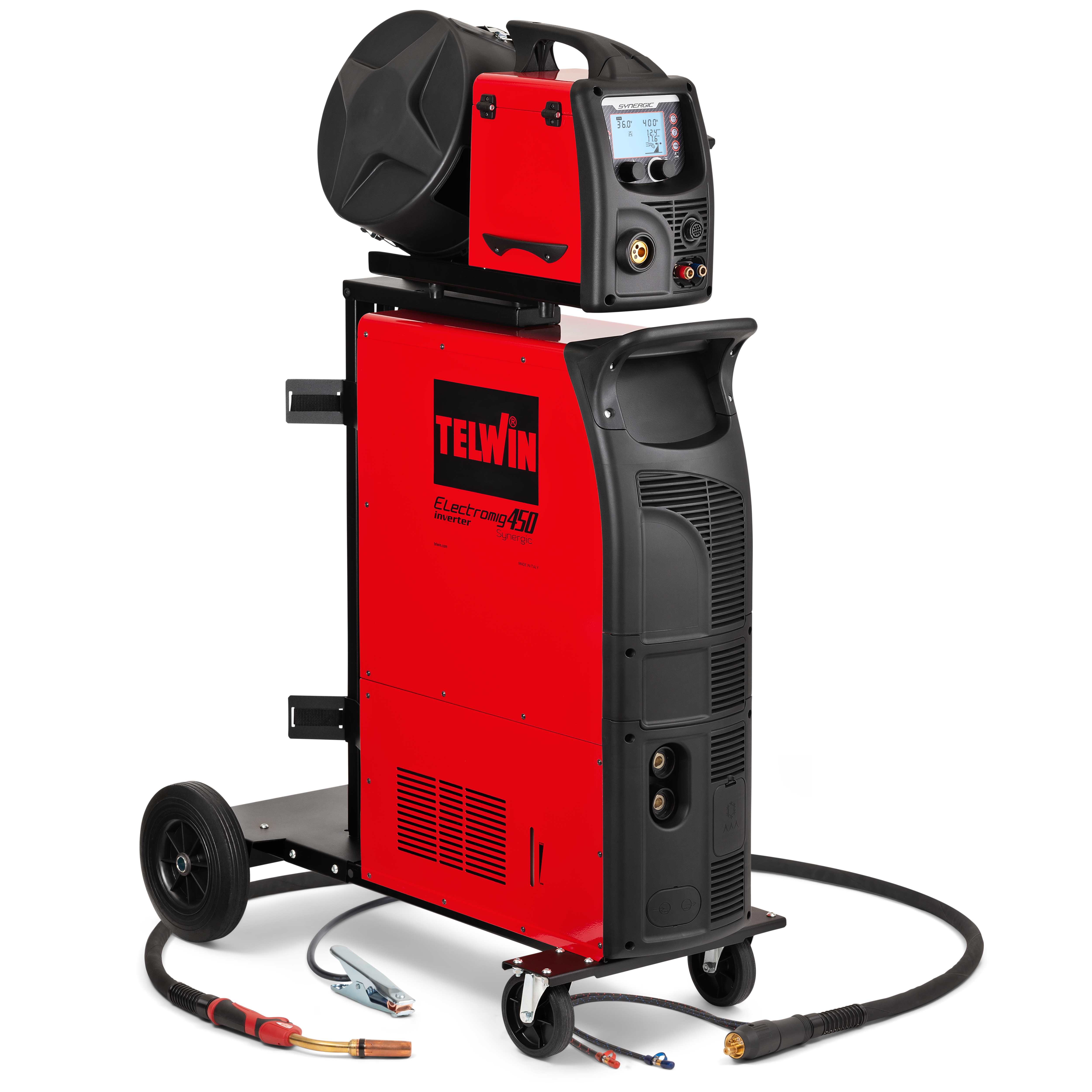

Multiprocess inverter welding machine (MIG-MAG/FLUX gas shielded/BRAZING/MMA/TIG DC-Lift) with external 4-roller wire feeder and water cooling unit, 400A. 3ph 230/400V power supply.
OneTouch synergic adjustment: easy to use. 40 pre-set synergic curves for various gases and materials. Possibility of creating, saving and retrieving customised welding programs.
ATC (Advanced Thermal Control) to facilitate welding on thin materials.
Ample, immediate and easy reading LCD display.
High performance with reduced consumption.

Multiprocess inverter welding machine (MIG-MAG/FLUX gas shielded/BRAZING/MMA/TIG DC-Lift) with external 4-roller wire feeder and water cooling unit, 400A. 3ph 230/400V power supply.
OneTouch synergic adjustment: easy to use. 40 pre-set synergic curves for various gases and materials. Possibility of creating, saving and retrieving customised welding programs.
ATC (Advanced Thermal Control) to facilitate welding on thin materials.
Ample, immediate and easy reading LCD display.
High performance with reduced consumption.

MIG-MAG/FLUX gas shielded/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine, with 4-roller wire feeder.
Flexible use with various welded materials (steel, stainless steel, aluminium) or brazed materials (galvanised sheet metal).
Wide variety of application fields, from industry to maintenance, installation to bodywork activities. Synergic adjustment makes the product simple to use. The Made in Telwin ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.
Features:

Manual or synergic operating;
40 pre-set synergic curves;
Possibility of creating, saving and retrieving customised welding programs;
MIG-MAG adjustments: wire up slope, electronic reactance, wire burn-back time, post gas;
2/4 time operation selection, Bi-Level, spot, inch and mm material thicknesses;
Adjustments in MMA: hot start, arc force, anti-stick;
VRD selection;
Protections: thermostatic, overvoltage, undervoltage, overcurrent, engine driven generator (+/-15%);
TIG Lift.

Complete with 4m MIG-MAG torch, cable and earth clamp and water cooling unit.

CODE

816891

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

MAX NO LOAD VOLTAGE

106 / 73 V

CURRENT RANGE

20 - 320 / 20 - 400 A

MAX CURRENT

320 @ 25% / 400 @ 30% A

DC CURRENT

200 / 270 A

MAX ABSORBED CURRENT

33 / 25 A

ABSORBED CURRENT AT 60%

17 / 15 A

MAX ABSORBED POWER

12,6 / 16,5 kW

ABSORBED POWER AT 60%

6,4 / 9,4 kW

EFFICIENCY

89 %

POWER FACTOR

0,9

D. USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMETER

0,6 - 2 mm

INOX WELDING WIRE DIAMETER

0,8 - 2 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDING WIRE DIAM.

1 - 2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS

103 x 51 x 145 cm

WEIGHT

85 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

GRA 5500 WATER COOLING UNIT

804058

CONNECTING CABLE 70MMQ 1.5M AQUA

804293

MT500 MIG TORCH 4M AQUA

804599

TE 450 WIRE FEEDER

806291

ELECTROMIG 450 SYN. POWERSOURCE

816290
