INVERPULSE 60.30 WAVE AQUA

New
Add to comparison

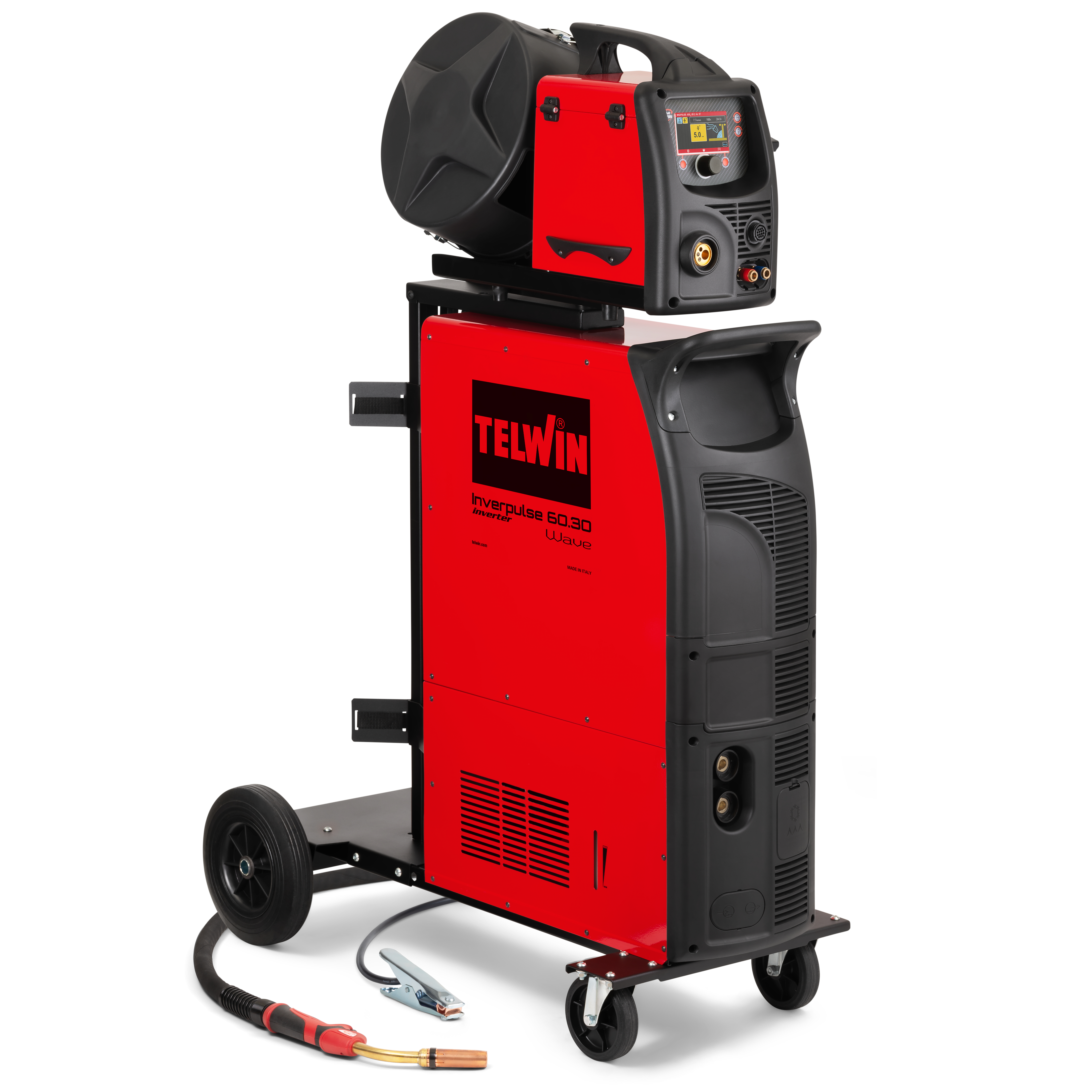

INVERPULSE 60.30 WAVE AQUA

Download PDF Request Info
  • Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), with external 4-roller wire feeder, 400A. 3ph 230/400V power supply. With AQUA cooling unit.
  • Wave OS operating system. EASY and EXPERT mode (customisable work environment).
  • Possibility of working on various welded or brazed materials in pulse and double pulse (PULSE and POP)
  • Advanced welding arcs for specific applications (ROOT-MIG, ATC, DEEP MIG). Possibility of creating, saving and retrieving customised welding programs.
  • User-friendly interface with TFT colour screen for simplified interaction with the product.
  • Welding operations are traceable and analysable, by saving data via USB or on a cloud platform (optional)
  • High performance with reduced consumption.
  • Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), with external 4-roller wire feeder, 400A. 3ph 230/400V power supply. With AQUA cooling unit.
  • Wave OS operating system. EASY and EXPERT mode (customisable work environment).
  • Possibility of working on various welded or brazed materials in pulse and double pulse (PULSE and POP)
  • Advanced welding arcs for specific applications (ROOT-MIG, ATC, DEEP MIG). Possibility of creating, saving and retrieving customised welding programs.
  • User-friendly interface with TFT colour screen for simplified interaction with the product.
  • Welding operations are traceable and analysable, by saving data via USB or on a cloud platform (optional)
  • High performance with reduced consumption.
MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter multiprocess welding machine with 4 rolls wire feeder.
The WAVE OS system makes welding operations: customisable to suit customer-specific requirements; traceable and analysable, by saving data via USB; simplified, thanks to SYNERGIC adjustment of parameters.
It is possible to operate on different welded materials (steel, stainless steel, aluminium), brazed materials (galvanised and zinc-plated sheet metal) in pulse and double pulse and with advanced welding arcs (ROOT-MIG, ATC, DEEP MIG (PULSE and POP), AB PULSE, AB POP).
Complete with VRD device.
Supplied with various stored welding programs, it is also possible to store, trace and export more customized programs.
Complete with MIG-MAG 4M torch, cable and earth clamp and water cooling unit.

CODE

816976

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

MAX NO LOAD VOLTAGE

106 / 73 V

CURRENT RANGE

20 - 320 / 20 - 400 A

DC CURRENT

200 / 270 A

MAX ABSORBED CURRENT

33 / 25 A

ABSORBED CURRENT AT 60%

17 / 15 A

MAX ABSORBED POWER

12,6 / 16,5 kW

ABSORBED POWER AT 60%

6,4 / 9,4 kW

EFFICIENCY

89 %

POWER FACTOR

0,8

D. USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMETER

0,6 - 2 mm

INOX WELDING WIRE DIAMETER

0,8 - 2 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDING WIRE DIAM.

1 - 2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS

103 x 51 x 145 cm

WEIGHT

87 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Software/App

Download File

MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter multiprocess welding machine with 4 rolls wire feeder.
The WAVE OS system makes welding operations: customisable to suit customer-specific requirements; traceable and analysable, by saving data via USB; simplified, thanks to SYNERGIC adjustment of parameters.
It is possible to operate on different welded materials (steel, stainless steel, aluminium), brazed materials (galvanised and zinc-plated sheet metal) in pulse and double pulse and with advanced welding arcs (ROOT-MIG, ATC, DEEP MIG (PULSE and POP), AB PULSE, AB POP).
Complete with VRD device.
Supplied with various stored welding programs, it is also possible to store, trace and export more customized programs.
Complete with MIG-MAG 4M torch, cable and earth clamp and water cooling unit.

CODE

816976

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

MAX NO LOAD VOLTAGE IN DC

106 / 73 V

CURRENT RANGE IN DC

20 - 320 / 20 - 400 A

DC CURRENT AT 60%

200 / 270 A

MAX ABSORBED CURRENT

33 / 25 A

ABSORBED CURRENT AT 60%

17 / 15 A

MAX ABSORBED POWER

12,6 / 16,5 kW

ABSORBED POWER AT 60%

6,4 / 9,4 kW

EFFICIENCY

89 %

POWER FACTOR(cosphi) (cosphi)

0,8

D.USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMET.

0,6 - 2 mm

INOX WELDI.WIRE DIAMETER

0,8 - 2 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDI.WIRE DIA.

1 - 2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

103 x 51 x 145 cm

WEIGHT

87 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Software/App

Download File

GRA 5500 WATER COOLING UNIT

804058

CONNECTING CABLE 70MMQ 1.5M AQUA

804293

MT500 MIG TORCH 4M AQUA

804599

TI 60.30 WIREFEEDER

806275

INVERPULSE 60.30 WAVE P.SOURCE

816275

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 35MMQ 4M AX50

804124
REMOTE CONTROLS

RC-20 10 M CONTROL 2POT

802336
OTHER ACCESSORIES

TWO GASBOTTLE HOLDER KIT

803067
GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

QUICK GAS CONNECTOR

804208
MIG/MAG WELDING KITS

ALUMINIUM WELDING KIT D. 1-1,6 MM

802409

FLUX CORED WIRE WELDING KIT D. 1-2,4 MM

802276
MIG - AQUA TORCHES

MT240 MIG TORCH 4M AQUA

742996

MT500 MIG TORCH 4M AQUA

742821

MT500 MIG TORCH 5M AQUA

722683

MT555 DC MIG TORCH 4M AQUA

742881
WIRE FEEDERS AND ACCESSORIES

WIRE FEEDER WHEELS KIT

804224

COIL ADAPTOR B-300

802486
MIG CONNECTION CABLES

CONNECTING CABLE 70MMQ 4M AQUA

802398

CONNECTING CABLE 70MMQ 10M AQUA

802399
OTHER MIG ACCESSORIES

PUSH PULL BOARD KIT

982219

MULTIPURPOSE BRACKET KIT FOR GENERATOR

804403
TIG TORCHES

ST26V 4M AX50 TIG TORCH

742058
WATER COOLING UNITS

COOLANT FOR COOLING SYSTEMS

802976
ACCESSORIES/VARIOUS/SPARE PART

MMA WELDING KIT 350A 35 MMQ 4+3M AX50

801095
