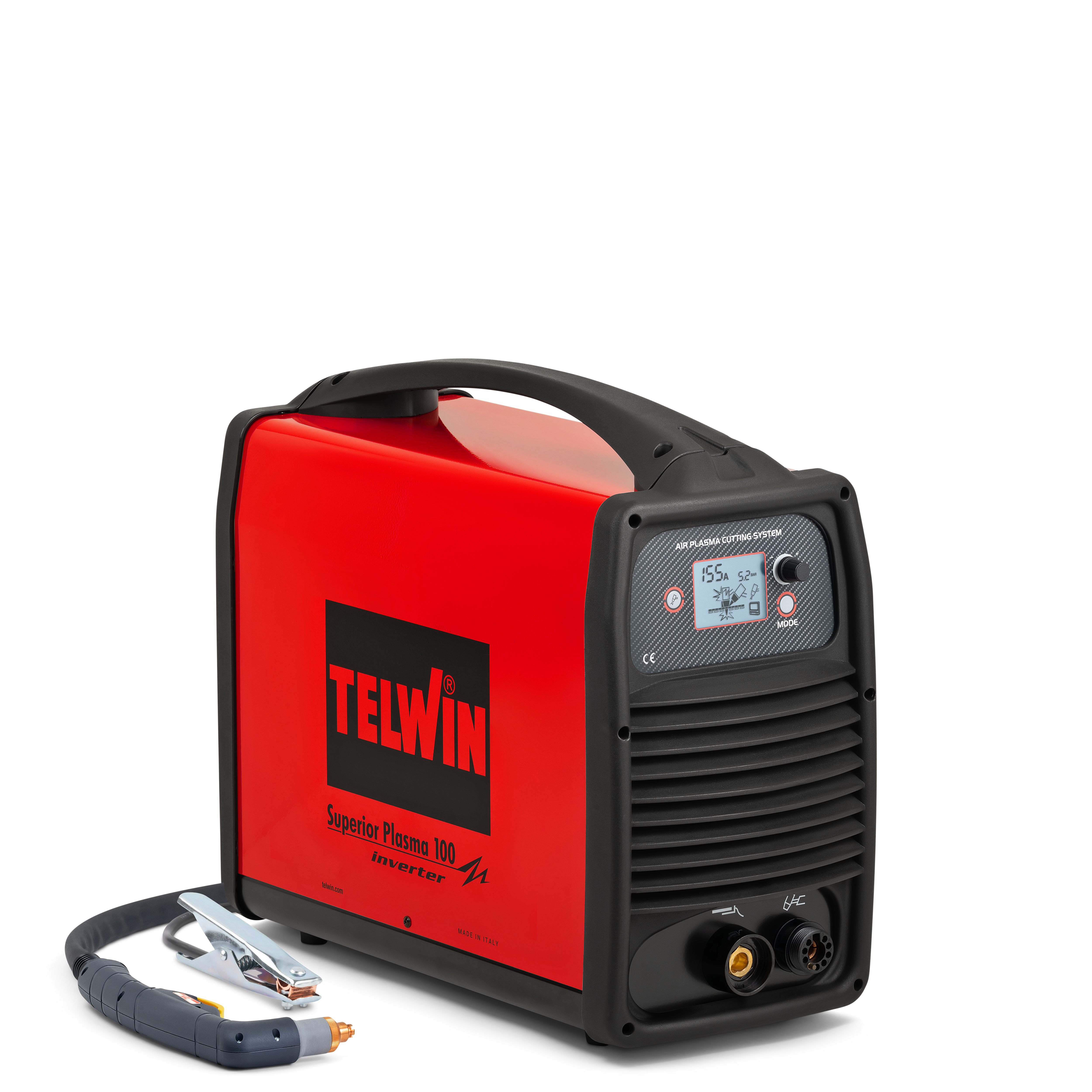

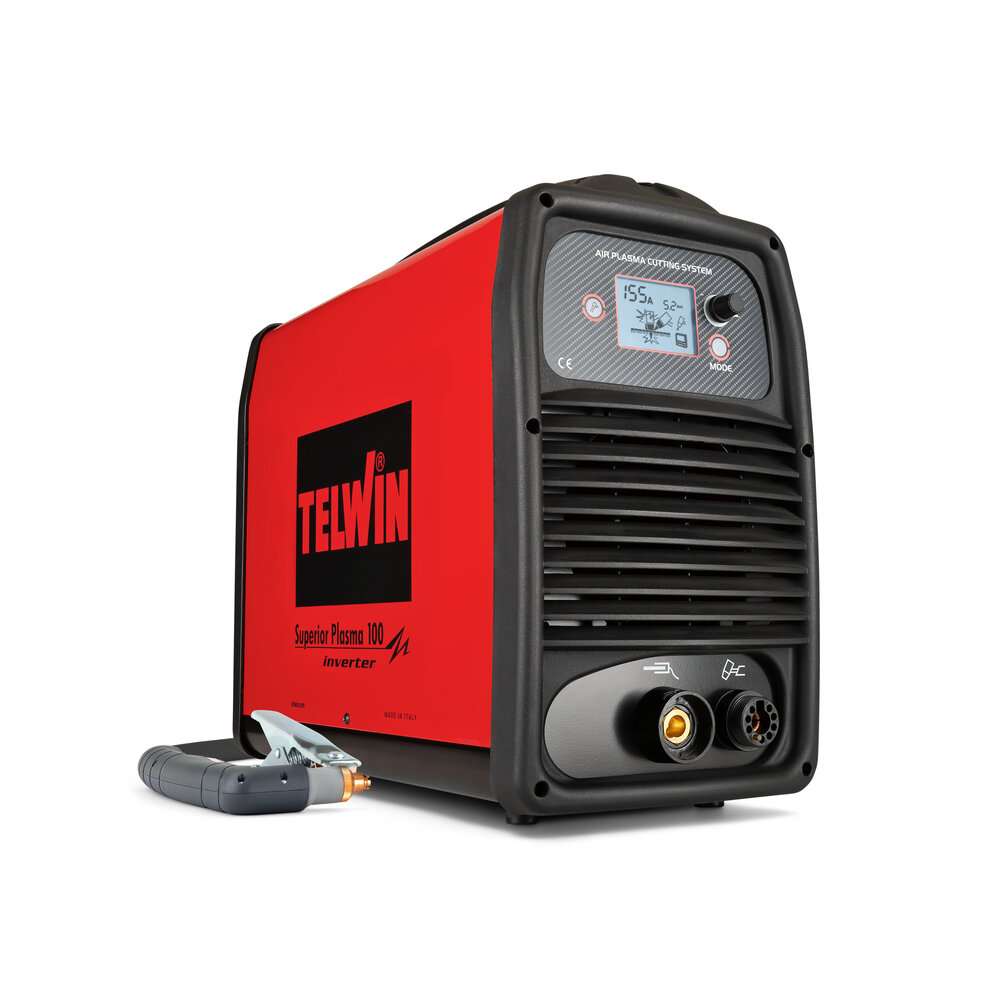

SUPERIOR PLASMA 100

Add to comparison
Add to comparison
Add to comparison
Add to comparison
Add to comparison
Add to comparison
Add to comparison
Add to comparison

SUPERIOR PLASMA 100

Download PDF Request Info
  • 100A plasma cutting inverter system with compressed air and strike on contact of the pilot arc. Integrated connection interface with automated cutting systems. 3ph 230/400V power supply. With PV 105 torch.
  • Max. cut 40 mm. Advanced functions: grid cutting, 4T cut and gouging of all the conductor materials.

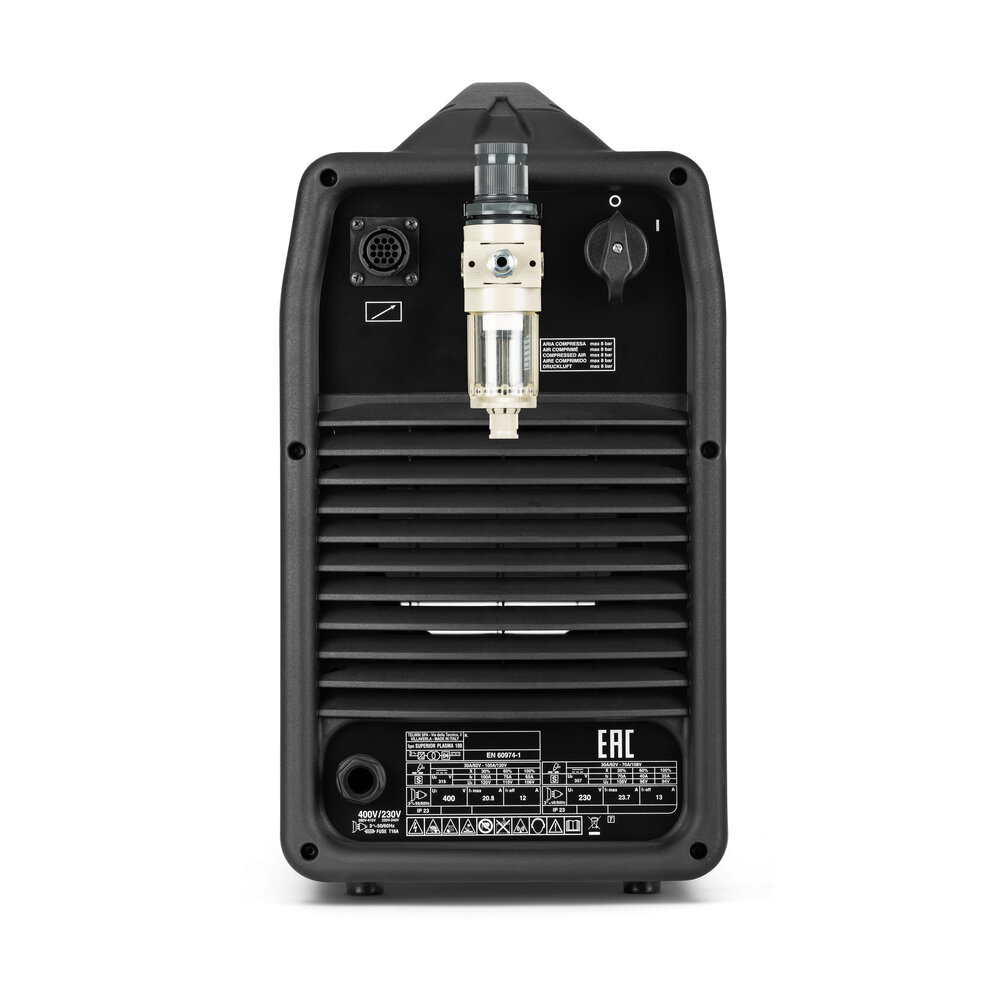

  • Interfacing with automated cutting systems is also an option. Specific connector to set the various control signals of the cutting process. Compatible with remote control.
  • High stability cutting current.

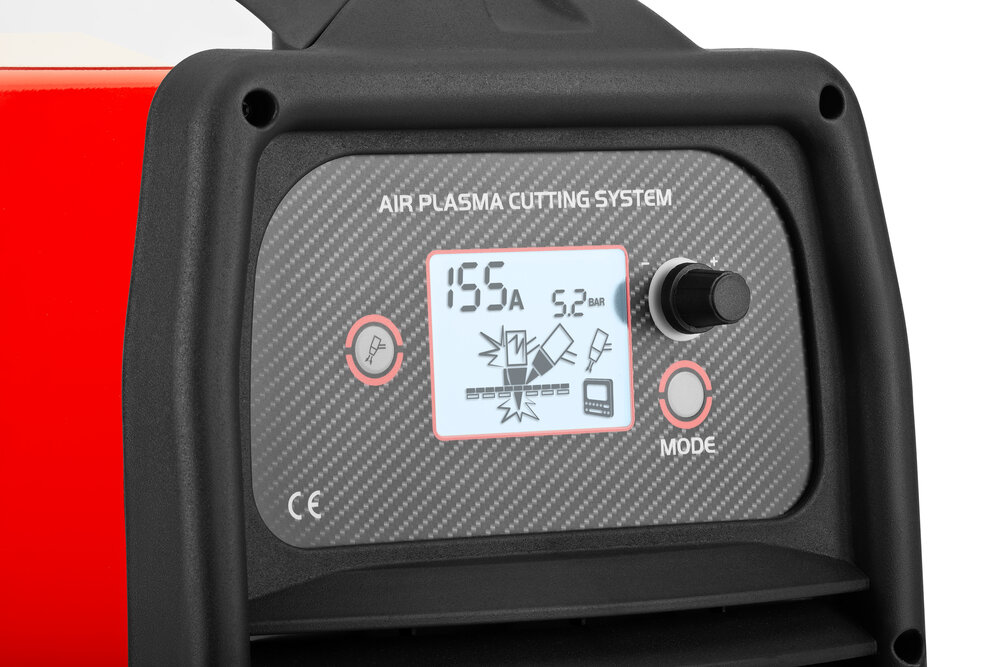

  • LCD display for simple reading and adjustment.
  • Thermostatic, overvoltage, undervoltage, overcurrent protection, circuit in torch, phase failure, no air protection.
  • 100A plasma cutting inverter system with compressed air and strike on contact of the pilot arc. Integrated connection interface with automated cutting systems. 3ph 230/400V power supply. With PV 105 torch.
  • Max. cut 40 mm. Advanced functions: grid cutting, 4T cut and gouging of all the conductor materials.
  • Interfacing with automated cutting systems is also an option. Specific connector to set the various control signals of the cutting process. Compatible with remote control.
  • High stability cutting current.
  • LCD display for simple reading and adjustment.
  • Thermostatic, overvoltage, undervoltage, overcurrent protection, circuit in torch, phase failure, no air protection.

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting, grid cutting and gauging of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
It allows interfacing with automated cutting systems.
Features:

  • easy to carry;
  • high cutting current stability;
  • user-friendly easy to read and adjust digital panel;
  • remote control;
  • thermostatic, overvoltage, undervoltage, overcurrent, torch short circuit, phase and air failure protections.

Complete with PV 105 torch.

CODE

816173

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

MAX CUTTING CURRENT EN60974-1

100 @ 30 % A

CURRENT CONTROL RANGE DC

30 - 100 A

CUTTING CURRENT 60%

75 A

CUTTING CURRENT 100%

65 A

MAX ABSORBED CURRENT

20,8 A

RANGE V OUT

80 - 220 V

MAX NO LOAD VOLTAGE

315 V

MAX ABSORBED POWER

13,5 kW

FUSE

10 A

EFFICIENCY

87 %

MAX CUTTING THICKNESS

40 mm

COMPRESSED AIR CAPACITY

240

COMPRESSED AIR PRESSURE

4 - 5 bar

SUPPLY CABLE LENGTH

2,3 m

NORM

EN 60974-1 /-10

PROTECTION DEGREE

IP23

DIMENSIONS

53 x 24 x 45 cm

WEIGHT

28 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

brochure

Download PDF

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting, grid cutting and gauging of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
It allows interfacing with automated cutting systems.
Features:

  • easy to carry;
  • high cutting current stability;
  • user-friendly easy to read and adjust digital panel;
  • remote control;
  • thermostatic, overvoltage, undervoltage, overcurrent, torch short circuit, phase and air failure protections.

Complete with PV 105 torch.

CODE

816173

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

MAX CUTTING CURRENT EN60974-1

100 @ 30 % A

CURRENT CONTROL RANGE DC

30 - 100 A

CUTTING CURRENT 60%

75 A

CUTTING CURRENT 100%

65 A

MAX ABSORBED CURRENT

20,8 A

RANGE V OUT

80 - 220 V

MAX NO LOAD VOLTAGE

315 V

MAX ABSORBED POWER

13,5 kW

FUSE

10 A

EFFICIENCY

87 %

MAX CUTTING THICKNESS

40 mm

COMPRESSED AIR CAPACITY

240

COMPRESSED AIR PRESSURE

4 - 5 bar

SUPPLY CABLE LENGTH

2,3 m

NORM

EN 60974-1 /-10

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

53 x 24 x 45 cm

WEIGHT

28 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

brochure

Download PDF

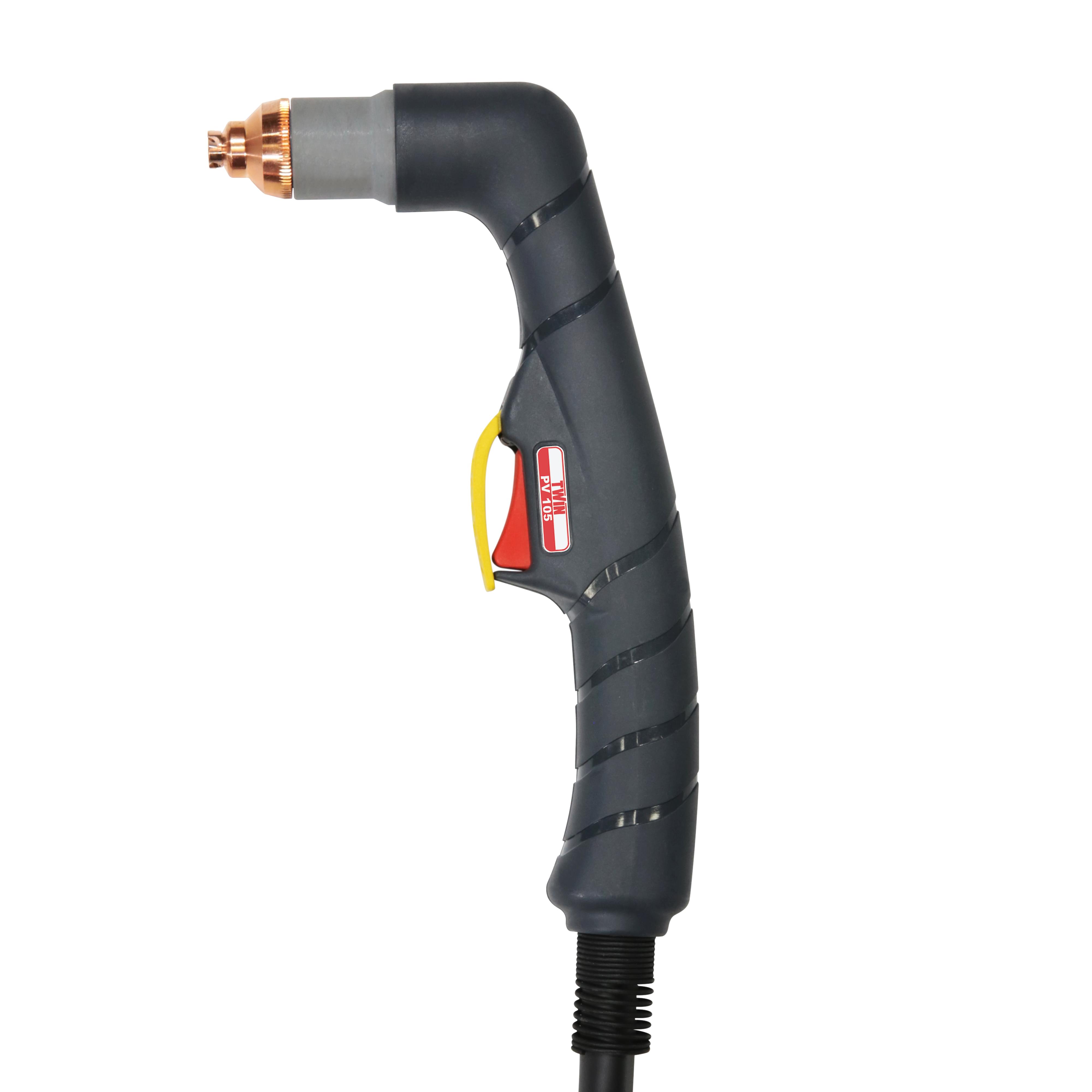

PV 105 PLASMA TORCH 6M

804341

SUPERIOR PLASMA 100

816072

PLASMA TORCHES

PXA PLASMA TORCH 12 M

802955
OTHER PLASMA ACCESSORIES

MMS-10 MOISTURE & MIXTURE STOP FILTER

804340

MMS-10 AIR FILTER CARTRIDGES 4 PCS

804343

CONNECTING CABLE CNC 10M

804976
TROLLEYS AND ACCESSORIES

TROLLEY - EUROPA

803073

Superior Plasma

FOR SUPERIOR CUTTING QUALITY

Everything you need from a plasma cutting system.

And much more.

The Superior Plasma range combines efficiency and flexibility (manual and automated cutting) with excellent quality and superior reliability in plasma cutting.
Pure power, no task will ever be a problem again.
Intuitive setting and easy to use, it takes full advantage of the potential of the Superior Plasma.

  • performance: among the best in its category;
  • versatile: manual use and with automatic cutting systems;
  • intuitive: simple interaction and setting;
  • compact: compact and strong design, to adapt to all types of environments, even the most hostile ones;
  • quality: clean and precise cut.

VERSATILITY

One system, multiple application

The Superior Plasma range is designed for optimised manual cutting and automated cutting systems, thanks to the integrated connection interface.

Advanced functions

 grid cutting: arc remains on even when there is no contact with the material to be cut

 4T cutting: once cutting has started, the torch button can be released

 gouging: the technology implemented in the Superior Plasma models enables use of the same torch for the gouging function

Maximum interference-free workability
The strike system without HF allows work in environments with sensitive tools without creating interference and without restricting cutting configurations.

Operations guaranteed anywhere
The wide voltage range guarantees use with engine driven generators up to +/-15%.

Designed to last
Compact and robust, it gives optimum performance in particularly heavy working conditions and difficult environments.

POWER

It cuts more, faster and longer

A performing duty cycle that enables continuous use also on automated systems

“Superior” power

Maximum cutting capacity up to 50mm on steel.

EFFICIENCY

Energy saving, precision and faster cut.

Longer lifetime for consumables
The Superior Plasma range was designed to optimise the average life of consumables with a significant reduction in system downtime

More precise and cleaner cut
The Superior Plasma series guarantees greater precision cutting with reduced re-working times

Energy saving
Reduced energy consumption (up to -30%).

Increasingly faster cut
Cutting speed more than doubled compared to oxy-cutting.

EASY USE

Easy to interface and automatic recognition of the torch

Immediate connection to automatic cutting systems
Easy to interface with CNC systems thanks to the specific connector to set the various control signals of the cutting process

Automatic torch detection
All models in the Superior Plasma series include automatic recognition of the Plug and Play torch (manual and automatic).

Simplified adjustment
Easy to adjust thanks to the LCD display
with immediate recognition of the various functions.

Multivoltage
Automatic selection of power supply voltage.
