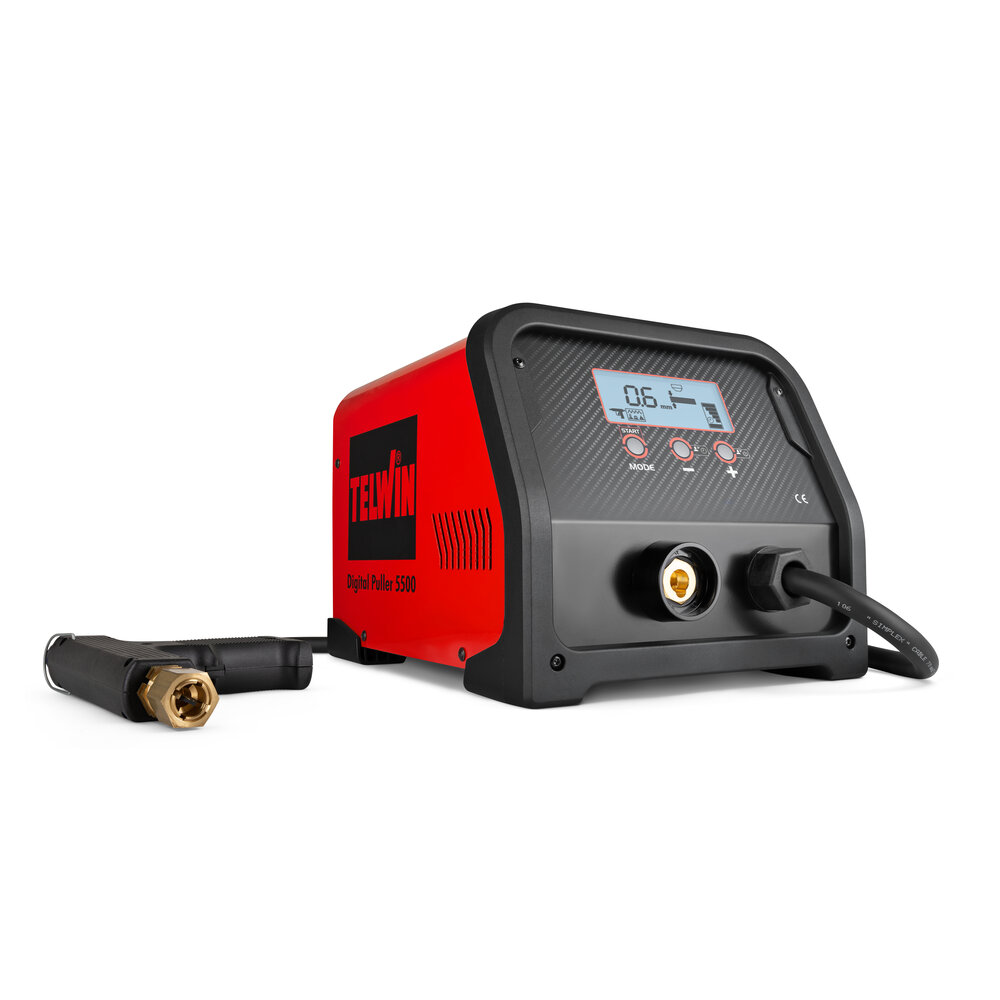

DIGITAL PULLER 5500

DIGITAL PULLER 5500

Download PDF Request Info

Puller suitable for straightening and repairing steel sheets indicated for bodyshop works. With automatic gun, earth cable with pointing mass, puller, spindle and pulling stars.
The multi-functional LCD digital panel allows automatic adjustment of the parameters based on the choice of tool.
16A mains fuse.

Puller suitable for straightening and repairing steel sheets indicated for bodyshop works. With automatic gun, earth cable with pointing mass, puller, spindle and pulling stars.
The multi-functional LCD digital panel allows automatic adjustment of the parameters based on the choice of tool.
16A mains fuse.

Microprocessor controlled, electronic system for repairing of metal sheets, fit for applications in car body shops.

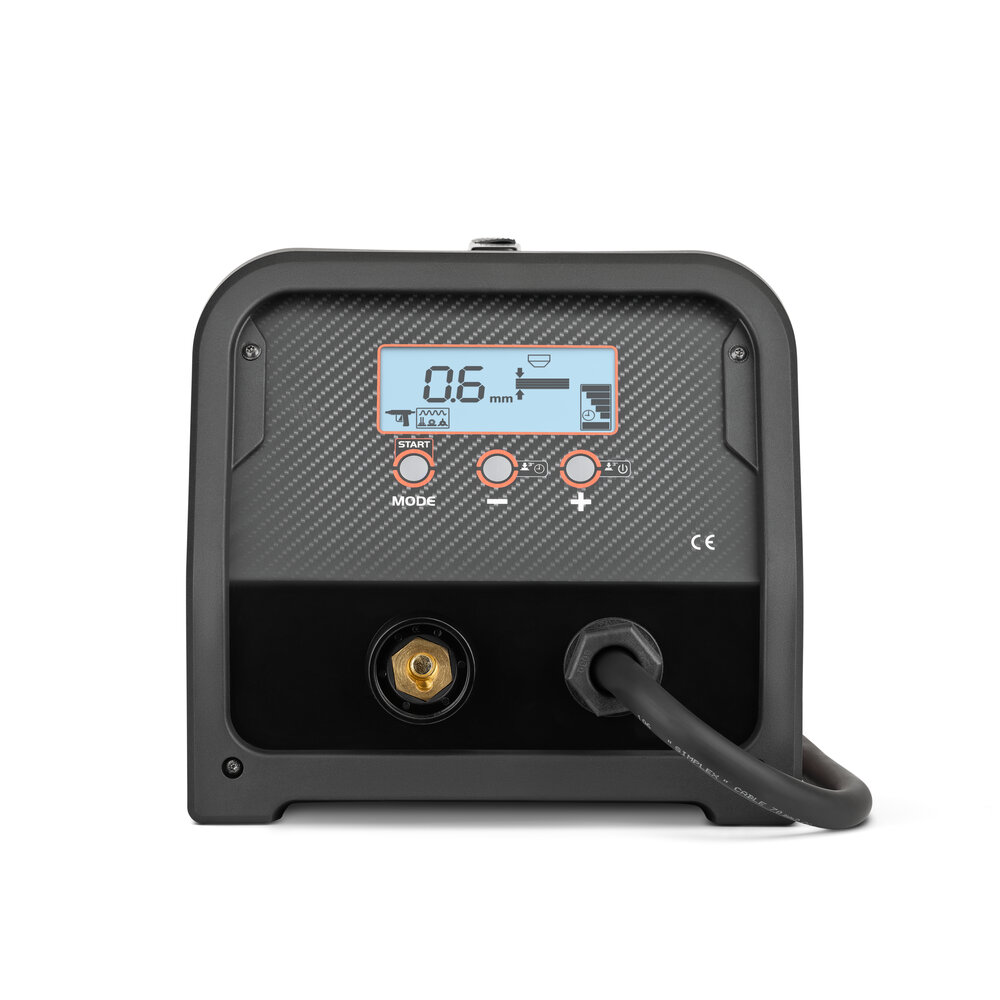

The LCD digital, multifunction control panel allows the automatic regulation of the spot welding parameters according to the chosen tool.

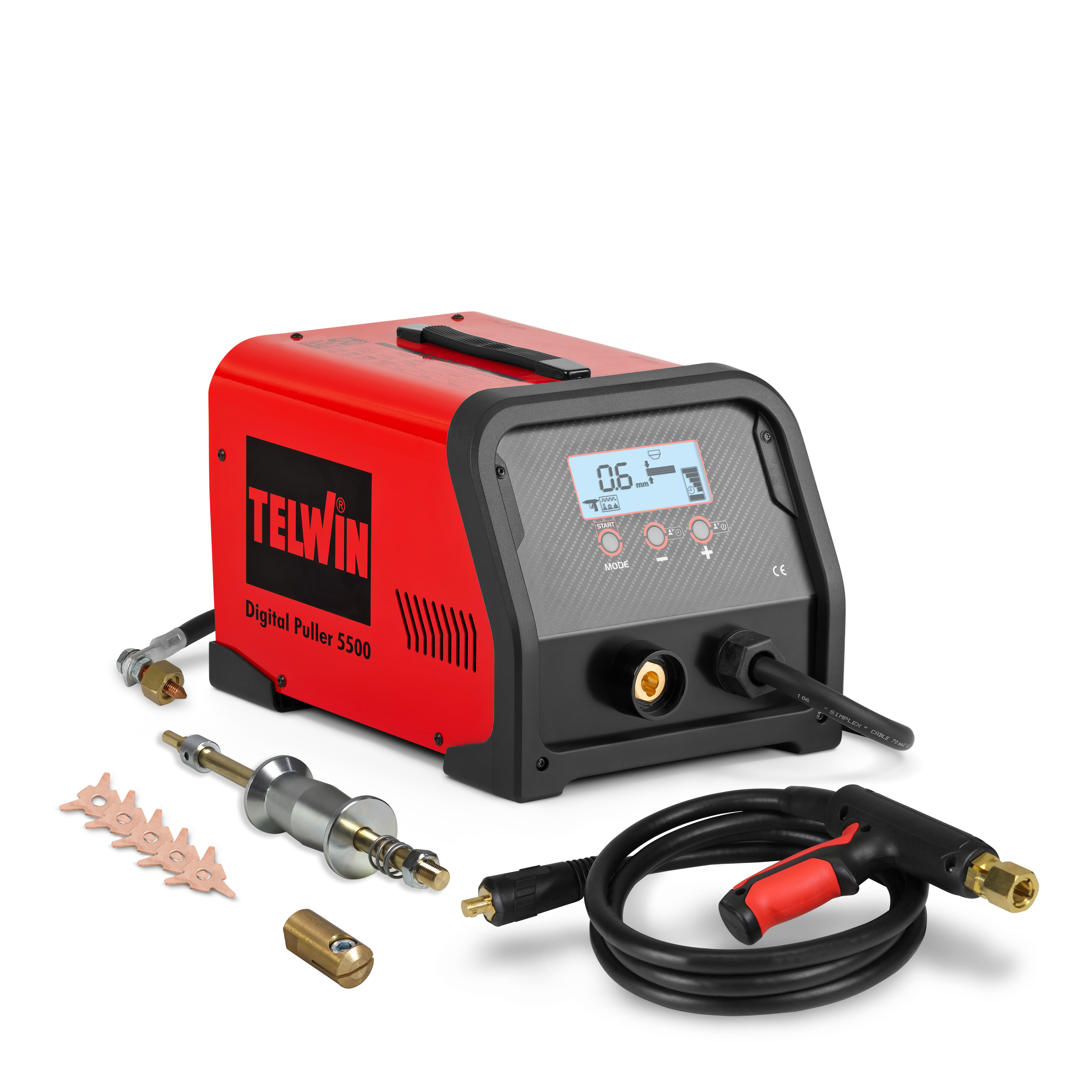

Complete with:

automatic gun;
work cable with pointing mass;
extractor;
spindle;
pulling stars.

CODE

828127

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

PEAK SPOT-WELDING CURRENT

3800 A

MAX NO LOAD VOLTAGE

5,6 V

MAX ABSORBED POWER

10,5 kW

RATED POWER X=50%

1,8 kW

POWER FACTOR

0,8

MAX SPOT-WELDING CURRENT

2500 A

DUTY CYCLE

1,5 %

PROTECTION DEGREE

IP22

DIMENSIONS

39 x 26 x 22,5 cm

WEIGHT

21 kg

Catalog Image

Instruction Manual

Spare Parts List

NAILS EXTRACTOR

WASHER 3 PINS

MANDREL FOR PULLING STARS

SPOT-WELDING CABLE WITH GUN

DENT PULLING CONSUMABLES

STUDDER BOX

TROLLEYS AND ACCESSORIES

TROLLEY - AMERICA

Microprocessor controlled, electronic system for repairing of metal sheets, fit for applications in car body shops.
The LCD digital, multifunction control panel allows the automatic regulation of the spot welding parameters according to the chosen tool.
Complete with:

automatic gun;
work cable with pointing mass;
extractor;
spindle;
pulling stars.

CODE

828127

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

PEAK SPOT-WELDING CURRENT

3800 A

SECONDARY NO LOAD VOLTAGE

5,6 V

MAX ABSORBED POWER

10,5 kW

RATED POWER X=50%

1,8 kW

POWER FACTOR(cosphi) (cosphi)

0,8

RMS SPOT-WELDING CURRENT

2500 A

DUTY CYCLE

1,5 %

PROTECTION DEGREE

IP22

DIMENSIONS (LxWxH)

39 x 26 x 22,5 cm

WEIGHT

21 kg

Catalog Image

Instruction Manual

Spare Parts List

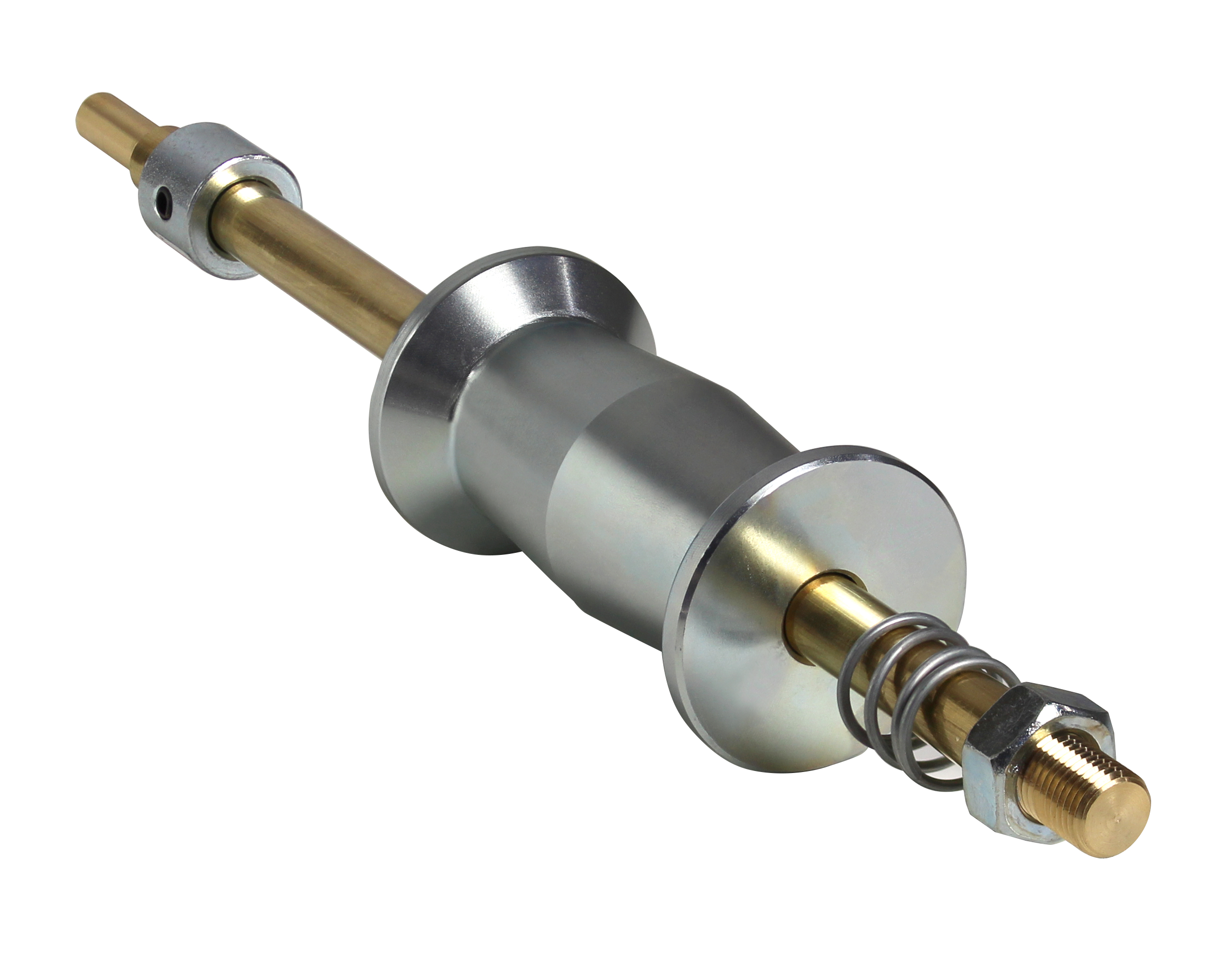

NAILS EXTRACTOR

742709

WASHER 3 PINS

MANDREL FOR PULLING STARS

722954

SPOT-WELDING CABLE WITH GUN

713299

DENT PULLING CONSUMABLES

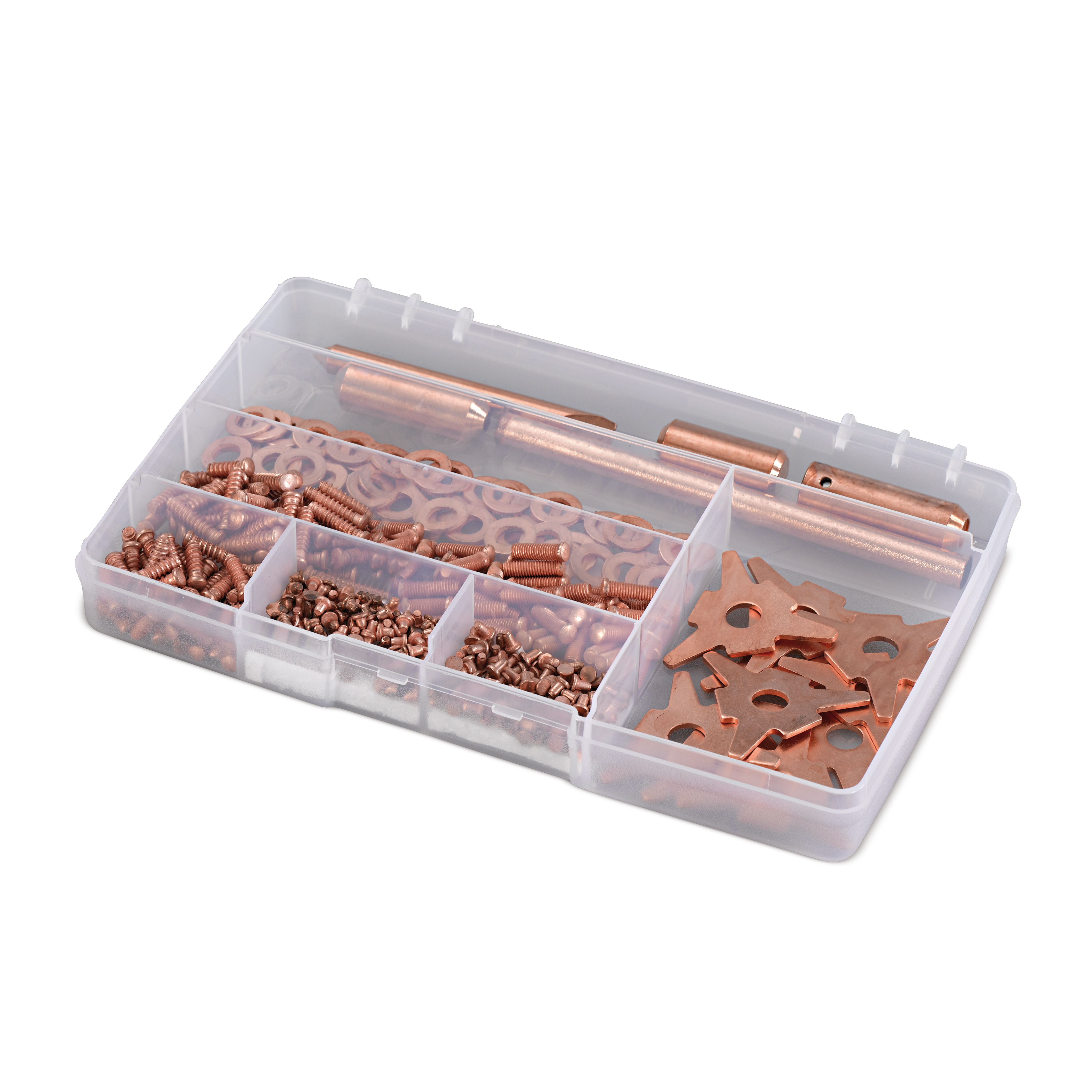

STUDDER BOX

143780

TROLLEYS AND ACCESSORIES

TROLLEY - AMERICA

803084

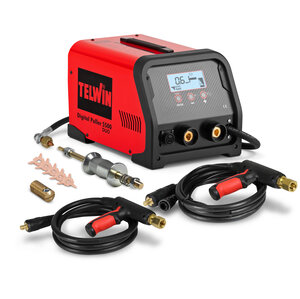

DIGITAL PULLER 5500 DUO
