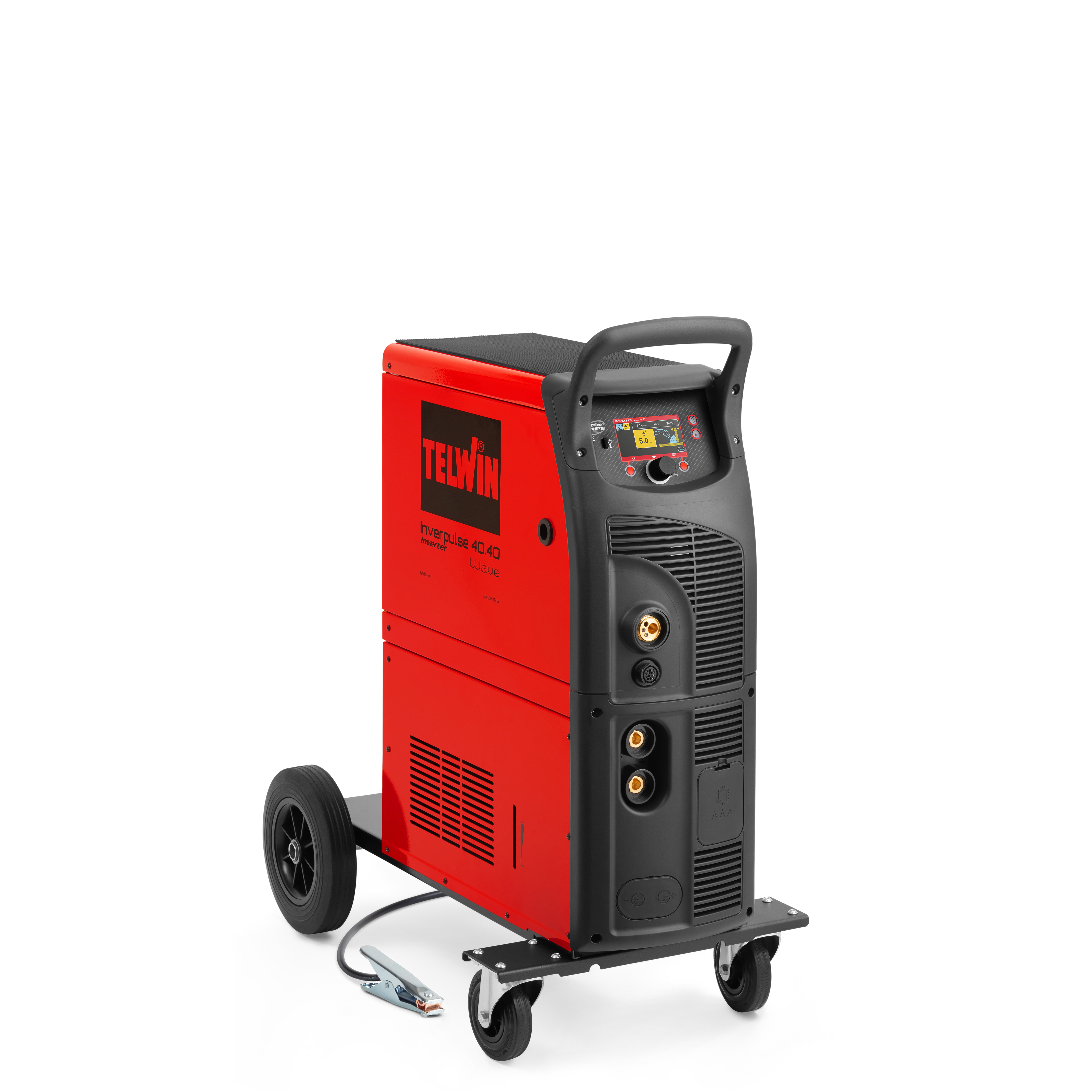

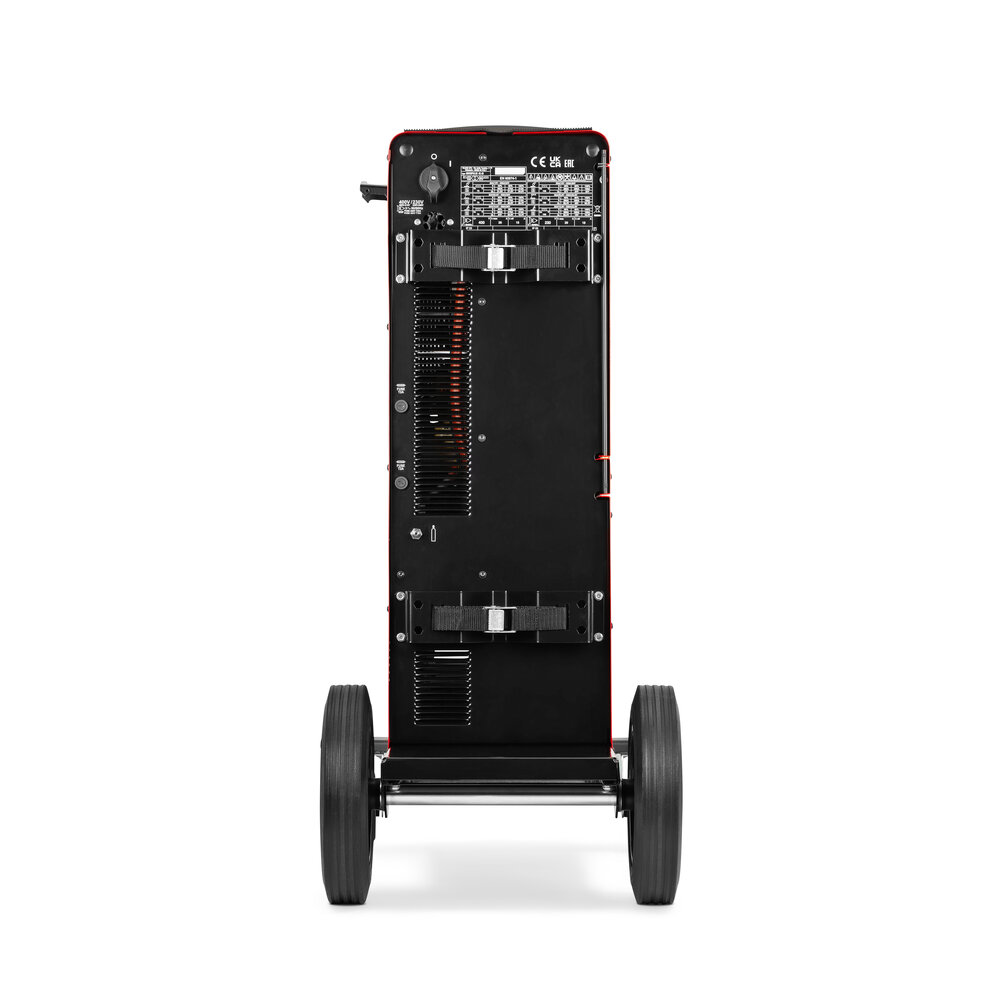

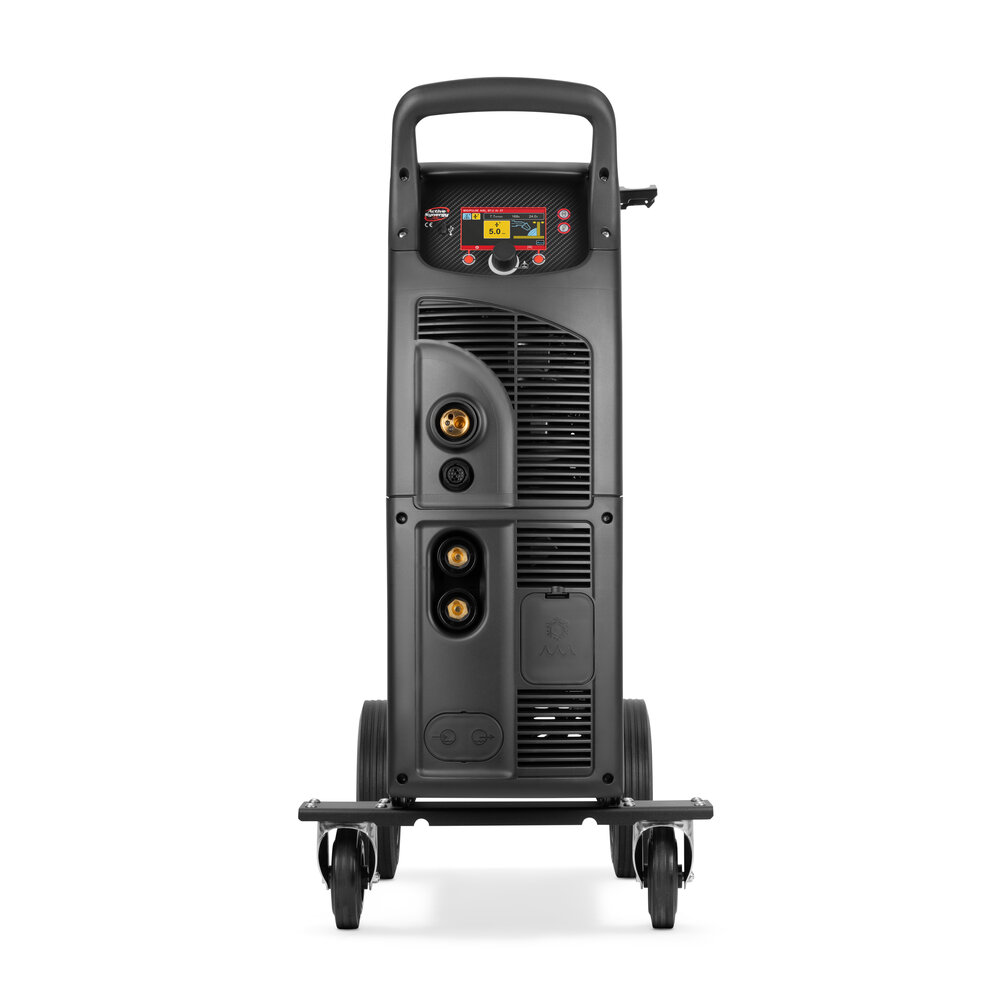

INVERPULSE 40.40 WAVE 230V/400V BASE

Download PDF Request Info
  • Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), with 4-roller wire feeder, 400A. 3ph 230/400V power supply.
  • Wave OS operating system. EASY and EXPERT mode (customisable work environment).
  • Possibility of working on various welded or brazed materials in pulse and double pulse (PULSE and POP)
  • Advanced welding arcs for specific applications (ROOT-MIG, ATC, DEEP MIG). Possibility of creating, saving and retrieving customised welding programs.

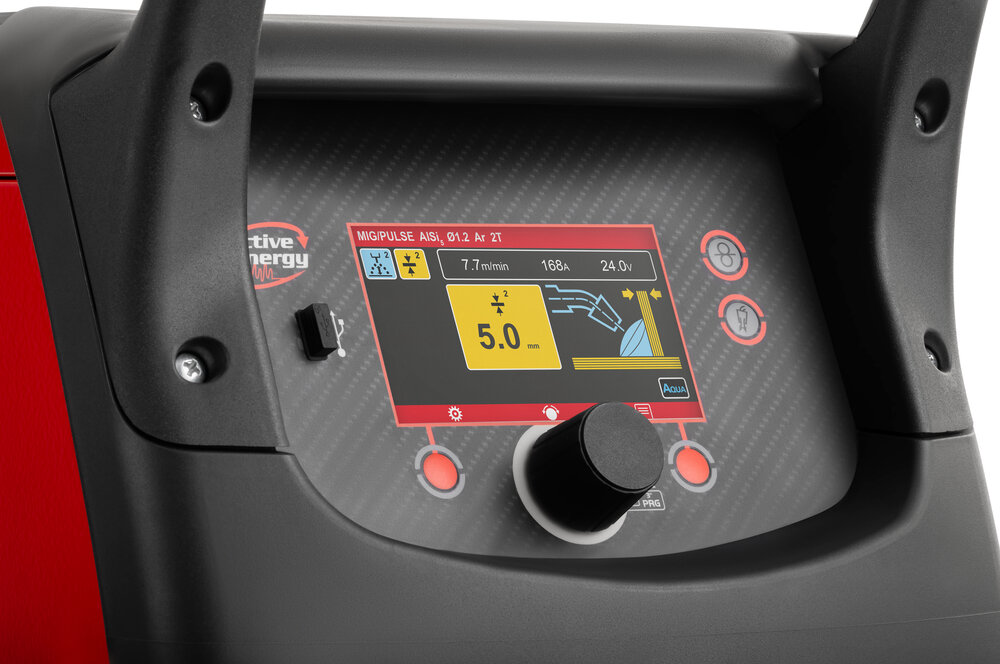

  • User-friendly interface with TFT colour screen for simplified interaction with the product.
  • Welding operations are traceable and analysable, by saving data via USB or on a cloud platform (optional)
  • High performance with reduced consumption.
  • Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), with 4-roller wire feeder, 400A. 3ph 230/400V power supply.
  • Wave OS operating system. EASY and EXPERT mode (customisable work environment).
  • Possibility of working on various welded or brazed materials in pulse and double pulse (PULSE and POP)
  • Advanced welding arcs for specific applications (ROOT-MIG, ATC, DEEP MIG). Possibility of creating, saving and retrieving customised welding programs.
  • User-friendly interface with TFT colour screen for simplified interaction with the product.
  • Welding operations are traceable and analysable, by saving data via USB or on a cloud platform (optional)
  • High performance with reduced consumption.
Microprocessor controlled, multiprocess MIG-MAG (continuous and pulse), FLUX gas shielded /BRAZING/MMA/TIG DC-Lift inverter welding machine with 4 rolls wirefeeder.
The WAVE OS system makes welding operations: customisable to suit customer-specific requirements; traceable and analysable, by saving data via USB; simplified, thanks to the SYNERGIC adjustment of parameters.
Maximum operational flexibility for use in a wide variety of application sectors, from maintenance to installation and interventions at body shops.
It is possible to operate on different welded materials (steel, stainless steel, aluminium), brazed materials (galvanised and zinc-plated sheet metal) in pulse and double pulse and with advanced welding arcs: ROOT-MIG, ATC, DEEP MIG, PULSE e POP.
The intelligent and automatic control of the arc, instant by instant, will maintain high levels of welding in all working conditions, with different materials and/or gases. Complete with VRD device.
Supplied with various stored welding programmes, it offers the possibility also to store, trace and export more customised programmes.

CODE

816025

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAX CURRENT

350 @ 40% A

RANGE AMP OUT DC

20 - 400 A

CURRENT 60% DC

270 A

CURRENT 100% DC

210 A

MAX ABSORBED CURRENT

26 A

MAX DC NO LOAD VOLTAGE

73 V

RANGE V OUT MIG

10 - 34 V

MAX ABSORBED POWER

15 kW

EFFICIENCY

86 %

D. USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMETER

0,6 - 1,6 mm

INOX WELDING WIRE DIAMETER

0,8 - 1,6 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDING WIRE DIAM.

1 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

WIRE SPEED RANGE

1,5 - 20 m/min

PROTECTION DEGREE

IP23

DIMENSIONS

90 x 47 x 97 cm

WEIGHT

50,5 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Certificate

Download PDF

Software/App

Download File

Microprocessor controlled, multiprocess MIG-MAG (continuous and pulse), FLUX gas shielded /BRAZING/MMA/TIG DC-Lift inverter welding machine with 4 rolls wirefeeder.
The WAVE OS system makes welding operations: customisable to suit customer-specific requirements; traceable and analysable, by saving data via USB; simplified, thanks to the SYNERGIC adjustment of parameters.
Maximum operational flexibility for use in a wide variety of application sectors, from maintenance to installation and interventions at body shops.
It is possible to operate on different welded materials (steel, stainless steel, aluminium), brazed materials (galvanised and zinc-plated sheet metal) in pulse and double pulse and with advanced welding arcs: ROOT-MIG, ATC, DEEP MIG, PULSE e POP.
The intelligent and automatic control of the arc, instant by instant, will maintain high levels of welding in all working conditions, with different materials and/or gases. Complete with VRD device.
Supplied with various stored welding programmes, it offers the possibility also to store, trace and export more customised programmes.

CODE

816025

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAX CURRENT DC EN60974-1

350 @ 40% A

RANGE AMP OUT DC

20 - 400 A

CURRENT 60% DC

270 A

CURRENT 100% DC

210 A

MAX ABSORBED CURRENT

26 A

MAX DC NO LOAD VOLTAGE

73 V

RANGE V OUT MIG

10 - 34 V

MAX ABSORBED POWER

15 kW

EFFICIENCY

86 %

D.USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMET.

0,6 - 1,6 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1,6 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDI.WIRE DIA.

1 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

WIRE SPEED RANGE

1,5 - 20 m/min

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

90 x 47 x 97 cm

WEIGHT

50,5 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Certificate

Download PDF

Software/App

Download File

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K"

742576

TORCH HOOK

645704

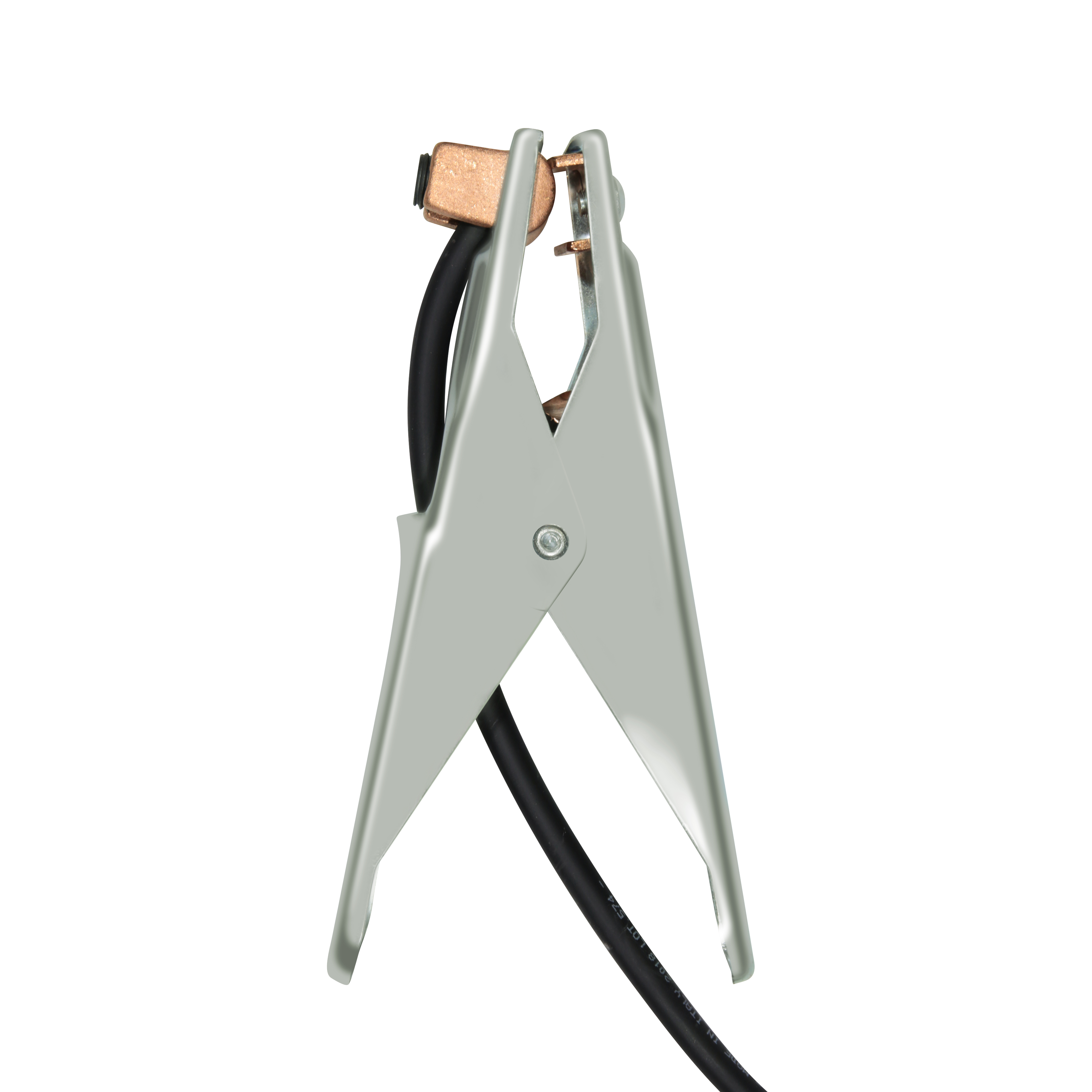

WORK CLAMP + CABLE 35MMQ 3M AX50

804217

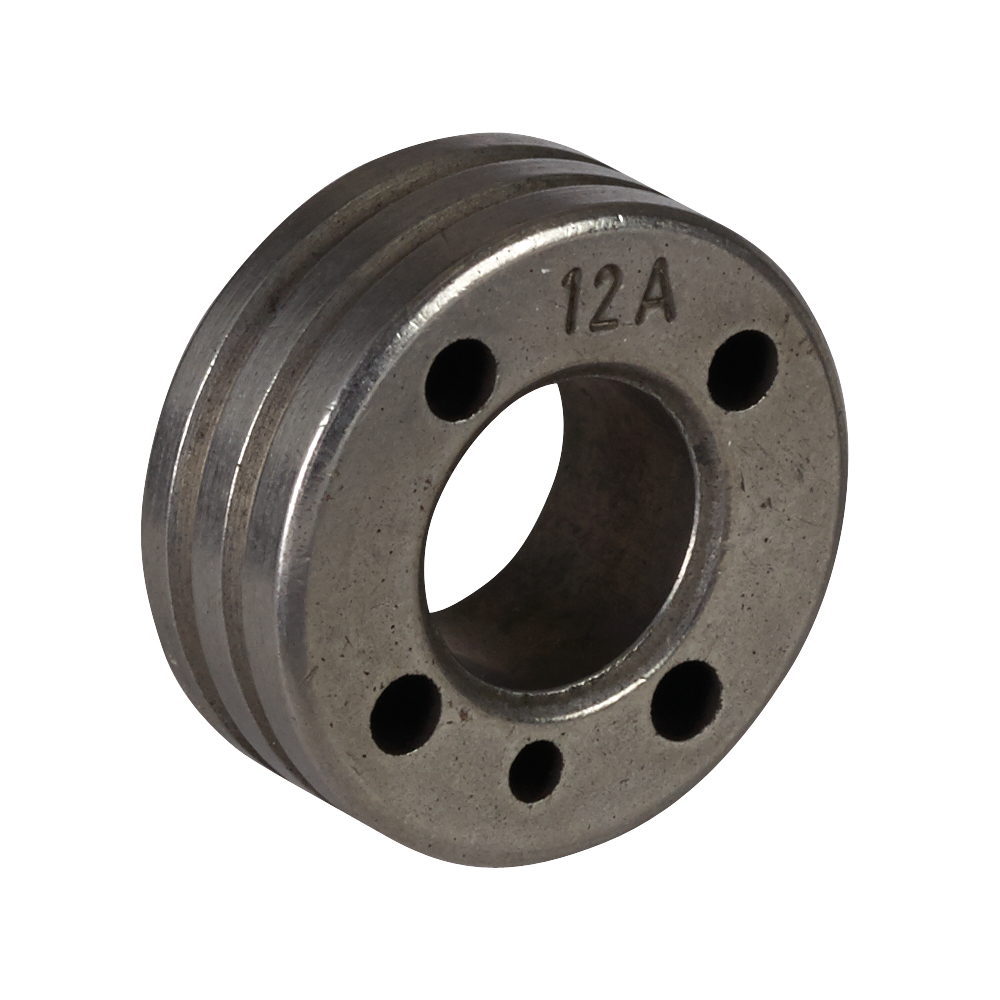

FEED ROLL 4R 1,0FE-1,2FE "P-K"

742366

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 35MMQ 4M AX50

804124
GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

QUICK GAS CONNECTOR

804208
MIG/MAG WELDING KITS

ALUMINIUM WELDING KIT D. 1-1,6 MM

802273

ALUMINIUM WELDING KIT D. 1-1,6 MM

802409
MIG TORCHES

MT36 MIG TORCH 4M

742187

MT36 MIG TORCH 5M

742188
MIG - AQUA TORCHES

MT240 MIG TORCH 4M AQUA

742996

MT500 MIG TORCH 4M AQUA

742821

MT500 MIG TORCH 5M AQUA

722683

MT555 DC MIG TORCH 4M AQUA

742881
WIRE FEEDERS AND ACCESSORIES

COIL ADAPTOR B-300

802486
OTHER MIG ACCESSORIES

PUSH PULL BOARD KIT

982219
TIG TORCHES

ST26V 4M AX50 TIG TORCH

742058
WATER COOLING UNITS

GRA 3300 WATER COOLING UNIT

802942
ACCESSORIES/VARIOUS/SPARE PART

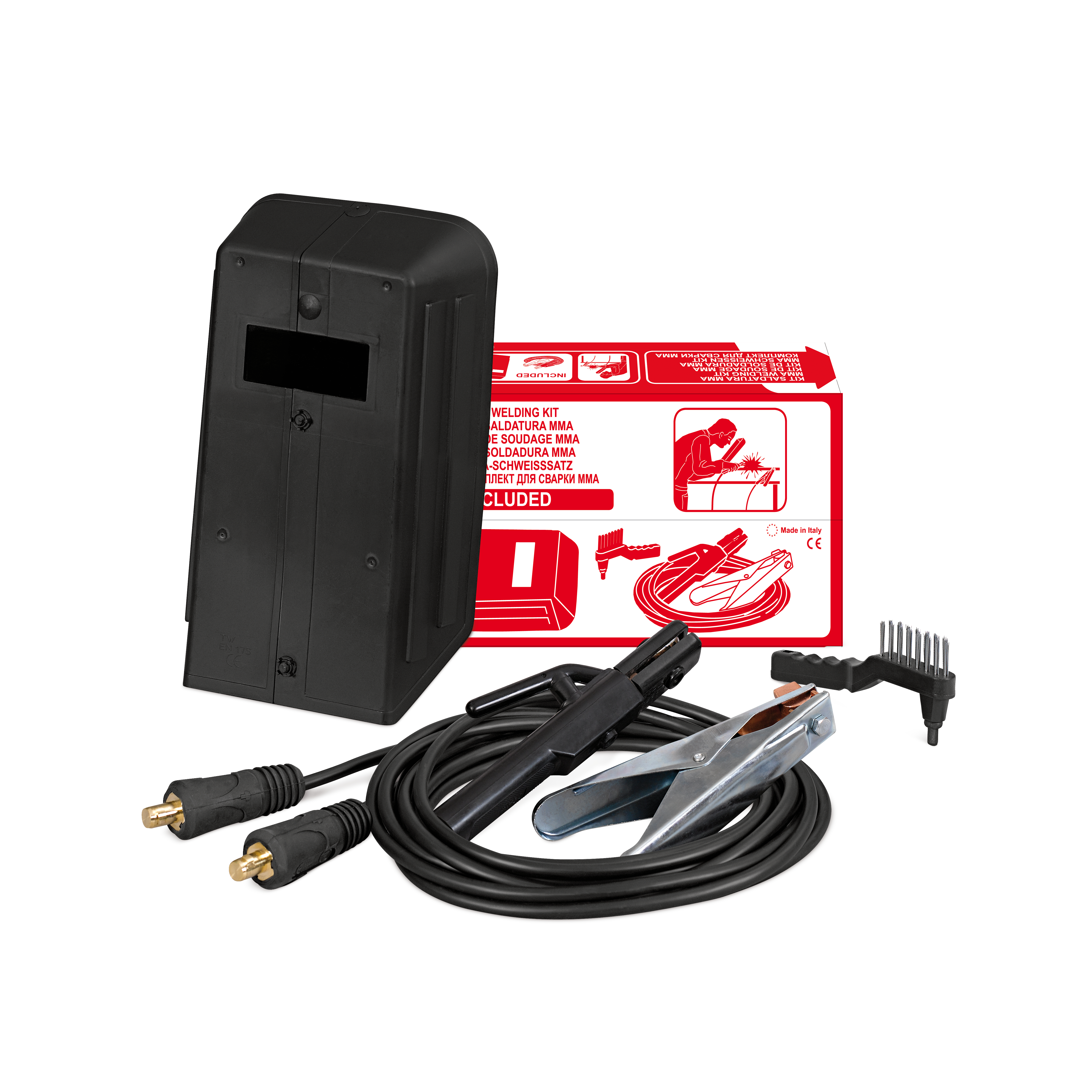

MMA WELDING KIT 350A 35 MMQ 4+3M AX50

801095

Discover other products

Discover more

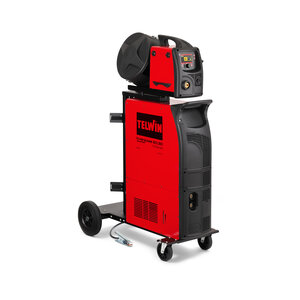

INVERPULSE 60.30 WAVE BASE
