ADVANCE 227 XT MV/PFC VRD

ADVANCE 227 XT MV/PFC VRD

Download PDF Request Info

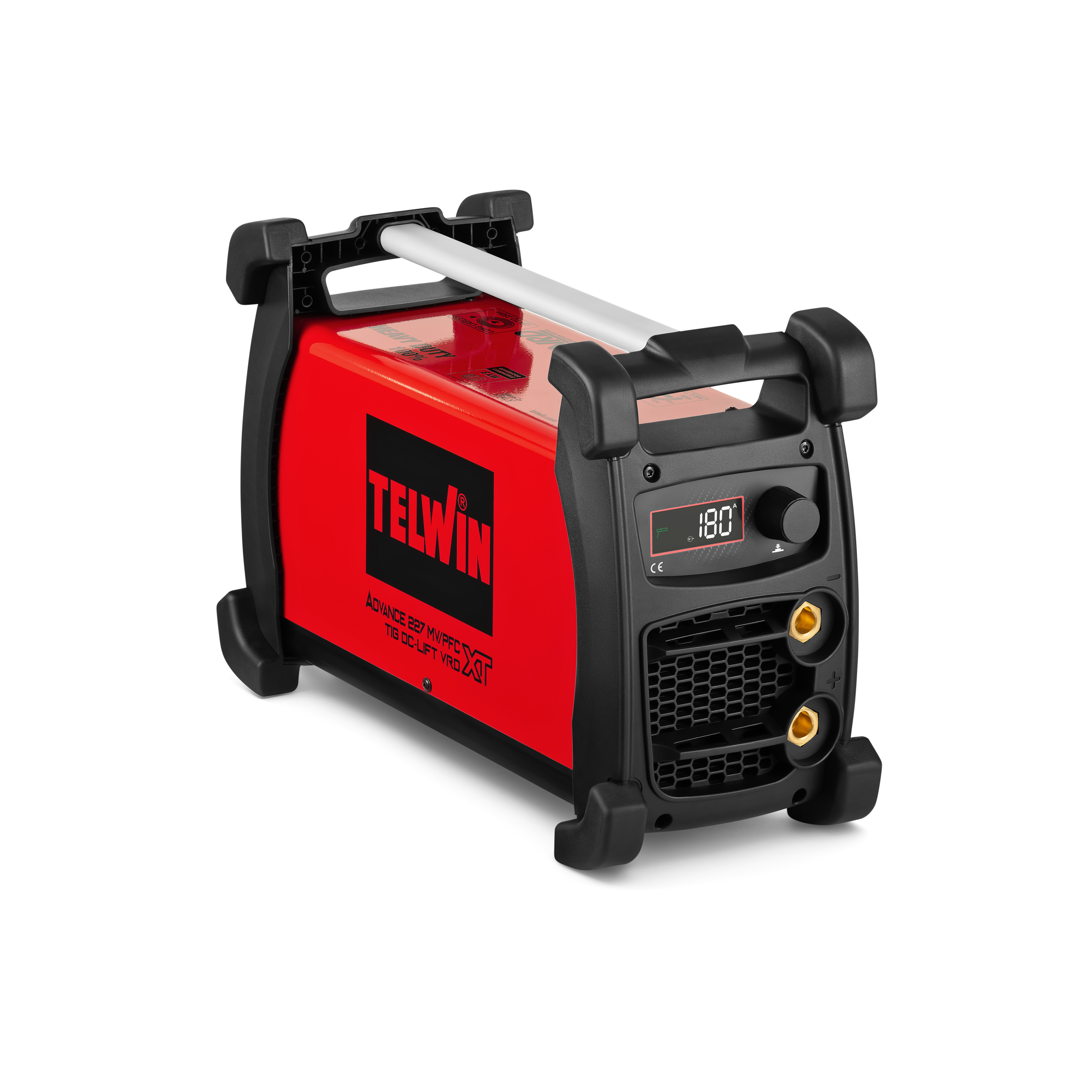

Direct current (DC) MMA and TIG (LIFT strike) electrode inverter welding machine, 200A, with LCD display. Strong structure and resistant to impact.
Multi-voltage: use with any variable power supply within a broad range (100÷240V) and operation with highly unstable and fluctuating voltages.
MV/PFC device: maximum performance also from residential lines with absorptions under 30% compared to welding machines with equal power.
Advanced arc control devices: arc force, hot start, anti-stick. Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 4 mm.
Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%). High stability of the welding current in power supply voltage variations.
Possible use with extensions up to 250m. With VRD (Voltage Reduction Device).

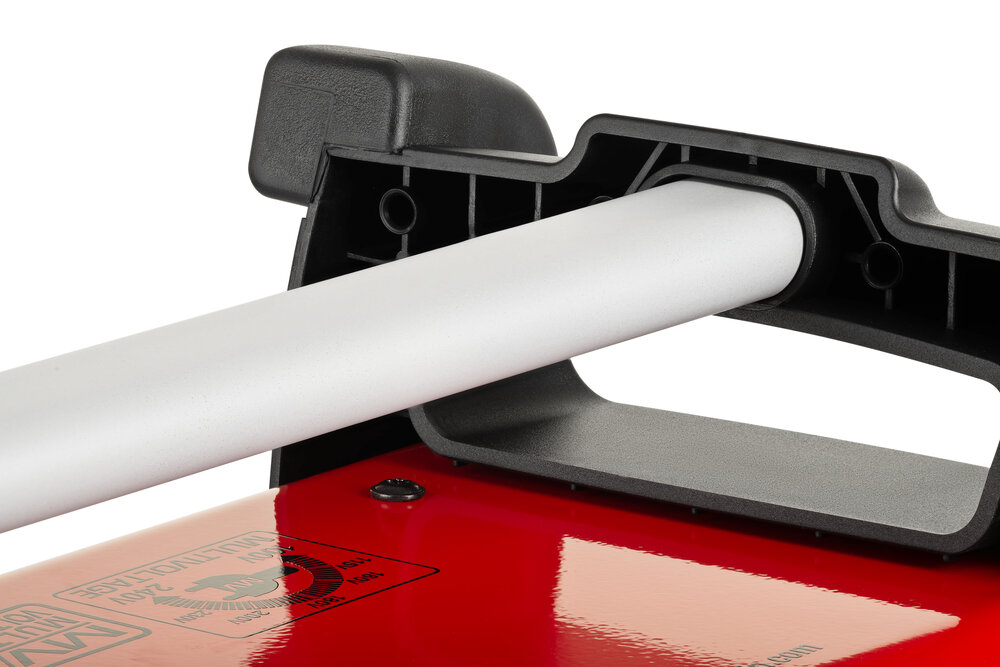

Quick connectors (socket) Ø 50 mm. Solid, metal handle. Compact and easy to transport. Contained consumption thanks to inverter technology.

Direct current (DC) MMA and TIG (LIFT strike) electrode inverter welding machine, 200A, with LCD display. Strong structure and resistant to impact.
Multi-voltage: use with any variable power supply within a broad range (100÷240V) and operation with highly unstable and fluctuating voltages.
MV/PFC device: maximum performance also from residential lines with absorptions under 30% compared to welding machines with equal power.
Advanced arc control devices: arc force, hot start, anti-stick. Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 4 mm.
Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%). High stability of the welding current in power supply voltage variations.
Possible use with extensions up to 250m. With VRD (Voltage Reduction Device).
Quick connectors (socket) Ø 50 mm. Solid, metal handle. Compact and easy to transport. Contained consumption thanks to inverter technology.

MMA and TIG (LIFT striking) inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
Multivoltage: use with a large range (100÷240V)of variable power supply, operations even when power supplies are fluctuating and unstable.
MV/PFC device: guarantees maximum performance even from domestic lines with 30% drop in absorptions compared to other welding machines of equal power.
VRD device: ireduces the output voltage to a safe level when the welding machine is on but not under welding conditions, guaranteeing the safety of the operator who can come into contact with the electrode without risk until welding resumes. (for use in damp environment such as mines or shipyards, etc.).
Features:

robust and impact resistant;
compact and light;
Ø 50mm quick connector;

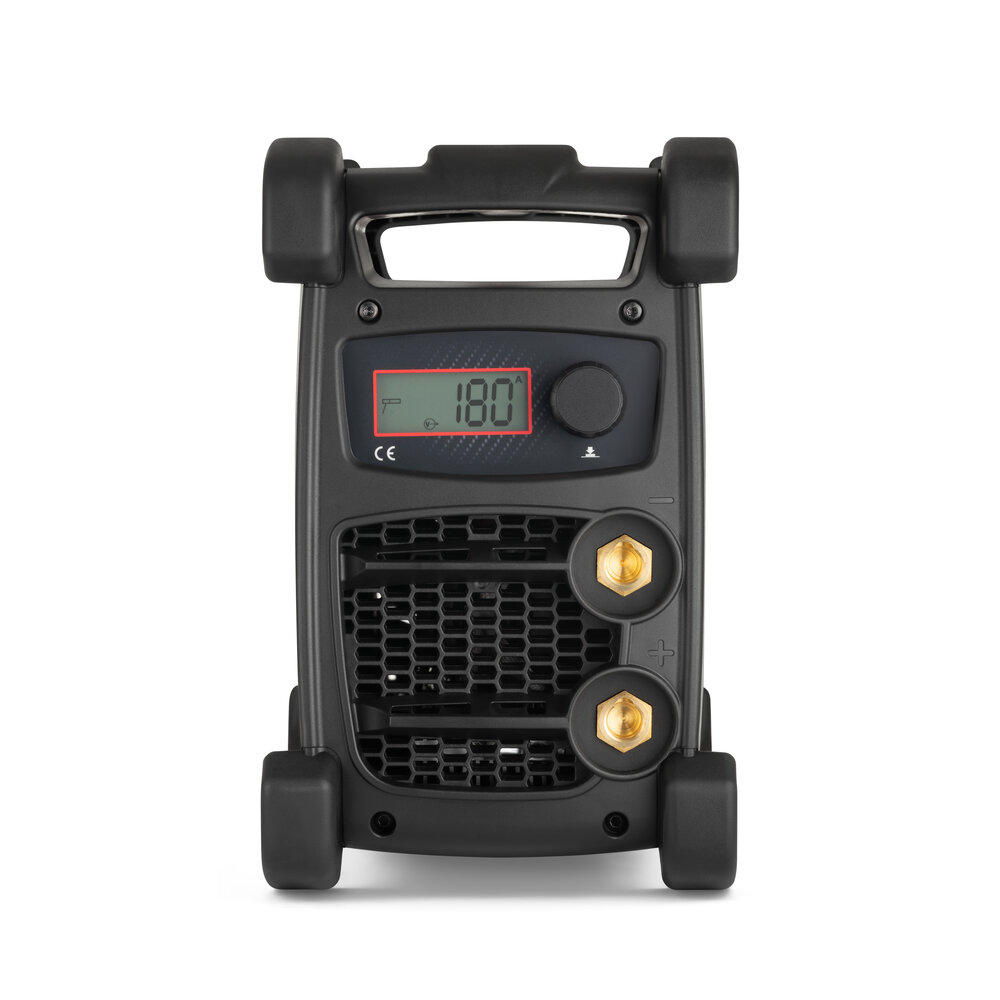

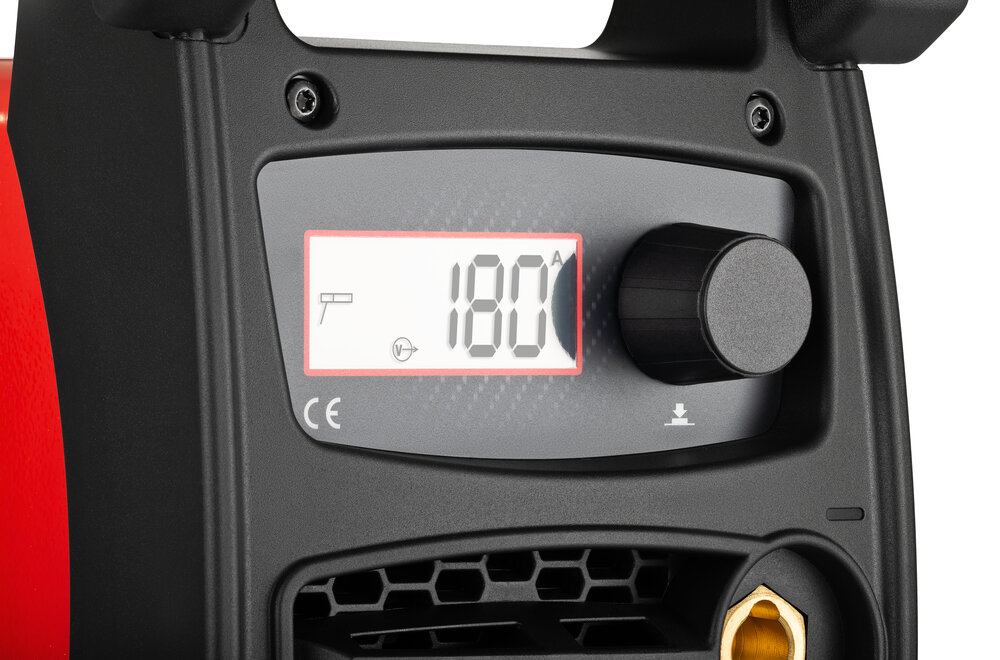

LCD display for visualisation of welding current;
MMA regulations: arc force and hot start;
MMA electrodes: rutile, basic, stainless steel and cast iron;
use of extension cables up to 250m;
Thermostatic, overcurrent, overvoltage, undervoltage, motorgenerator (+/-15%) protections.

CODE

816049

SINGLE PHASE MAINS VOLTAGE

100-120 / 200-240 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 120(150) / 10 - 200 A

MAX CURRENT

120 @ 30%(150 @ 30%) / 200 @ 30% A

CURRENT 35% DC

110(140) / 160 A

DC CURRENT

95(125) / 125(135) A

MAX NO LOAD VOLTAGE

81 V

MAX ABSORBED CURRENT

33(25) / 27(19) A

ABSORBED CURRENT AT 60%

24(20) / 16,5(11) A

MAX ABSORBED POWER

3,1(2,4) / 5,2(3,6) kW

ABSORBED POWER AT 60%

2,3(1,9) / 3,2(2,1) kW

MOTORGENERATOR MINIMUM POWER

5 / 8 kW

EFFICIENCY

84 %

POWER FACTOR

0,98

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS

45 x 18,2 x 29,2 cm

WEIGHT

7,4 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

OTHER ACCESSORIES

PLASTIC CARRY CASE - HEAVY DUTY

803400

TIG WELDING KITS

TIG WELDING KIT - ST26V

802491

BLISTER ELECTRODES

STAINLESS STEEL ELECTRODES D. 2,5 MM 10 PCS

804571

STAINLESS STEEL ELECTRODES D. 3,2 MM 8 PCS

804572

BOXED ELECTRODES

RUTILE ELECTRODES D. 2 MM 2,5 KG

802737

RUTILE ELECTRODES D. 2,5 MM 2,5 KG

802739

RUTILE ELECTRODES D. 3,2 MM 4 KG

802749

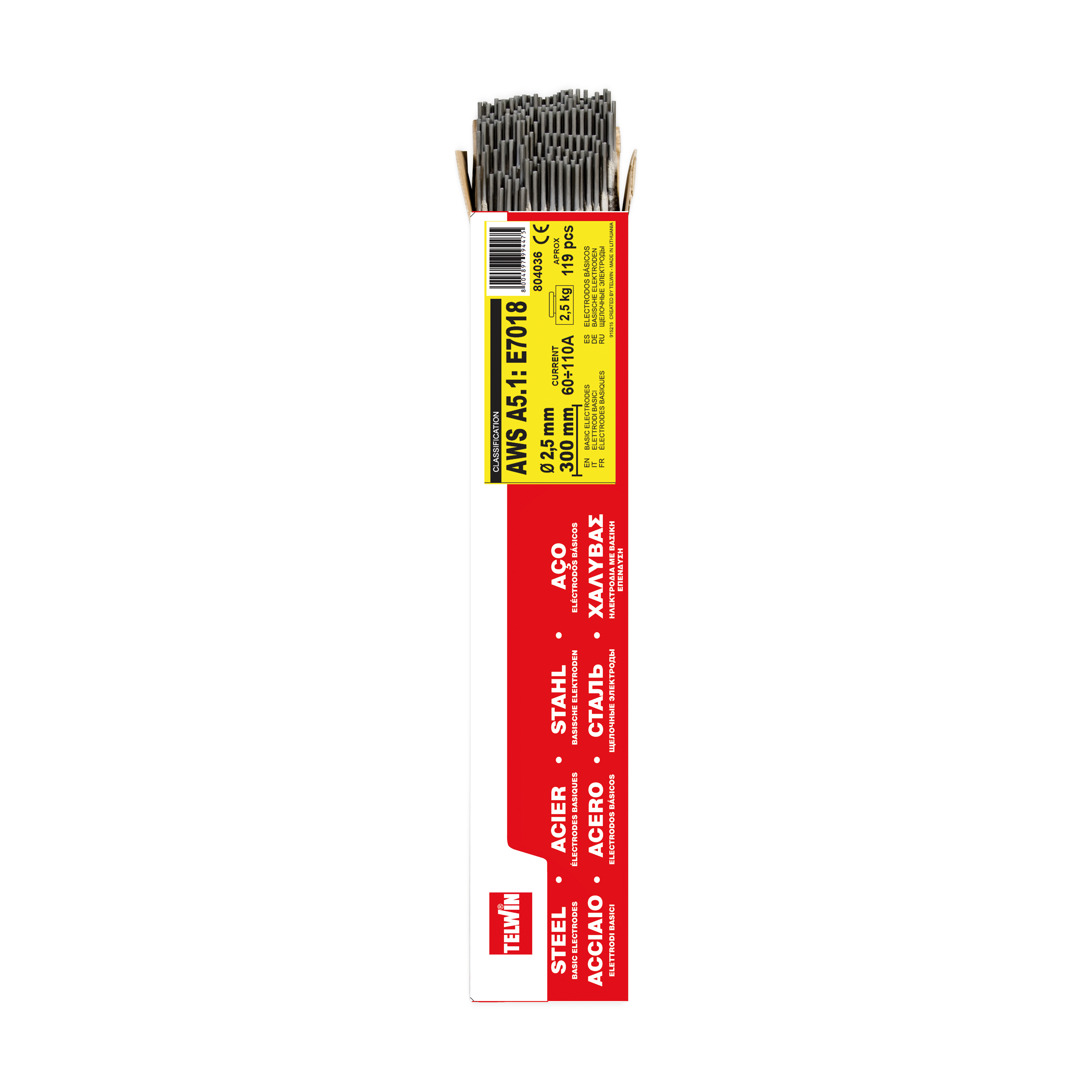

BASIC ELECTRODES D. 2,5 MM 2,5 KG

802748

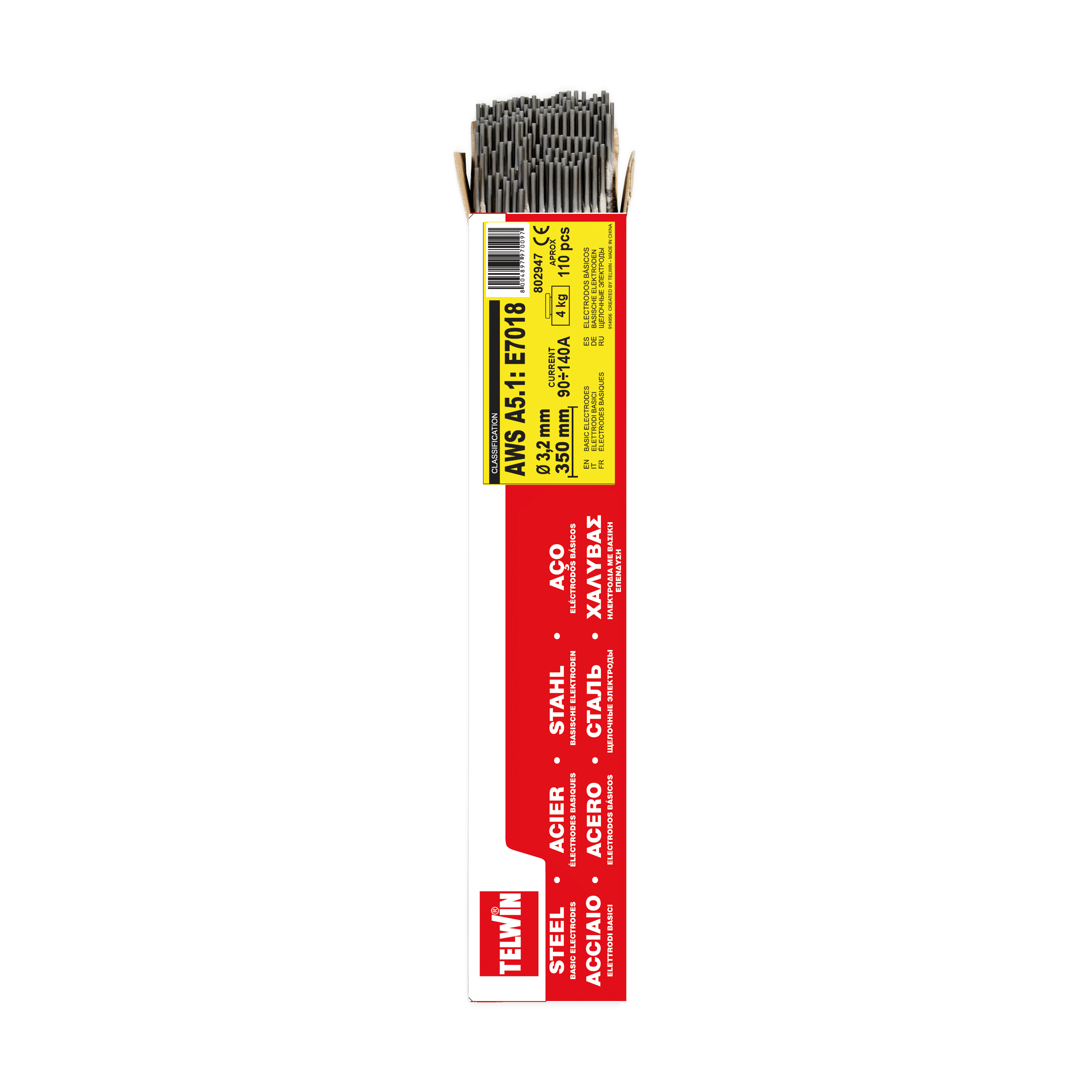

BASIC ELECTRODES D. 3,2 MM 4 KG

802947

BLISTER ACCESSORIES

METAL CHIPPING HAMMER BL

802543

ACCESSORIES/VARIOUS/SPARE PART

MMA WELDING KIT 300A 25 MMQ 4+3M AX50

801081
