TECHNOLOGY 236 XT

TECHNOLOGY 236 XT

Download PDF Request Info

Direct current (DC) MMA and TIG electrode inverter welding machine with scratch start, 200A, with a strong structure and resistant to impact.
Advanced arc control devices: arc force, hot start, anti-stick. Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 4 mm.
High stability of the welding current in power supply voltage variations.Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%).

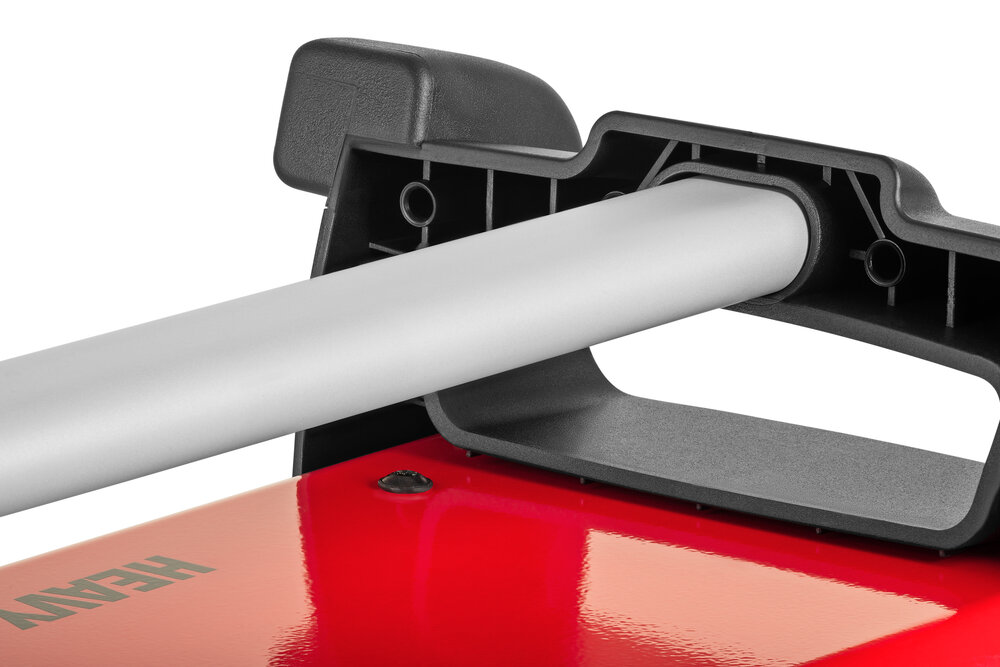

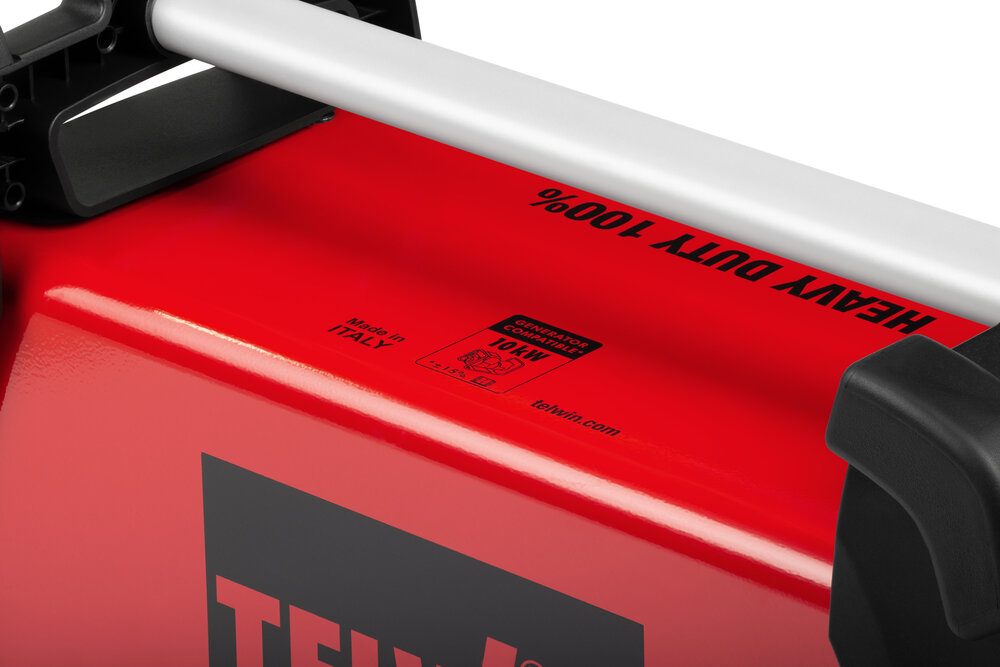

Quick connectors (socket) Ø 50 mm. Solid, metal handle. Compact and easy to transport.
Contained consumption thanks to inverter technology.

Direct current (DC) MMA and TIG electrode inverter welding machine with scratch start, 200A, with a strong structure and resistant to impact.
Advanced arc control devices: arc force, hot start, anti-stick. Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 4 mm.
High stability of the welding current in power supply voltage variations.Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%).
Quick connectors (socket) Ø 50 mm. Solid, metal handle. Compact and easy to transport.
Contained consumption thanks to inverter technology.

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.

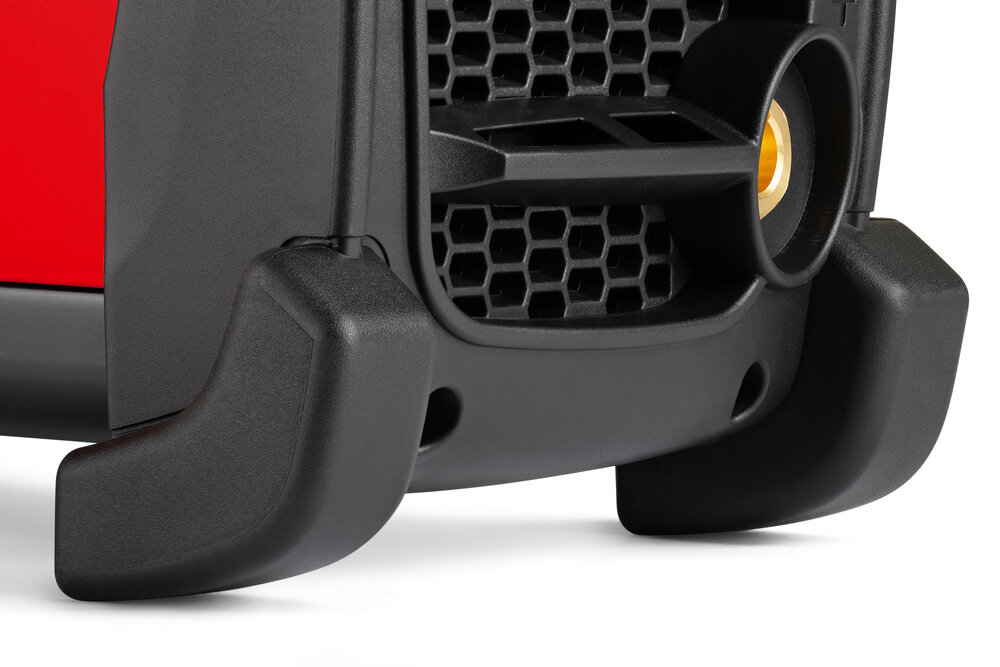

Robust and impact resistant.
Features:

compact and light;
Ø 50mm quick connector (socket);
high welding current stability in spite of mains voltage fluctuations;

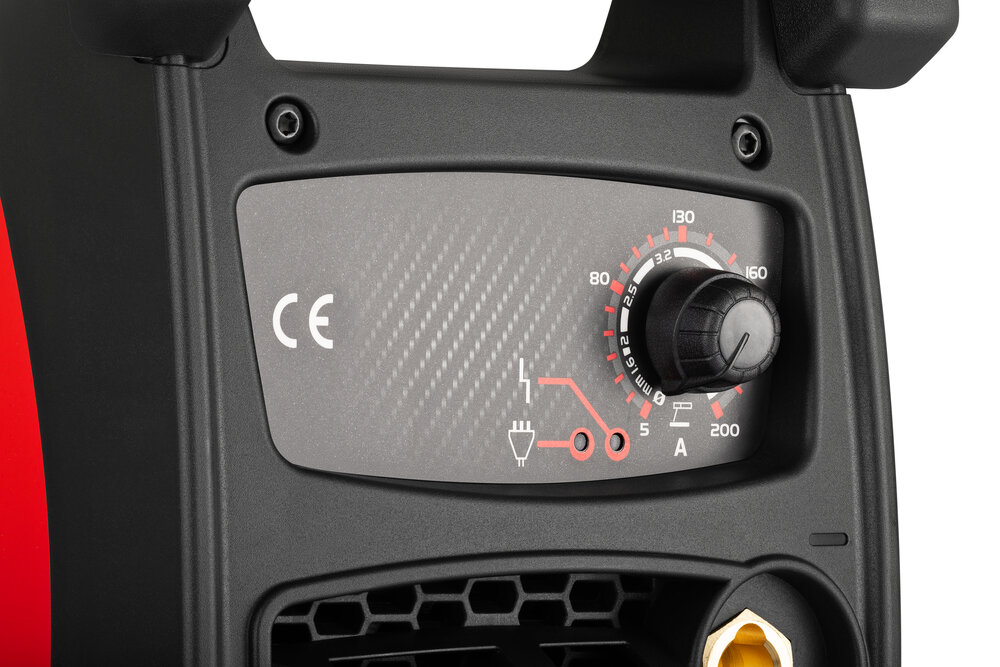

arc force, hot start and anti-stick devices;
thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

CODE

816151

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

5 - 200 A

MAX CURRENT

200 @ 35 % A

CURRENT 35% DC

200 A

DC CURRENT

140 A

MAX NO LOAD VOLTAGE

60 V

MAX ABSORBED CURRENT

38 A

ABSORBED CURRENT AT 60%

22 A

MAX ABSORBED POWER

6 kW

ABSORBED POWER AT 60%

3,3 kW

MOTORGENERATOR MINIMUM POWER

10 kW

EFFICIENCY

89 %

POWER FACTOR

0,7

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS

42 x 18,2 x 29,2 cm

WEIGHT

7,28 kg
