SUPERMIG 350i 230V/400V

Download PDF Request Info
  • MMA and TIG DC-Lift, electrode inverter welding machine, 270A. 3ph 230/400V power supply.
  • LCD display of the main welding parameters and product settings.
  • MMA: direct and pulse current (MMA PULSE) operation. VRD device.
  • Gouging process. TIG-DC Lift.
  • Particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components from dirt and dust.
  • Strong, resistant to impact and dust; reduced weight and size. High energy savings.
  • MMA and TIG DC-Lift, electrode inverter welding machine, 270A. 3ph 230/400V power supply.
  • LCD display of the main welding parameters and product settings.
  • MMA: direct and pulse current (MMA PULSE) operation. VRD device.
  • Gouging process. TIG-DC Lift.
  • Particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components from dirt and dust.
  • Strong, resistant to impact and dust; reduced weight and size. High energy savings.

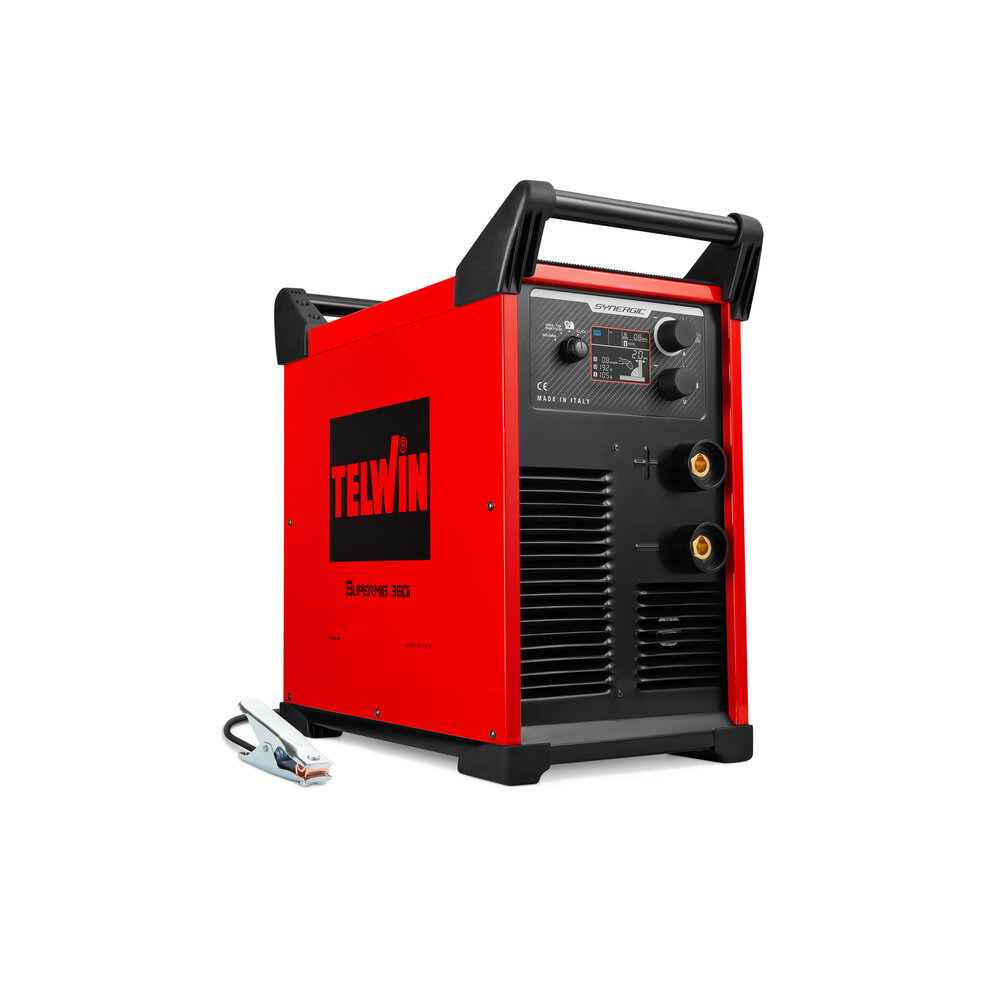

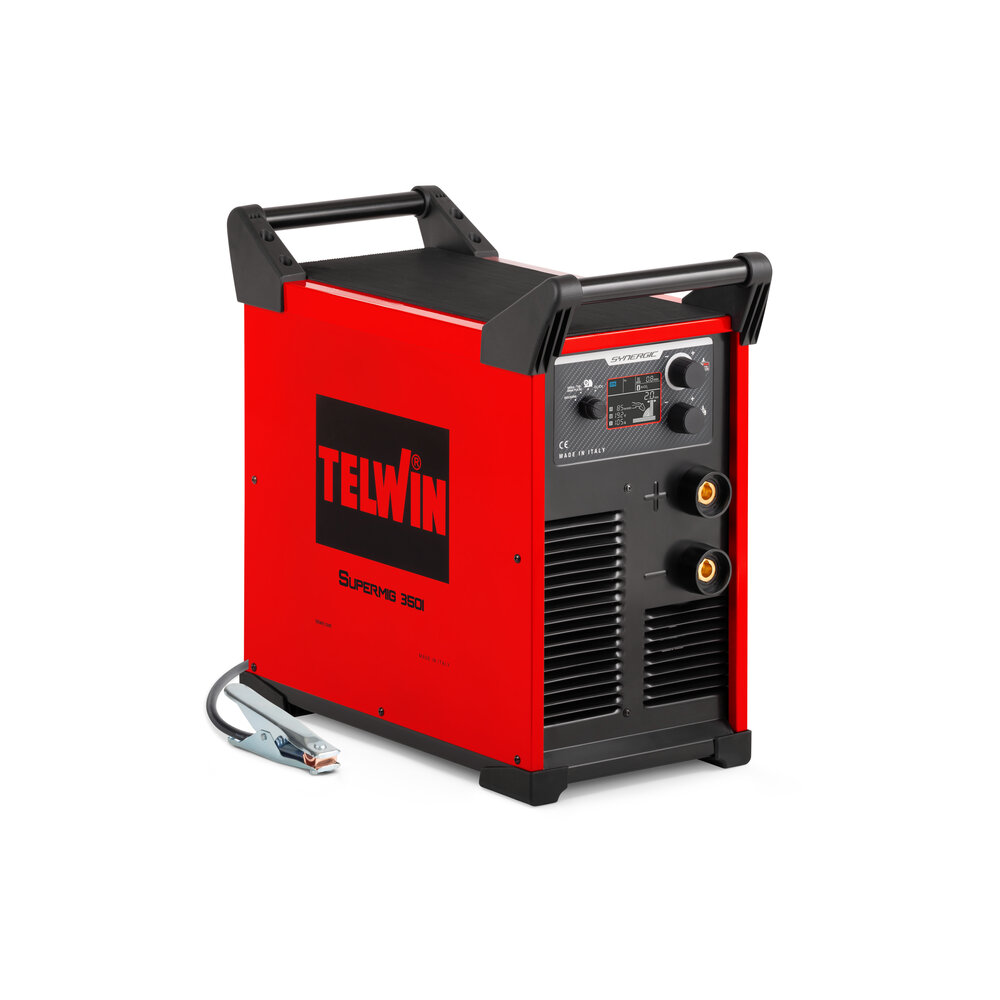

Inverter MMA electrode and TIG DC-Lift welding machine.
Flexibility of use with different materials (steel, stainless steel, high-strength steel, aluminium, etc.) and wide variety of fields of application (industry, metalwork, construction, etc.).
Particularly resistant to dirt and dust thanks to the special construction of the ventilation system which, following a dedicated tunnel, preserves the electronic components, guaranteeing a longer life.

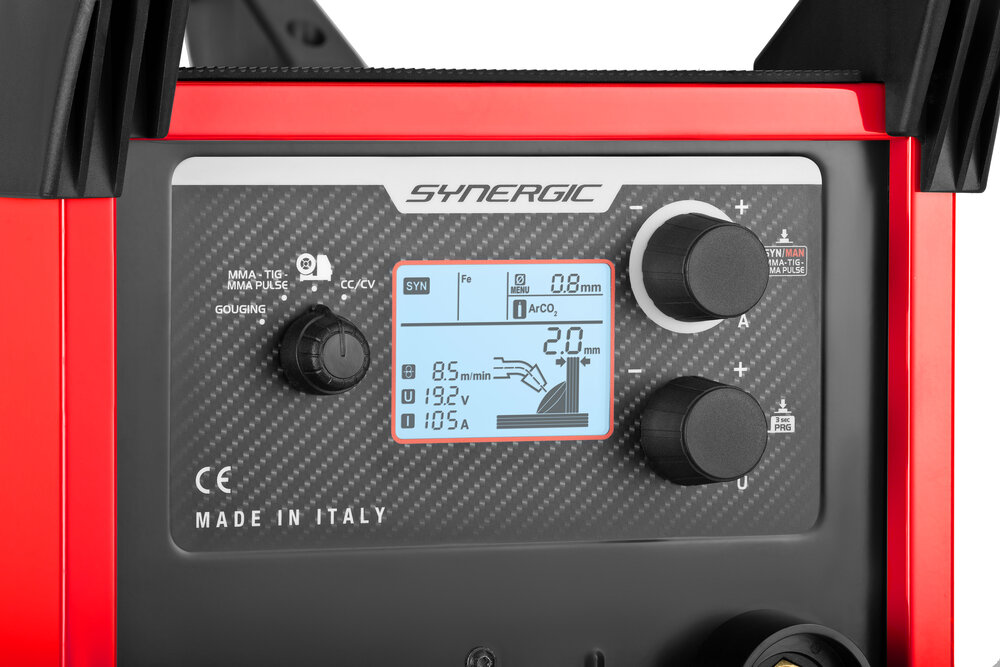

The graphic display allows a clear view of the main welding parameters and product settings.
Electrode welding is possible in both direct and pulse current modes. The pulse mode (MMA Pulse) is recommended for basic electrodes and positional welding and guarantees less spatter and rework and higher weld quality. The GOUGING function is available with carbon electrodes. Light weight and compactness also ensure easy portability to all locations, both indoors and outdoors.

Features:

  • robust, impact and dust resistant;
  • reduced weight and dimensions;
  • high energy saving;
  • backlit LCD display

MMA

  • DC and pulse current operation mode (MMA PULSE);
  • MMA adjustments: hot start, arc force;
  • antistick protection;
  • VRD device;
  • visualization on LCD display of voltage and welding current.

TIG

  • LIFT DC striking and visualization on LCD display of voltage and welding current.

GOUGING

  • Gouging function with visualization on LCD display of gouging voltage and current.

Protections: thermostat, overvoltage (+15%), undervoltage (-25%), overcurrent, motor-generator.

Complete with work cable and clamp.

CODE

816198

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAX CURRENT

270 @ 40% A

RANGE AMP OUT DC

20 - 270 A

CURRENT 60% DC

220 A

CURRENT 100% DC

200 A

MAX ABSORBED CURRENT

20 A

MAX DC NO LOAD VOLTAGE

63 V

RANGE V OUT MIG

10 - 27,5 V

MAX ABSORBED POWER

10 kW

EFFICIENCY

86 %

D. USABLE ELECTRODES IN DC

1,6 - 5 mm

PROTECTION DEGREE

IP23

DIMENSIONS

54,6 x 27,4 x 50 cm

WEIGHT

24 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

brochure

Download PDF

Certificate

Download PDF

Inverter MMA electrode and TIG DC-Lift welding machine.
Flexibility of use with different materials (steel, stainless steel, high-strength steel, aluminium, etc.) and wide variety of fields of application (industry, metalwork, construction, etc.).
Particularly resistant to dirt and dust thanks to the special construction of the ventilation system which, following a dedicated tunnel, preserves the electronic components, guaranteeing a longer life.
The graphic display allows a clear view of the main welding parameters and product settings.
Electrode welding is possible in both direct and pulse current modes. The pulse mode (MMA Pulse) is recommended for basic electrodes and positional welding and guarantees less spatter and rework and higher weld quality. The GOUGING function is available with carbon electrodes. Light weight and compactness also ensure easy portability to all locations, both indoors and outdoors.

Features:

  • robust, impact and dust resistant;
  • reduced weight and dimensions;
  • high energy saving;
  • backlit LCD display

MMA

  • DC and pulse current operation mode (MMA PULSE);
  • MMA adjustments: hot start, arc force;
  • antistick protection;
  • VRD device;
  • visualization on LCD display of voltage and welding current.

TIG

  • LIFT DC striking and visualization on LCD display of voltage and welding current.

GOUGING

  • Gouging function with visualization on LCD display of gouging voltage and current.

Protections: thermostat, overvoltage (+15%), undervoltage (-25%), overcurrent, motor-generator.

Complete with work cable and clamp.

CODE

816198

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAX CURRENT DC EN60974-1

270 @ 40% A

RANGE AMP OUT DC

20 - 270 A

CURRENT 60% DC

220 A

CURRENT 100% DC

200 A

MAX ABSORBED CURRENT

20 A

MAX DC NO LOAD VOLTAGE

63 V

RANGE V OUT MIG

10 - 27,5 V

MAX ABSORBED POWER

10 kW

EFFICIENCY

86 %

D.USABLE ELECTRODES IN DC

1,6 - 5 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

54,6 x 27,4 x 50 cm

WEIGHT

24 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

brochure

Download PDF

Certificate

Download PDF

HOOK HOLDER

CABLE 25MMQ 3M-WORK CLAMP-ATLAS 50MMQ

713192

TORCH HOOK

645704

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 25MMQ 4M AX50

804123
GOUGING ACCESSORIES

GOUGING KIT

802666
OTHER ACCESSORIES

WHEELS KIT LINEAR i /SUPERMIG i

804318
GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

QUICK GAS CONNECTOR

804208
MIG/MAG WELDING KITS

ALUMINIUM WELDING KIT D. 1-1,6 MM

804397

FLUX CORED WIRE WELDING KIT D. 1-1,6 MM

804398
MIG TORCHES

MT25 MIG TORCH 3M

742183

MT25 MIG TORCH 4M

742184

MT25 MIG TORCH 5M

742185
WIRE FEEDERS AND ACCESSORIES

TS 500 WIRE FEEDER

806170

COIL ADAPTOR B-300

802486
MIG CONNECTION CABLES

CONNECTING CABLE 70MMQ 4M 14 POLES

802348

CONNECTING CABLE 70MMQ 10M 14 POLES

802349
TIG TORCHES

ST26V 4M AX50 TIG TORCH

742058
TROLLEYS AND ACCESSORIES

TROLLEY - FEDERAL

803091
