TECNICA 211/S

TECNICA 211/S

Download PDF Request Info

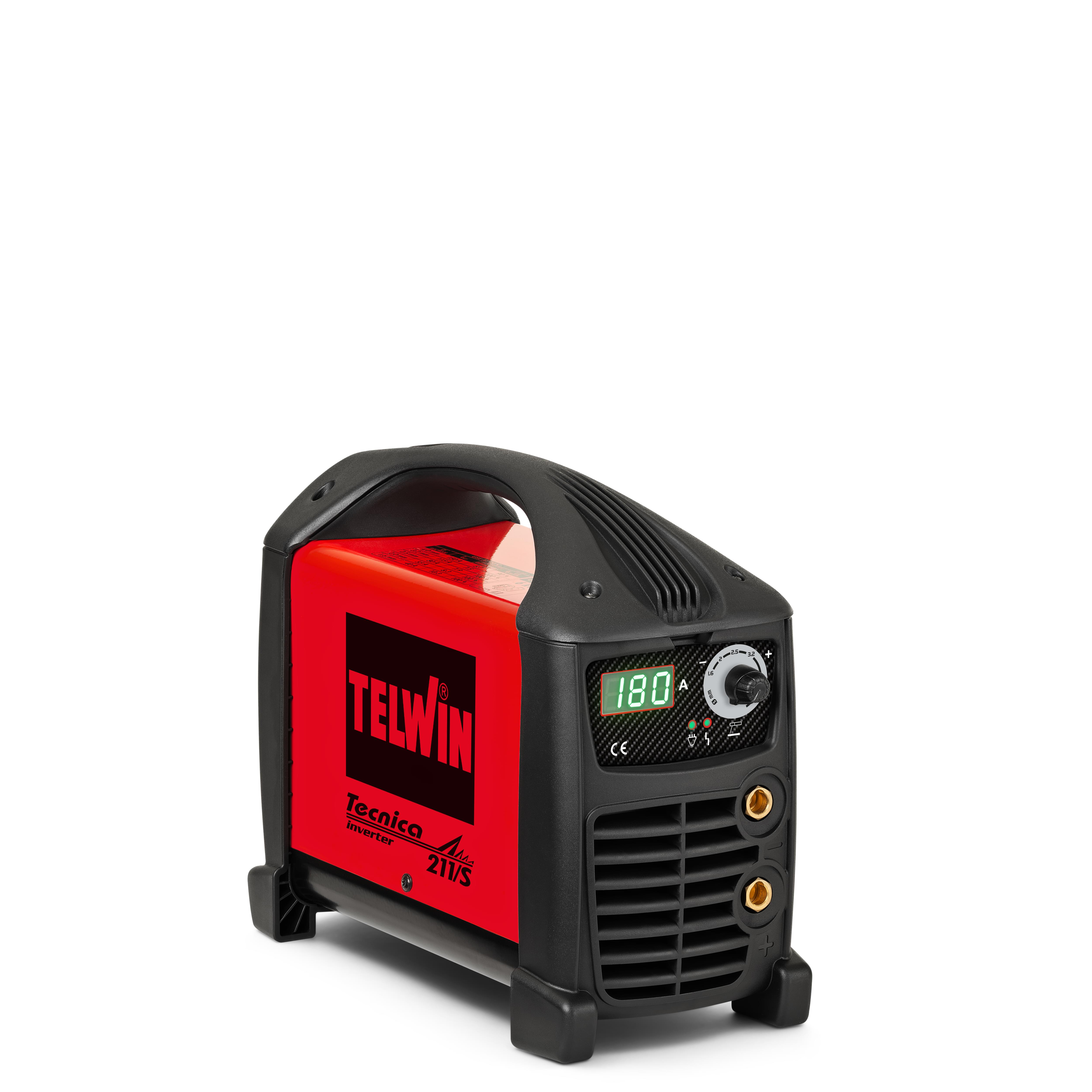

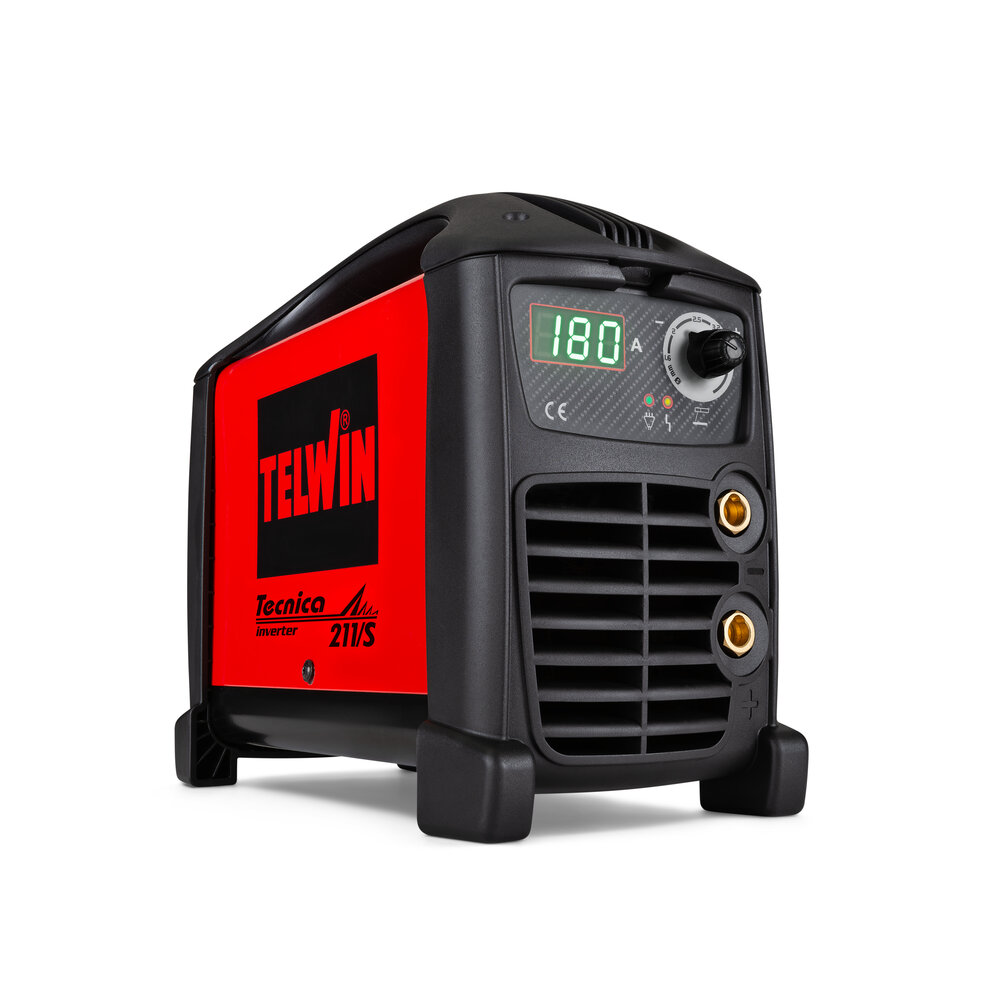

Direct current (DC) MMA and TIG (LIFT strike) electrode inverter welding machine, 180A, with LCD display.
Strong and raised structure against dust, water and dirt. Compact, light and easy to transport.
With set welding current display.
Advanced arc control devices: arc force, hot start, anti-stick. Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 4 mm.
Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%). High stability of the welding current in power supply voltage variations.
Contained consumption thanks to inverter technology.

Direct current (DC) MMA and TIG (LIFT strike) electrode inverter welding machine, 180A, with LCD display.
Strong and raised structure against dust, water and dirt. Compact, light and easy to transport.
With set welding current display.
Advanced arc control devices: arc force, hot start, anti-stick. Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 4 mm.
Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%). High stability of the welding current in power supply voltage variations.
Contained consumption thanks to inverter technology.

Inverter MMA electrode and TIG welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:

Robust, elevated structure against dust, water and dirt;
Compact and light;
Display showing the set welding current;
High welding current stability in spite of mains voltage fluctuations;
Arc force, hot start and anti-stick devices;
Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

CODE

816240

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 180 A

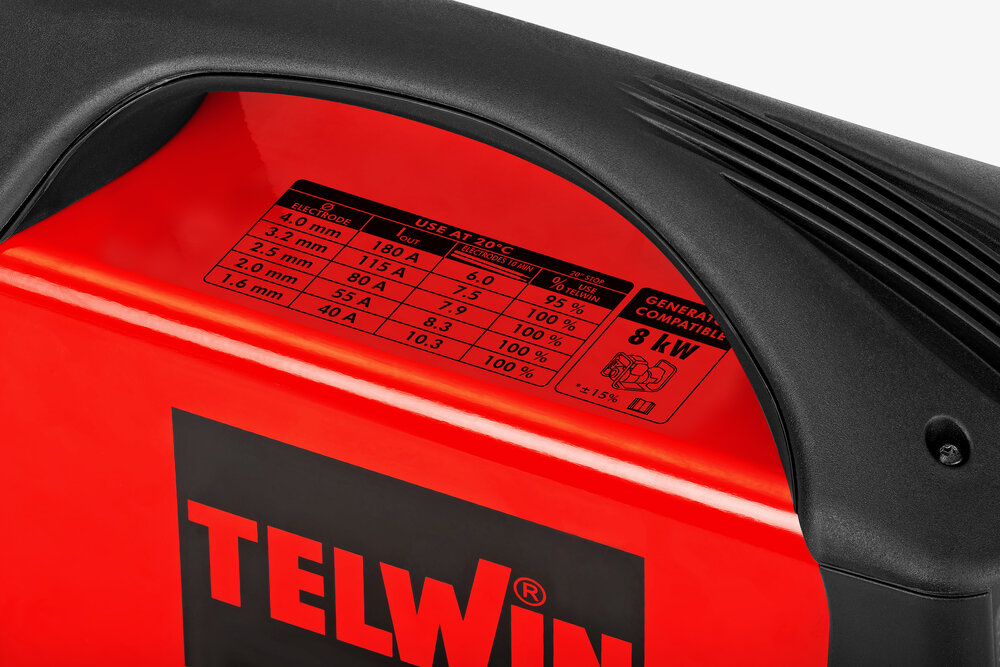

%USE (20°C USE)

95% @ 180A

MAX CURRENT

180 @ 20 % A

CURRENT 35% DC

145 A

DC CURRENT

110 A

MAX NO LOAD VOLTAGE

82 V

MAX ABSORBED CURRENT

36 A

ABSORBED CURRENT AT 60%

19 A

MAX ABSORBED POWER

5,6 kW

ABSORBED POWER AT 60%

3,1 kW

MOTORGENERATOR MINIMUM POWER

8 kW

EFFICIENCY

86 %

POWER FACTOR

0,7

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS

31 x 14 x 24,5 cm

WEIGHT

4 kg

Catalog Image

Instruction Manual

Spare Parts List

TIG WELDING KITS

TIG WELDING KIT - ST9V

BLISTER ELECTRODES

BASIC ELECTRODES D. 2,5 MM 10 PCS

BASIC ELECTRODES D. 3,2 MM 8 PCS

STAINLESS STEEL ELECTRODES D. 2,5 MM 10 PCS

STAINLESS STEEL ELECTRODES D. 3,2 MM 8 PCS

RUTILE ELECTRODES D. 1,6 MM 15 PCS

RUTILE ELECTRODES D. 2,0 MM 15 PCS

RUTILE ELECTRODES D. 2,5 MM 15 PCS

RUTILE ELECTRODES D. 3,2 MM 10 PCS

RUTILE ELECTRODES D. 4 MM 8 PCS

BOXED ELECTRODES

RUTILE ELECTRODES D. 2 MM 2,5 KG

RUTILE ELECTRODES D. 2,5 MM 2,5 KG

RUTILE ELECTRODES D. 3,2 MM 4 KG

ACCESSORIES/VARIOUS/SPARE PART

MMA WELDING KIT 200A 16 MMQ 3+2M AX25

Inverter MMA electrode and TIG welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:

Robust, elevated structure against dust, water and dirt;
Compact and light;
Display showing the set welding current;
High welding current stability in spite of mains voltage fluctuations;
Arc force, hot start and anti-stick devices;
Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

CODE

816240

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

10 - 180 A

%USE (20°C USE) (*)

95% @ 180A

MAX CURRENT DC EN60974-1

180 @ 20 % A

CURRENT 35% DC

145 A

DC CURRENT AT 60%

110 A

MAX NO LOAD VOLTAGE IN DC

82 V

MAX ABSORBED CURRENT

36 A

ABSORBED CURRENT AT 60%

19 A

MAX ABSORBED POWER

5,6 kW

ABSORBED POWER AT 60%

3,1 kW

MOTORGENER. MINIMUM POWER

8 kW

EFFICIENCY

86 %

POWER FACTOR(cosphi) (cosphi)

0,7

D.USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

31 x 14 x 24,5 cm

WEIGHT

4 kg

Catalog Image

Instruction Manual

Spare Parts List

TIG WELDING KITS

TIG WELDING KIT - ST9V

801097

BLISTER ELECTRODES

BASIC ELECTRODES D. 2,5 MM 10 PCS

804569

BASIC ELECTRODES D. 3,2 MM 8 PCS

804570

STAINLESS STEEL ELECTRODES D. 2,5 MM 10 PCS

804571

STAINLESS STEEL ELECTRODES D. 3,2 MM 8 PCS

804572

RUTILE ELECTRODES D. 1,6 MM 15 PCS

804564

RUTILE ELECTRODES D. 2,0 MM 15 PCS

804565

RUTILE ELECTRODES D. 2,5 MM 15 PCS

804566

RUTILE ELECTRODES D. 3,2 MM 10 PCS

804567

RUTILE ELECTRODES D. 4 MM 8 PCS

802620

BOXED ELECTRODES

RUTILE ELECTRODES D. 2 MM 2,5 KG

802737

RUTILE ELECTRODES D. 2,5 MM 2,5 KG

802739

RUTILE ELECTRODES D. 3,2 MM 4 KG

802749

ACCESSORIES/VARIOUS/SPARE PART

MMA WELDING KIT 200A 16 MMQ 3+2M AX25

801096

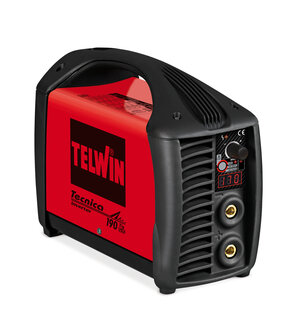

TECNICA TIG 190 DC
