ST9V 4M AX25 TIG TORCH

ST9V 4M AX25 TIG TORCH

Download PDF Request Info

TIG TORCH ST9V with 4m cable (AX25 connector).
Hand wheel for gas opening.
Air cooling.
Max current 110A DC / 80A AC @35%.

TIG TORCH ST9V with 4m cable (AX25 connector).
Hand wheel for gas opening.
Air cooling.
Max current 110A DC / 80A AC @35%.

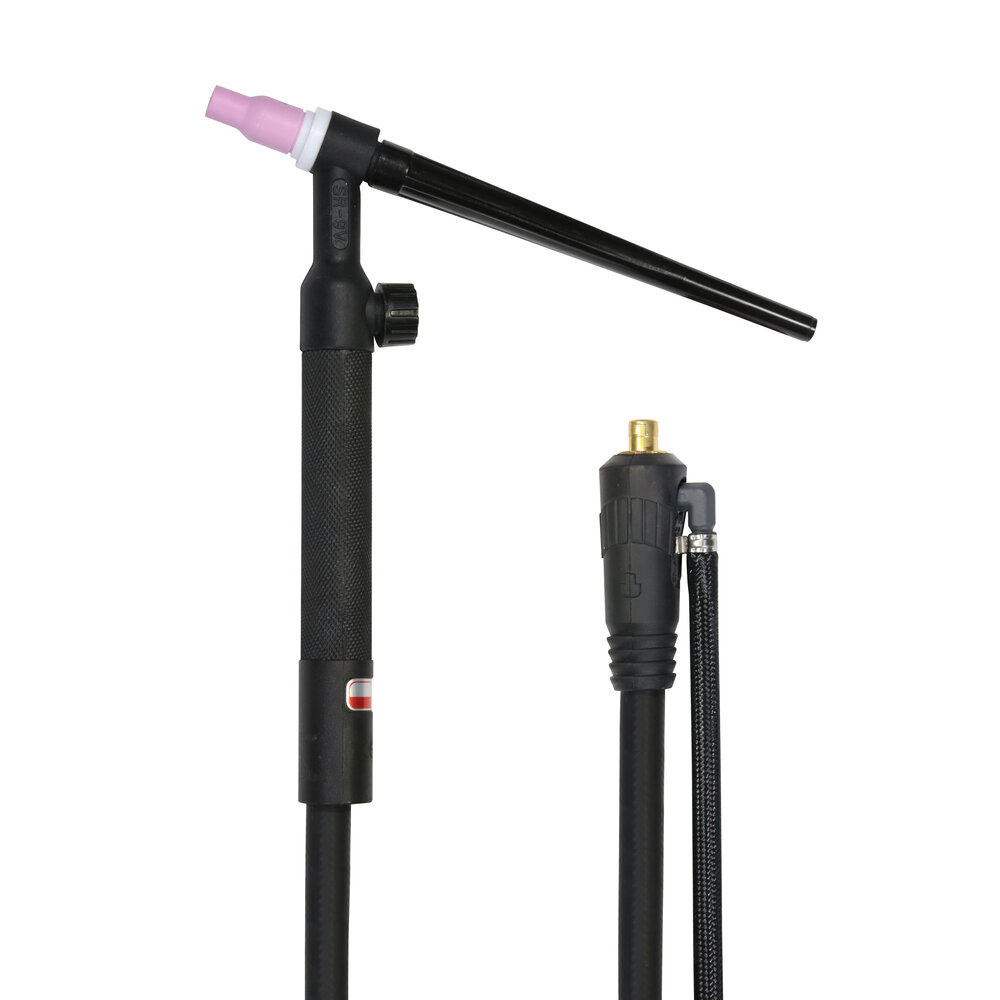

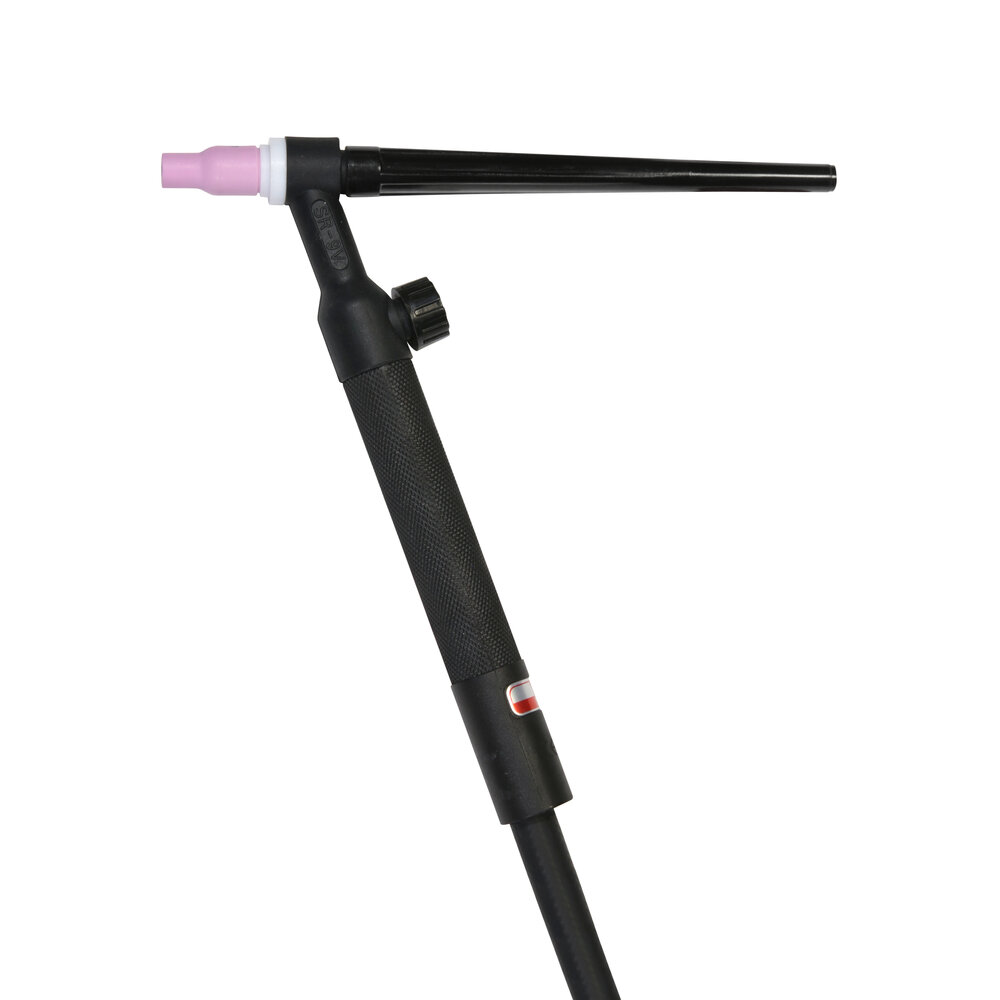

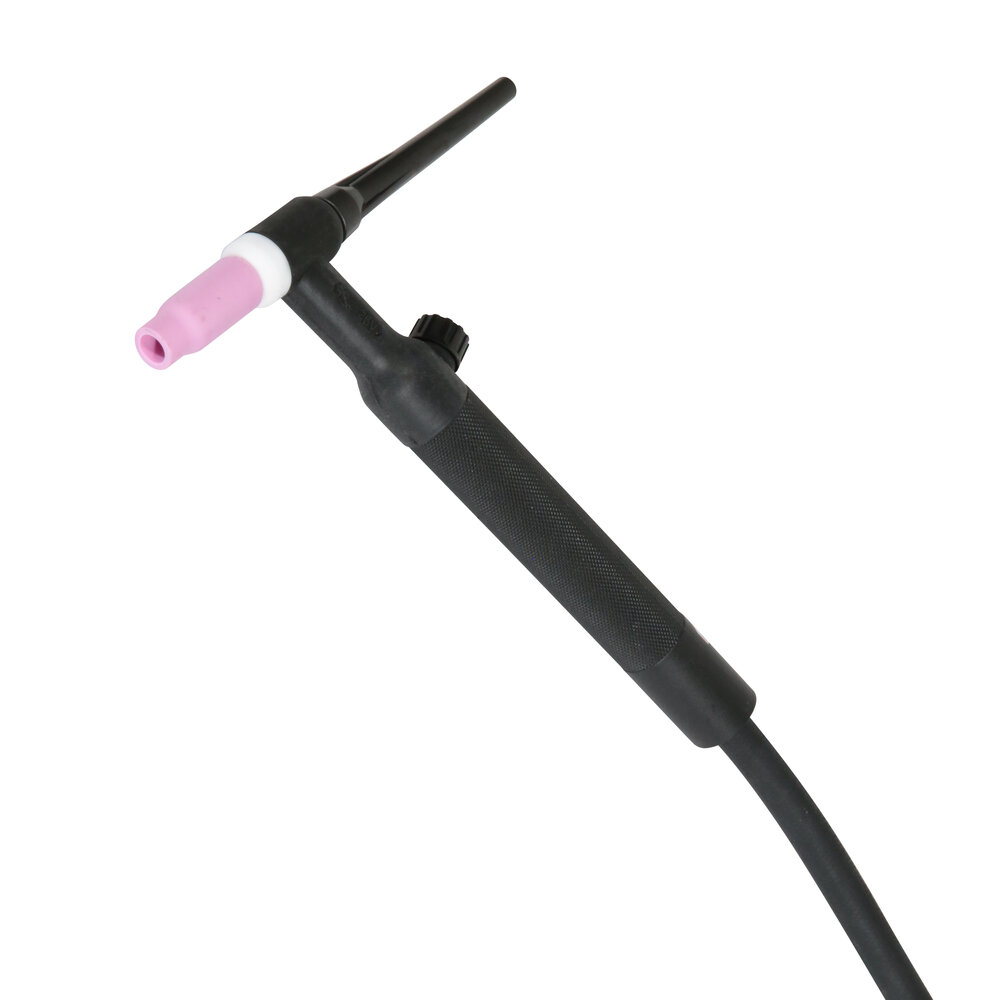

TIG welding torch ST9V with 4-metre cable (AX25 connector). Gas adjustment takes place via the hand wheel on the handle (no button, contact trigger). The torch can work with maximum current 110A in DC and 80A in AC (@35%). With 1.6 mm DC electrode and relevant consumables.

CODE

722563

COOLING DOWN

AIR

CABLE LENGHT

4 m

CABLE SECTION

16 mm²

MAX. CURRENT

110A DC / 80A AC @35% A

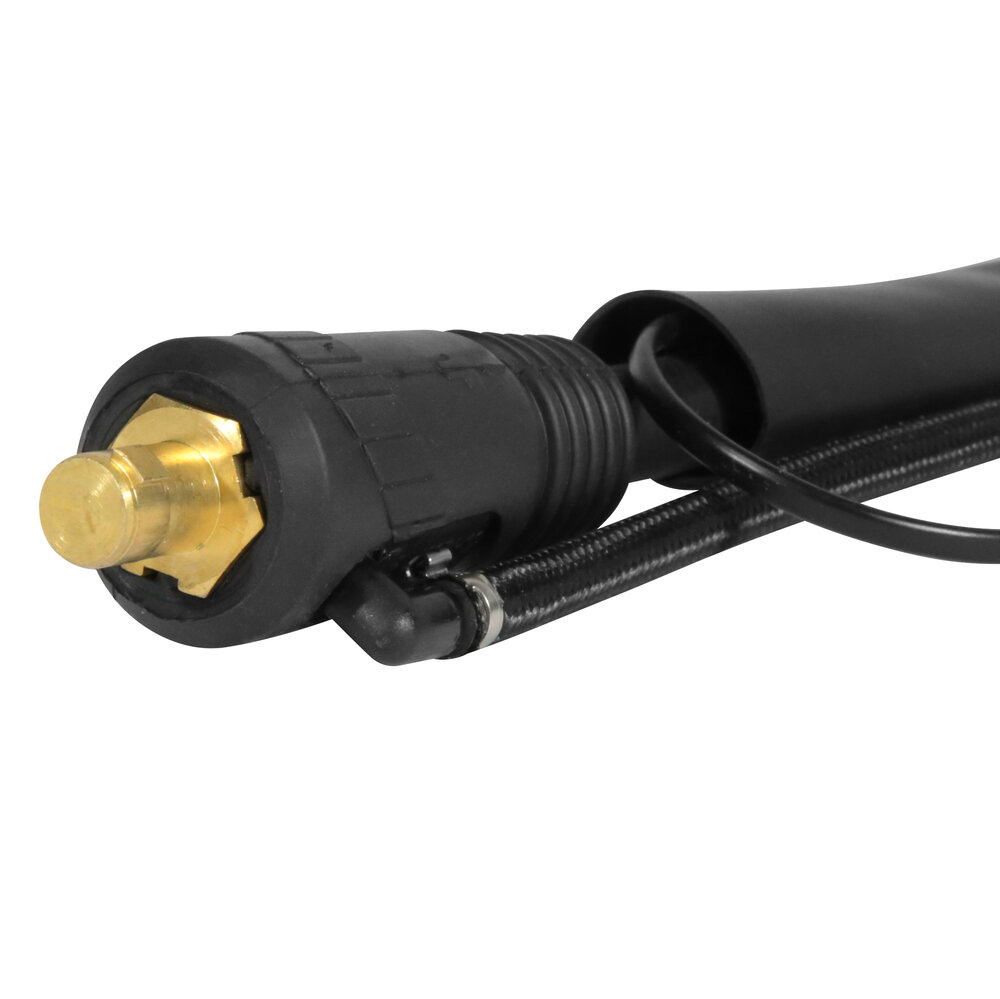

CONNECTION

AX25

REMOTE CONTROL

no

STANDARD

EN 60974-7

DIMENSIONS

370x310x80 mm

WEIGHT

1,630 kg

Catalog Image

TIG CONSUMABLES

ELECTRODE DIFFUSERS Ø1 MM ST9V 3 PCS

KIT 3 ELECTRODE DIFFUSERS D.1,6 MM ST9V

KIT 3 ELECTRODE HOLDER CLAMPS D.1 MM

KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM ST9V

CERAMIC NOZZLES NR.4 - ST9 10 PCS

CERAMIC NOZZLES NR.5 - ST9 TIG 10 PCS

KIT 10 CERAMIC NOZZLES NR.6

SHORT CAP

LONG CAP

BLISTER ACCESSORIES

TIG TORCH MAGNETIC HOLDER

TIG welding torch ST9V with 4-metre cable (AX25 connector). Gas adjustment takes place via the hand wheel on the handle (no button, contact trigger). The torch can work with maximum current 110A in DC and 80A in AC (@35%). With 1.6 mm DC electrode and relevant consumables.

CODE

722563

COOLING

AIR

CABLE LENGTH

4 m

T04050

16 mm²

MAX CURRENT

110A DC / 80A AC @35% A

T04055

AX25

T04053

no

STANDARD

EN 60974-7

DIMENSIONS

370x310x80 mm

WEIGHT

1,630 kg

Catalog Image

TIG CONSUMABLES

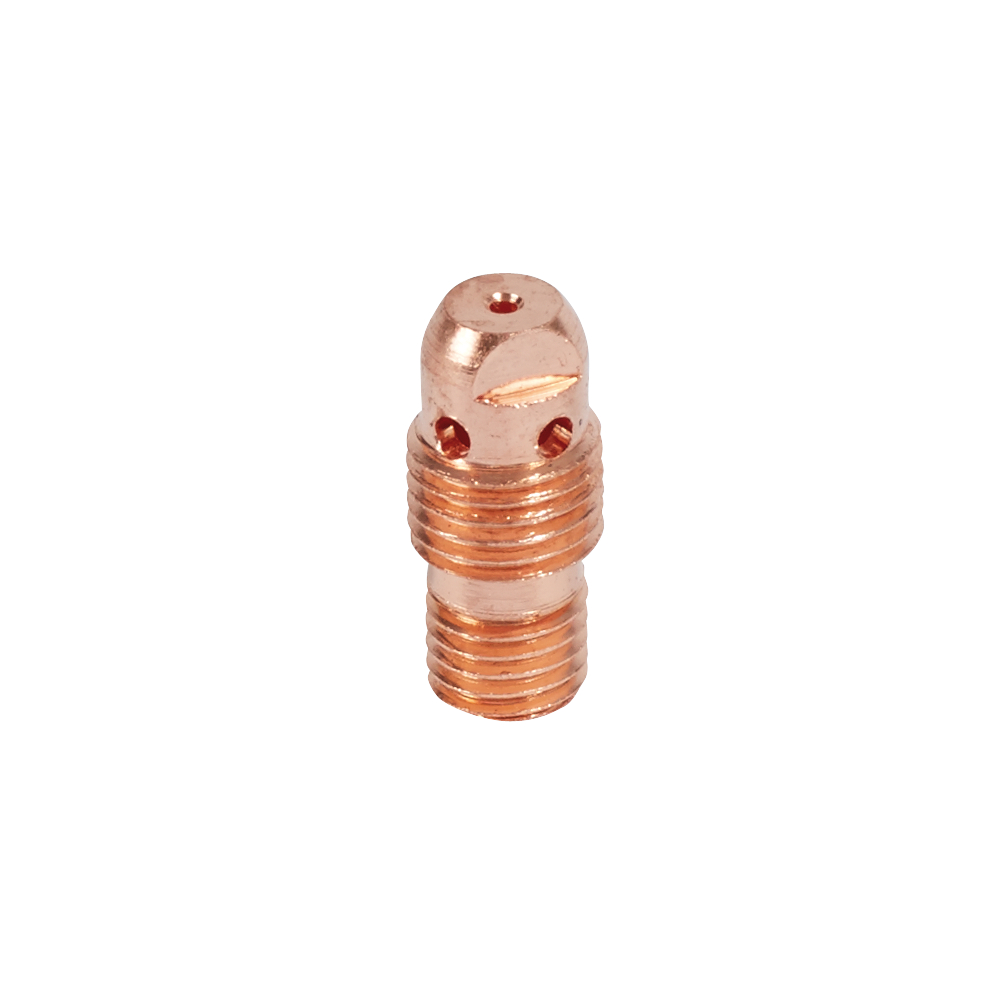

ELECTRODE DIFFUSERS Ø1 MM ST9V 3 PCS

802226

KIT 3 ELECTRODE DIFFUSERS D.1,6 MM ST9V

802228

KIT 3 ELECTRODE HOLDER CLAMPS D.1 MM

802223

KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM ST9V

802225

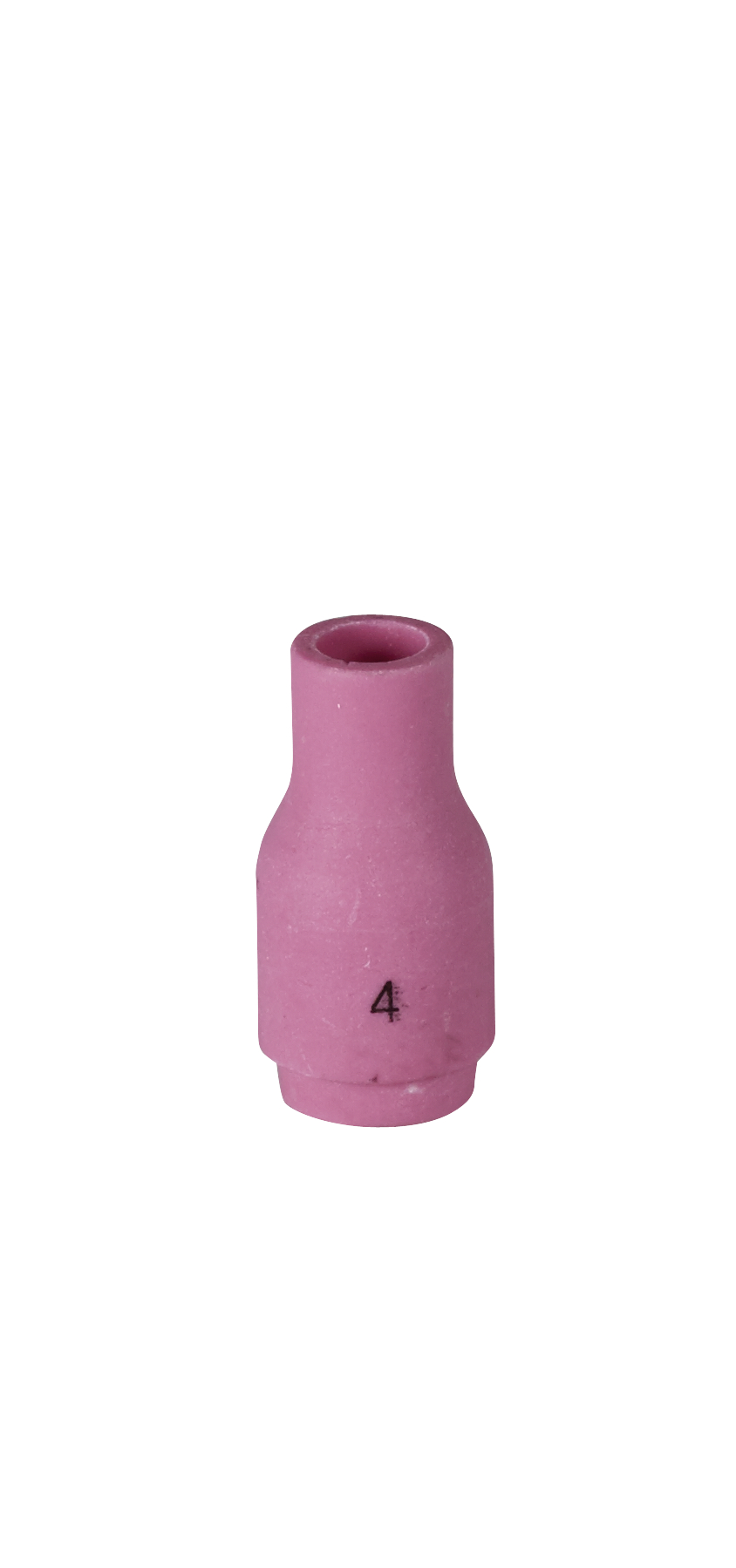

CERAMIC NOZZLES NR.4 - ST9 10 PCS

802229

CERAMIC NOZZLES NR.5 - ST9 TIG 10 PCS

802230

KIT 10 CERAMIC NOZZLES NR.6

802231

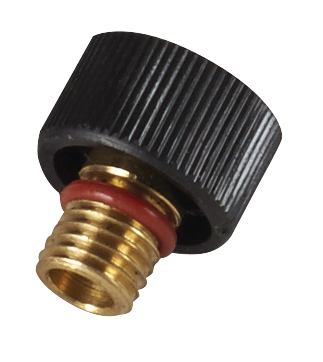

SHORT CAP

722982

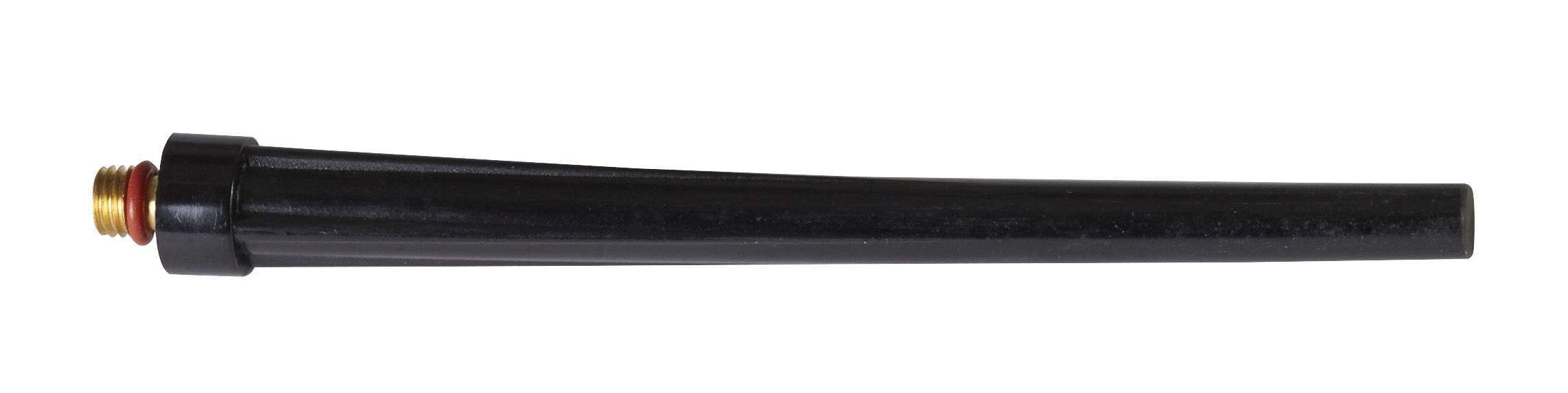

LONG CAP

722981

BLISTER ACCESSORIES

TIG TORCH MAGNETIC HOLDER

804127
