ST26 PRO-P 8M AX50 8P TIG TORCH

Add to comparison
Add to comparison
Add to comparison
Add to comparison
Add to comparison

ST26 PRO-P 8M AX50 8P TIG TORCH

Download PDF Request Info
  • TIG torch ST26 PRO-P with 8m.cable.
  • AX50 connector, 8-pin control cable, G 3/8 gas connector.
  • Wheel Potentiometer.
  • Air cooling.
  • Max current 180A DC / 125A AC @35%.
  • TIG torch ST26 PRO-P with 8m.cable.
  • AX50 connector, 8-pin control cable, G 3/8 gas connector.
  • Wheel Potentiometer.
  • Air cooling.
  • Max current 180A DC / 125A AC @35%.

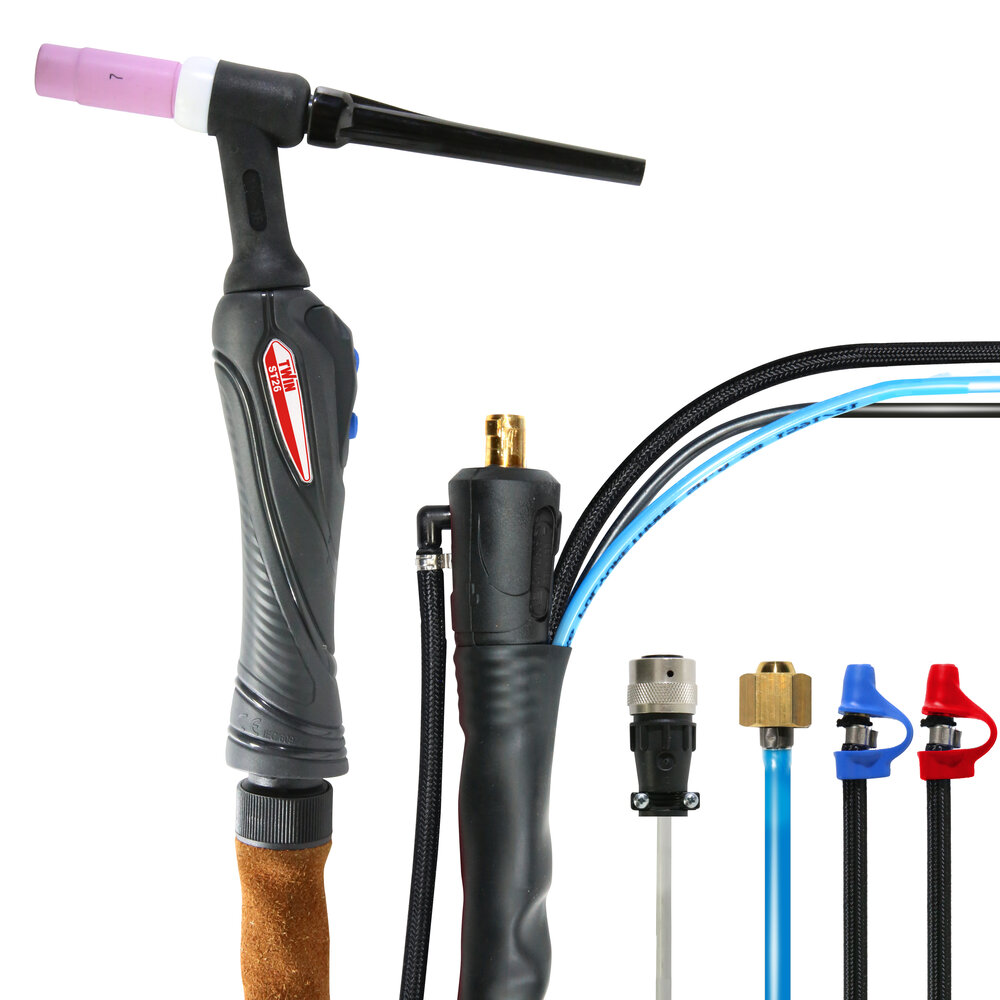

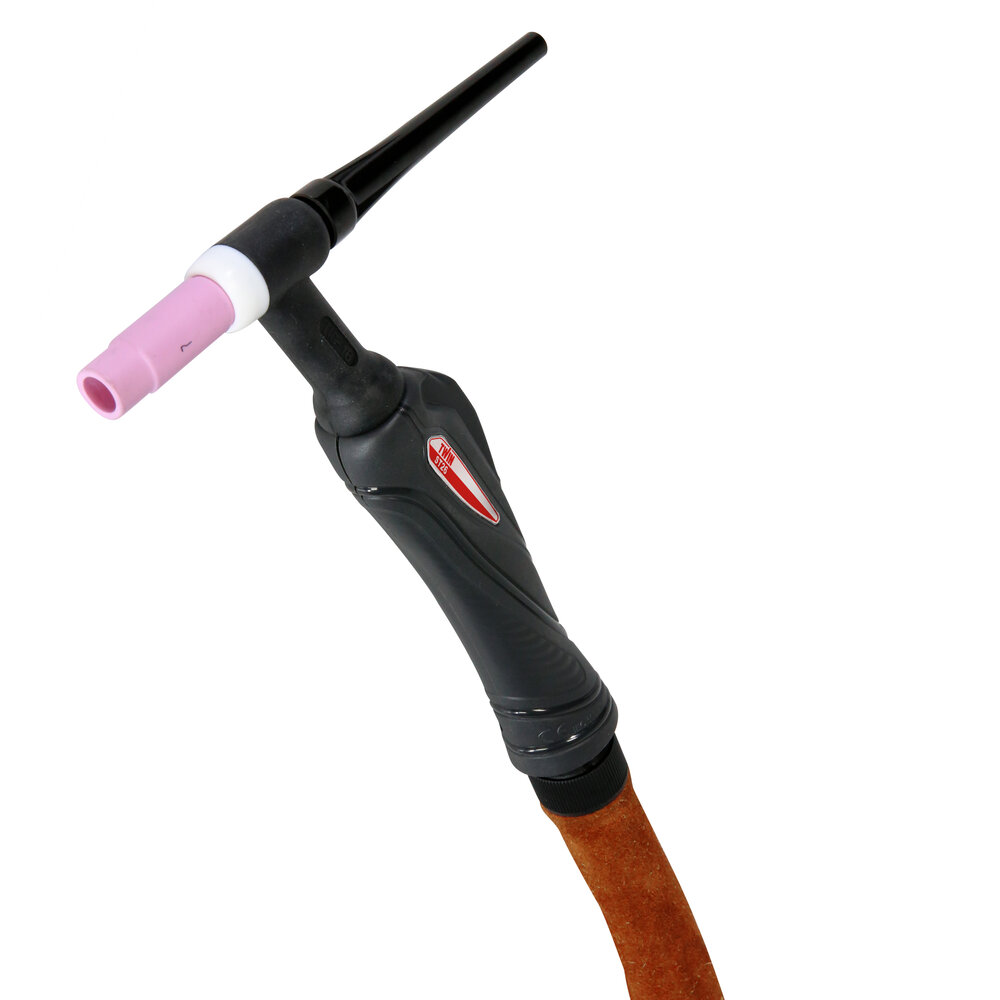

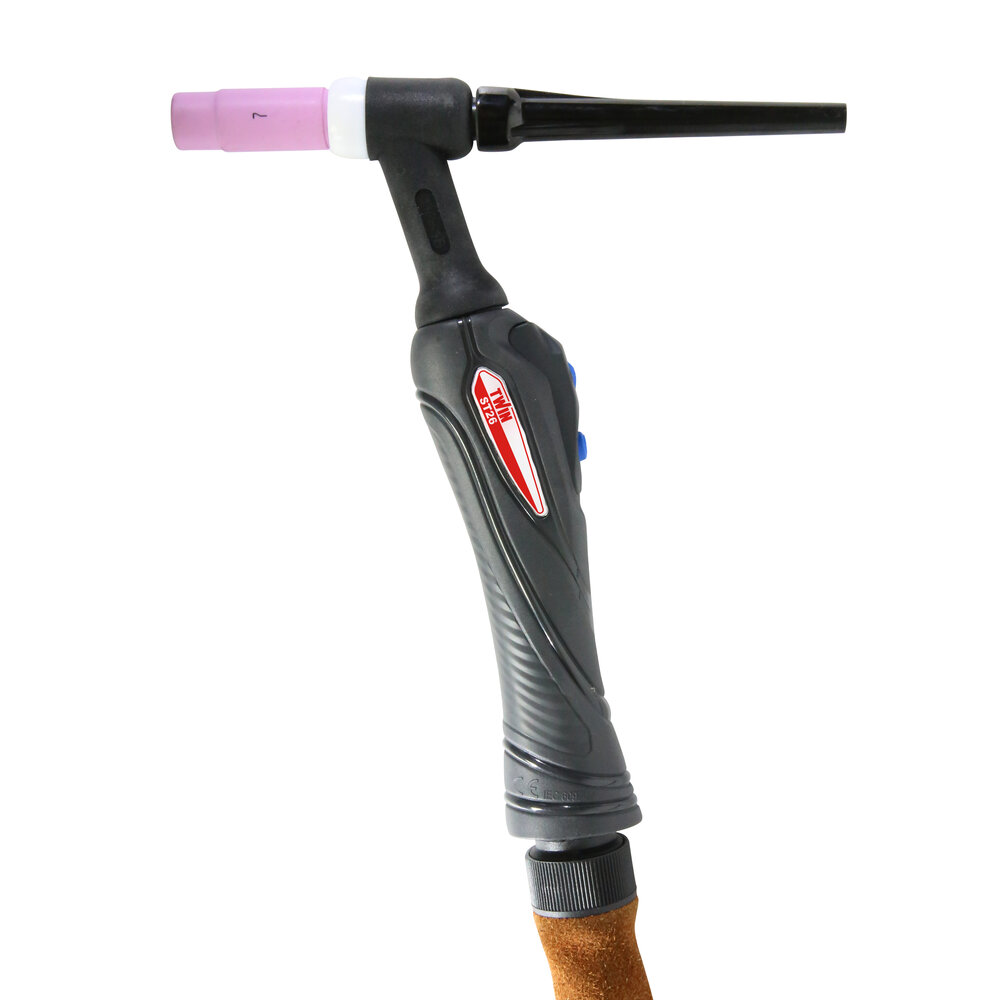

TIG welding torch ST26 PRO-P, air cooled with 8-metre cable with 8-pin control connector. Gas adjustment takes place via wheel potentiometer. The torch can work with maximum current 180 DC and 125A AC (@35%). Gas connector type G 3/8. With 2.4 mm DC electrode and relevant consumables.

The PRO series TIG torches are designed to enhance performance, efficiency, and comfort during welding operations.

Features
  • Robust and ergonomic handle, maintaining optimal balance across diverse operational circumstances.
  • The spherical joint streamlines movements in various directions with minimal effort, offering additional protection to the control cable, preventing folds and wear, thereby enhancing reliability and long-term durability.
  • The leather cable protection is crafted for flexibility and outstanding resistance to abrasion.
  • PRO-P: Wheel Potentiometer

CODE

743035

COOLING DOWN

AIR

CABLE LENGHT

8 m

CABLE SECTION

25 mm²

MAX. CURRENT

180A DC / 125A AC @35% A

CONNECTION

AX50

GAS CONNECTOR

G 3/8

CONTROL

8 pin

REMOTE CONTROL

Yes ( Potentiometer 1KOhm )

STANDARD

EN 60974-7

DIMENSIONS

385x300x75 mm

WEIGHT

5,000 kg

Catalog Image

Download IMG

TIG welding torch ST26 PRO-P, air cooled with 8-metre cable with 8-pin control connector. Gas adjustment takes place via wheel potentiometer. The torch can work with maximum current 180 DC and 125A AC (@35%). Gas connector type G 3/8. With 2.4 mm DC electrode and relevant consumables.

The PRO series TIG torches are designed to enhance performance, efficiency, and comfort during welding operations.

Features
  • Robust and ergonomic handle, maintaining optimal balance across diverse operational circumstances.
  • The spherical joint streamlines movements in various directions with minimal effort, offering additional protection to the control cable, preventing folds and wear, thereby enhancing reliability and long-term durability.
  • The leather cable protection is crafted for flexibility and outstanding resistance to abrasion.
  • PRO-P: Wheel Potentiometer

CODE

743035

COOLING

AIR

CABLE LENGTH

8 m

T04050

25 mm²

MAX CURRENT

180A DC / 125A AC @35% A

T04055

AX50

T04056

G 3/8

T04057

8 pin

T04053

Yes ( Potentiometer 1KOhm )

STANDARD

EN 60974-7

DIMENSIONS

385x300x75 mm

WEIGHT

5,000 kg

Catalog Image

Download IMG

TIG CONSUMABLES BOXES

CONSUMABLES BOX FOR TIG TORCH ST17-26

804138
TIG CONSUMABLES

KIT 10 PURE TUNGSTEN ELECTR. D.3,2 MM

802237

KIT 10 PURE TUNGSTEN ELECTR. D. 4 MM

802238

ELECTRODE DIFFUSERS Ø 1 MM 3 PCS

802249

ELECTRODE DIFFUSERS Ø 1,6 MM 3 PCS

802250

ELECTRODE DIFFUSERS Ø 2,4 MM 3 PCS

802251

ELECTRODE DIFFUSERS Ø 4 MM 3 PCS

802253

KIT 3 ELECTRODE HOLDER CLAMPS D.3,2 MM

802242

KIT 3 ELECTRODE HOLDER CLAMPS D.4 MM

802243

KIT 10 CERAMIC NOZZLES NR.4

802244

KIT 10 CERAMIC NOZZLES NR.6

802245

KIT 10 CERAMIC NOZZLES NR.7

802246

KIT 10 CERAMIC NOZZLES NR.8

802247

SHORT CAP ST17-26

722192

LONG CAP

722193
SPECIAL TIG CONSUMABLES

CRYSTAL CHAMPAGNE BOX D. 1,6 MM

804202

CRYSTAL CLEAR CUP - LONG - BOX D. 1,6 MM

804206

CRYSTAL CHAMPAGNE BOX D. 2,4 MM

804203

CRYSTAL CLEAR CUP - LONG - BOX D. 2,4 MM

804207

CRYSTAL CLEAR CUP - BOX D. 2,4 MM

804205

CRYSTAL CLEAR CUP - BOX D. 1,6 MM

804204
BLISTER ACCESSORIES

TIG TORCH MAGNETIC HOLDER

804127
