ST18A TIG TORCH AX50 4M AQUA

ST18A TIG TORCH AX50 4M AQUA

Download PDF Request Info

TIG torch ST18A with 4m.cable.
AX50 connector, 5-pin control cable, G 3/8 gas connector.
Button control.
Water cooling.
Max current 320A DC / 225A AC @35%.

TIG torch ST18A with 4m.cable.
AX50 connector, 5-pin control cable, G 3/8 gas connector.
Button control.
Water cooling.
Max current 320A DC / 225A AC @35%.

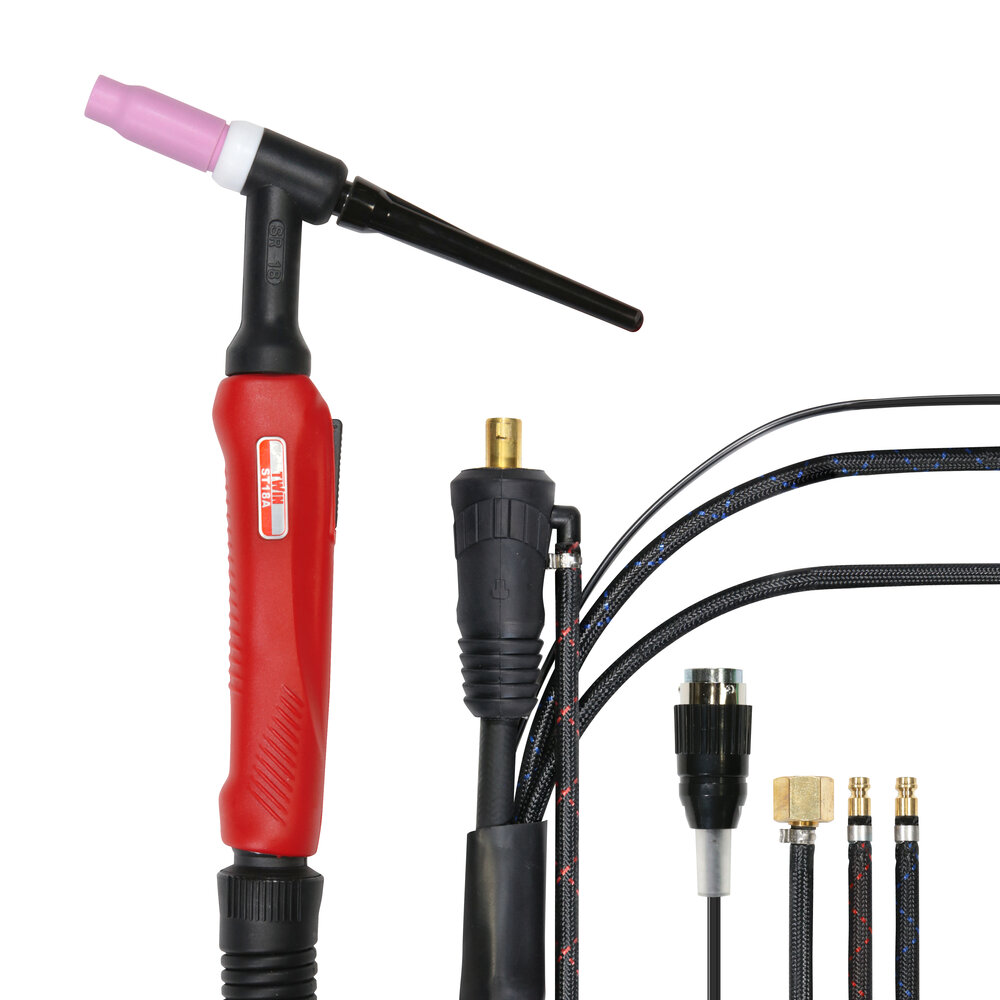

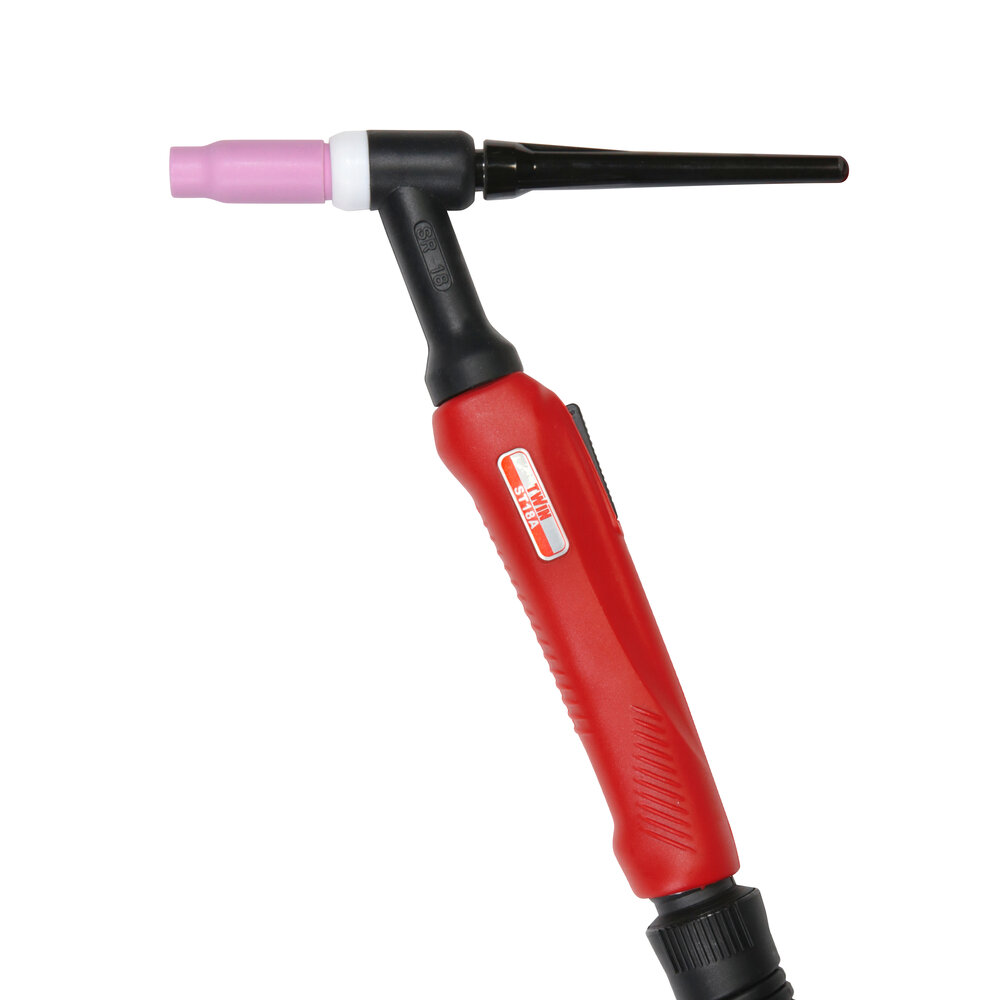

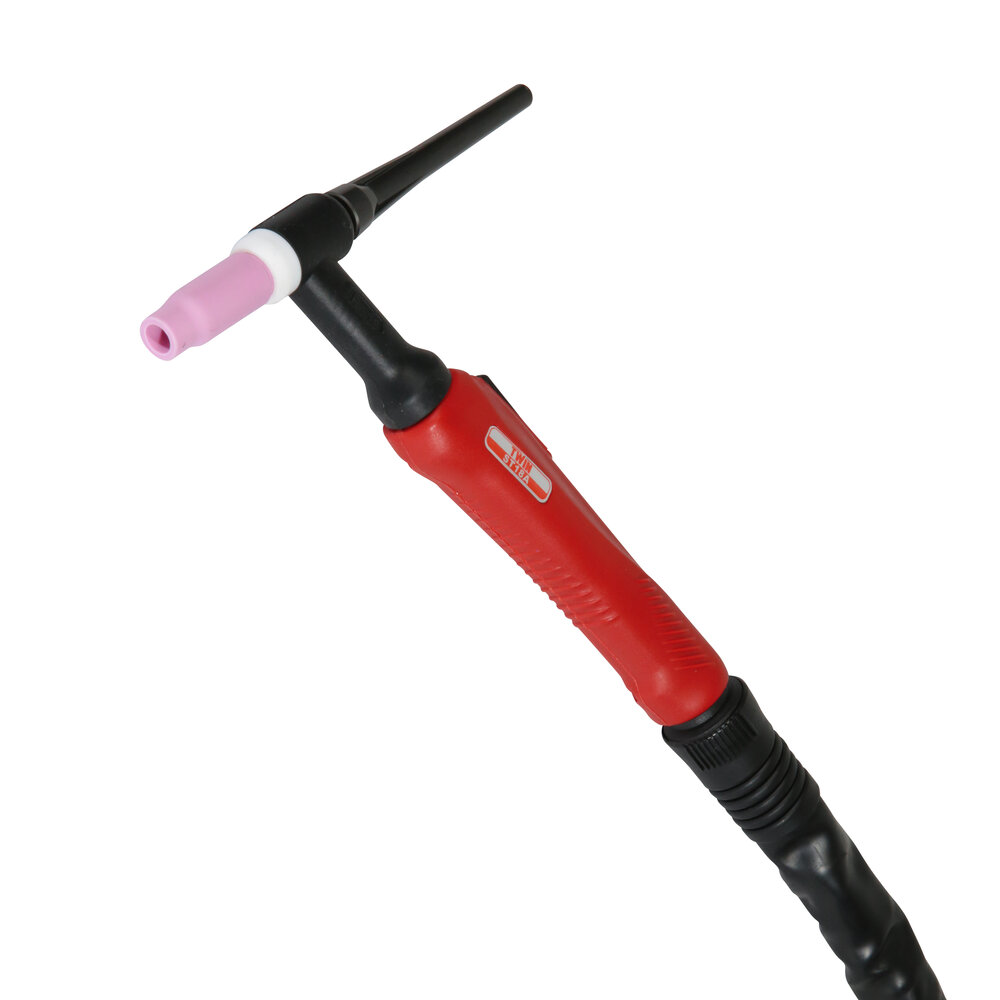

TIG welding torch ST18A, water cooled with 4-metre cable with 5-pin control connector. Gas adjustment takes place via the button on the handle. The torch can work with maximum current 320A DC and 225A AC (@35%). Gas connector type G 3/8. With 2.4 mm DC electrode and relevant consumables.

CODE

742615

COOLING DOWN

LIQUID

CABLE LENGHT

4 m

CABLE SECTION

8 mm²

MAX. CURRENT

320A DC / 225A AC @100% A

CONNECTION

AX50

GAS CONNECTOR

G 3/8

CONTROL

5 pin

REMOTE CONTROL

no

STANDARD

EN 60974-7

DIMENSIONS

370x315x75 mm

WEIGHT

2,720 kg

Catalog Image

TIG CONSUMABLES BOXES

CONSUMABLES BOX FOR TIG TORCH ST17-26

TIG CONSUMABLES

KIT 10 PURE TUNGSTEN ELECTR. D.3,2 MM

KIT 10 PURE TUNGSTEN ELECTR. D. 4 MM

ELECTRODE DIFFUSERS Ø 1,6 MM 3 PCS

ELECTRODE DIFFUSERS Ø 2,4 MM 3 PCS

ELECTRODE DIFFUSERS Ø 4 MM 3 PCS

KIT 3 ELECTRODE HOLDER CLAMPS D.3,2 MM

KIT 3 ELECTRODE HOLDER CLAMPS D.4 MM

KIT 10 CERAMIC NOZZLES NR.6

KIT 10 CERAMIC NOZZLES NR.7

KIT 10 CERAMIC NOZZLES NR.8

SHORT CAP ST17-26

LONG CAP

SPECIAL TIG CONSUMABLES

CRYSTAL CHAMPAGNE BOX D. 1,6 MM

CRYSTAL CLEAR CUP - LONG - BOX D. 1,6 MM

CRYSTAL CHAMPAGNE BOX D. 2,4 MM

CRYSTAL CLEAR CUP - LONG - BOX D. 2,4 MM

CRYSTAL CLEAR CUP - BOX D. 2,4 MM

CRYSTAL CLEAR CUP - BOX D. 1,6 MM

BLISTER ACCESSORIES

TIG TORCH MAGNETIC HOLDER

TIG welding torch ST18A, water cooled with 4-metre cable with 5-pin control connector. Gas adjustment takes place via the button on the handle. The torch can work with maximum current 320A DC and 225A AC (@35%). Gas connector type G 3/8. With 2.4 mm DC electrode and relevant consumables.

CODE

742615

COOLING

LIQUID

CABLE LENGTH

4 m

T04050

8 mm²

MAX CURRENT

320A DC / 225A AC @100% A

T04055

AX50

T04056

G 3/8

T04057

5 pin

T04053

no

STANDARD

EN 60974-7

DIMENSIONS

370x315x75 mm

WEIGHT

2,720 kg

Catalog Image

TIG CONSUMABLES BOXES

CONSUMABLES BOX FOR TIG TORCH ST17-26

804138

TIG CONSUMABLES

KIT 10 PURE TUNGSTEN ELECTR. D.3,2 MM

802237

KIT 10 PURE TUNGSTEN ELECTR. D. 4 MM

802238

ELECTRODE DIFFUSERS Ø 1,6 MM 3 PCS

802250

ELECTRODE DIFFUSERS Ø 2,4 MM 3 PCS

802251

ELECTRODE DIFFUSERS Ø 4 MM 3 PCS

802253

KIT 3 ELECTRODE HOLDER CLAMPS D.3,2 MM

802242

KIT 3 ELECTRODE HOLDER CLAMPS D.4 MM

802243

KIT 10 CERAMIC NOZZLES NR.6

802245

KIT 10 CERAMIC NOZZLES NR.7

802246

KIT 10 CERAMIC NOZZLES NR.8

802247

SHORT CAP ST17-26

722192

LONG CAP

722193

SPECIAL TIG CONSUMABLES

CRYSTAL CHAMPAGNE BOX D. 1,6 MM

804202

CRYSTAL CLEAR CUP - LONG - BOX D. 1,6 MM

804206

CRYSTAL CHAMPAGNE BOX D. 2,4 MM

804203

CRYSTAL CLEAR CUP - LONG - BOX D. 2,4 MM

804207

CRYSTAL CLEAR CUP - BOX D. 2,4 MM

804205

CRYSTAL CLEAR CUP - BOX D. 1,6 MM

804204

BLISTER ACCESSORIES

TIG TORCH MAGNETIC HOLDER

804127
