ADVANCE 227 XT MV/PFC VRD + ACC.

Download PDF Request Info

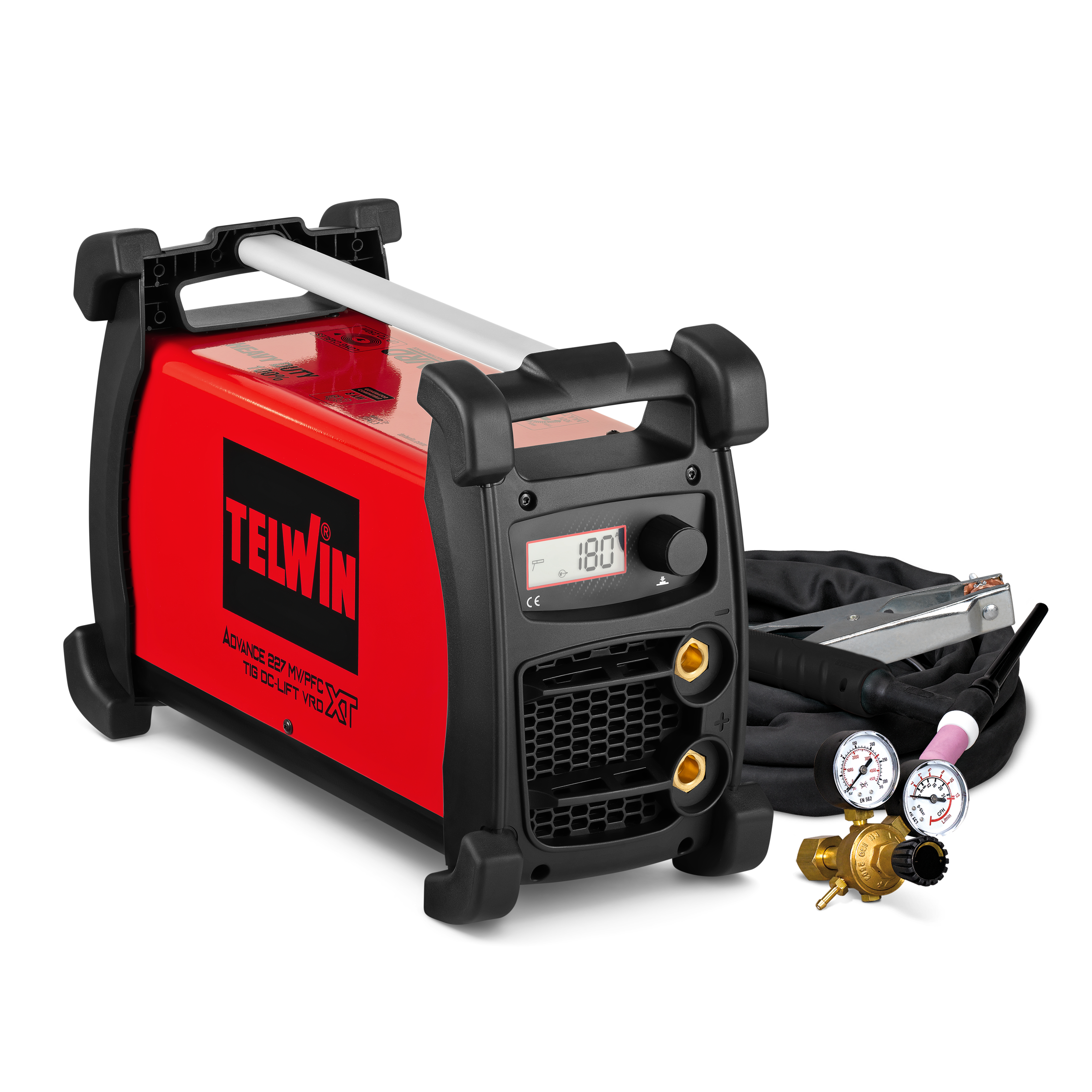

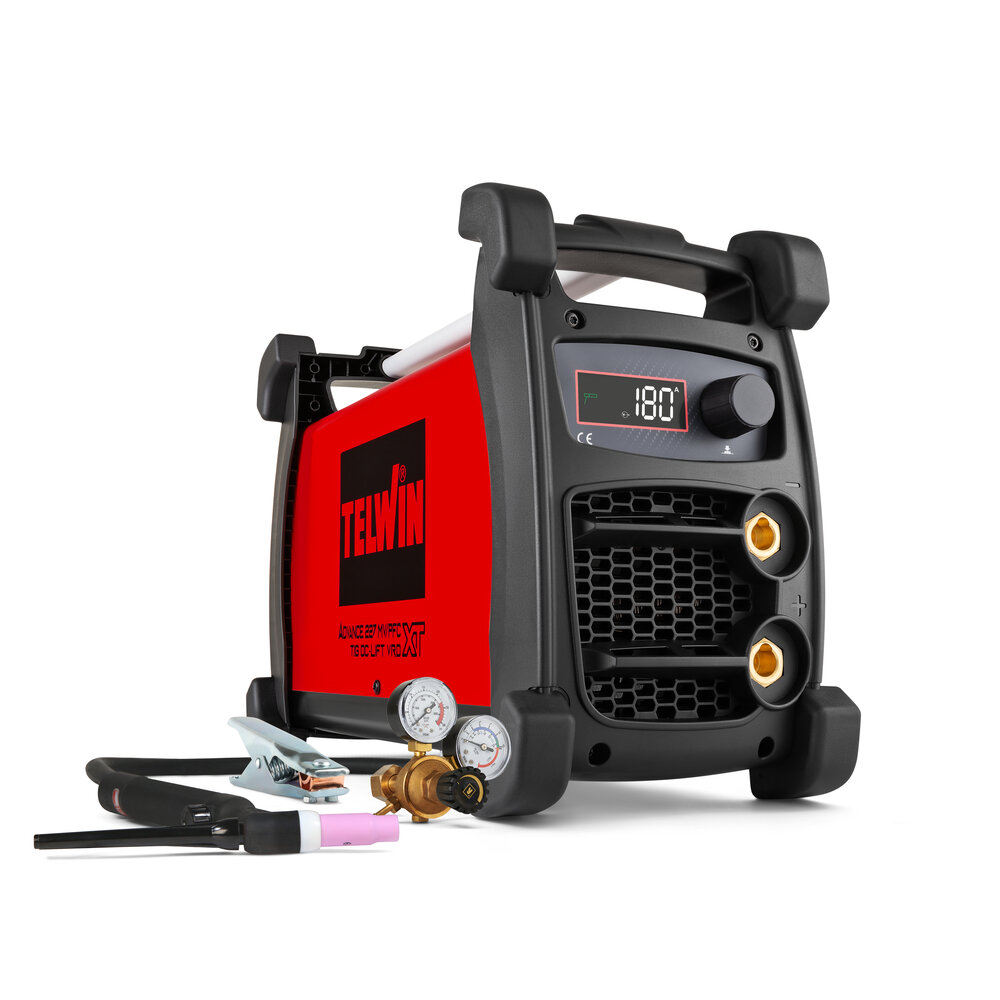

  • Direct current (DC) TIG (LIFT strike) and MMA electrode inverter welding machine, 200A, with LCD display. Strong structure and resistant to impact. With TIG welding accessories.
  • Multi-voltage: use with any variable power supply within a broad range (100÷240V) and operation with highly unstable and fluctuating voltages.
  • MV/PFC device: maximum performance also from residential lines with absorptions under 30% compared to welding machines with equal power.
  • Advanced arc control devices: arc force, hot start, anti-stick. Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 4 mm.
  • Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%). High stability of the welding current in power supply voltage variations.
  • Possible use with extensions up to 250m. With VRD (Voltage Reduction Device).
  • Quick connectors (socket) Ø 50 mm. Solid, metal handle. Compact and easy to transport. Contained consumption thanks to inverter technology.
  • Direct current (DC) TIG (LIFT strike) and MMA electrode inverter welding machine, 200A, with LCD display. Strong structure and resistant to impact. With TIG welding accessories.
  • Multi-voltage: use with any variable power supply within a broad range (100÷240V) and operation with highly unstable and fluctuating voltages.
  • MV/PFC device: maximum performance also from residential lines with absorptions under 30% compared to welding machines with equal power.
  • Advanced arc control devices: arc force, hot start, anti-stick. Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 4 mm.
  • Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%). High stability of the welding current in power supply voltage variations.
  • Possible use with extensions up to 250m. With VRD (Voltage Reduction Device).
  • Quick connectors (socket) Ø 50 mm. Solid, metal handle. Compact and easy to transport. Contained consumption thanks to inverter technology.
MMA and TIG (LIFT striking) inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
Multivoltage: use with a large range (100÷240V)of variable power supply, operations even when power supplies are fluctuating and unstable.
MV/PFC device: guarantees maximum performance even from domestic lines with 30% drop in absorptions compared to other welding machines of equal power.
VRD device: ireduces the output voltage to a safe level when the welding machine is on but not under welding conditions, guaranteeing the safety of the operator who can come into contact with the electrode without risk until welding resumes. (for use in damp environment such as mines or shipyards, etc.).
Features:
  • robust and impact resistant;
  • compact and light;
  • Ø 50mm quick connector;
  • LCD display for visualisation of welding current;
  • MMA regulations: arc force and hot start;
  • MMA electrodes: rutile, basic, stainless steel and cast iron;
  • use of extension cables up to 250m;
  • Thermostatic, overcurrent, overvoltage, undervoltage, motorgenerator (+/-15%) protections.
Complete with TIG welding accessories.

CODE

852060

SINGLE PHASE MAINS VOLTAGE

100-120 / 200-240 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 120(150) / 10 - 200 A

MAX CURRENT

120 @ 30%(150 @ 30%) / 200 @ 30% A

CURRENT 35% DC

110(140) / 160 A

DC CURRENT

95(125) / 125(135) A

MAX NO LOAD VOLTAGE

81 V

MAX ABSORBED CURRENT

33(25) / 27(19) A

ABSORBED CURRENT AT 60%

24(20) / 16,5(11) A

MAX ABSORBED POWER

3,1(2,4) / 5,2(3,6) kW

ABSORBED POWER AT 60%

2,3(1,9) / 3,2(2,1) kW

MOTORGENERATOR MINIMUM POWER

5 / 8 kW

EFFICIENCY

84 %

POWER FACTOR

0,98

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS

45 x 18,1 x 29,2 cm

WEIGHT

11,8 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

MMA and TIG (LIFT striking) inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
Multivoltage: use with a large range (100÷240V)of variable power supply, operations even when power supplies are fluctuating and unstable.
MV/PFC device: guarantees maximum performance even from domestic lines with 30% drop in absorptions compared to other welding machines of equal power.
VRD device: ireduces the output voltage to a safe level when the welding machine is on but not under welding conditions, guaranteeing the safety of the operator who can come into contact with the electrode without risk until welding resumes. (for use in damp environment such as mines or shipyards, etc.).
Features:
  • robust and impact resistant;
  • compact and light;
  • Ø 50mm quick connector;
  • LCD display for visualisation of welding current;
  • MMA regulations: arc force and hot start;
  • MMA electrodes: rutile, basic, stainless steel and cast iron;
  • use of extension cables up to 250m;
  • Thermostatic, overcurrent, overvoltage, undervoltage, motorgenerator (+/-15%) protections.
Complete with TIG welding accessories.

CODE

852060

SINGLEPHASE MAINS VOLTAGE

100-120 / 200-240 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

10 - 120(150) / 10 - 200 A

MAX CURRENT DC EN60974-1

120 @ 30%(150 @ 30%) / 200 @ 30% A

CURRENT 35% DC

110(140) / 160 A

DC CURRENT AT 60%

95(125) / 125(135) A

MAX NO LOAD VOLTAGE IN DC

81 V

MAX ABSORBED CURRENT

33(25) / 27(19) A

ABSORBED CURRENT AT 60%

24(20) / 16,5(11) A

MAX ABSORBED POWER

3,1(2,4) / 5,2(3,6) kW

ABSORBED POWER AT 60%

2,3(1,9) / 3,2(2,1) kW

MOTORGENER. MINIMUM POWER

5 / 8 kW

EFFICIENCY

84 %

POWER FACTOR(cosphi) (cosphi)

0,98

D.USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

45 x 18,1 x 29,2 cm

WEIGHT

11,8 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

TIG WELDING KIT - ST26V

802491

ADVANCE 227 XT MV/PFC VRD

816049

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 25MMQ 4M AX50

804123
BOXED ELECTRODES

RUTILE ELECTRODES D. 2 MM 2,5 KG

802737

RUTILE ELECTRODES D. 2,5 MM 2,5 KG

802739

RUTILE ELECTRODES D. 3,2 MM 4 KG

802749

GAMMA XT

IL LATO "EXTREME" DELLA SALDATURA

scopri di più

MV/PFC: POWER FACTOR CORRECTION

The MV/PFC technology helps increasing the efficiency of the power circuit by eliminating power losses. High yields with reduced consumption are achieved and large voltage fluctuations are compensated by maintaining a stable power supply to the electronic components of the products, thus guaranteeing optimal functioning in all conditions.

MV/PFC products connected to unstable power supply voltages or high impedance power lines maintain high efficiency and reliability; they can also work with electrical networks with nominal voltages from 100V up to 240V.
